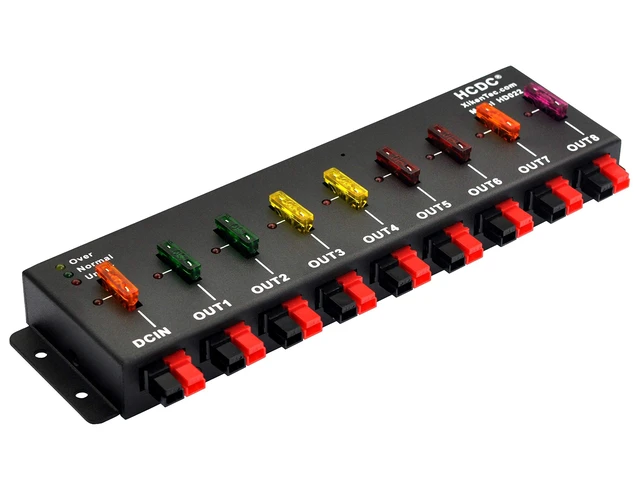

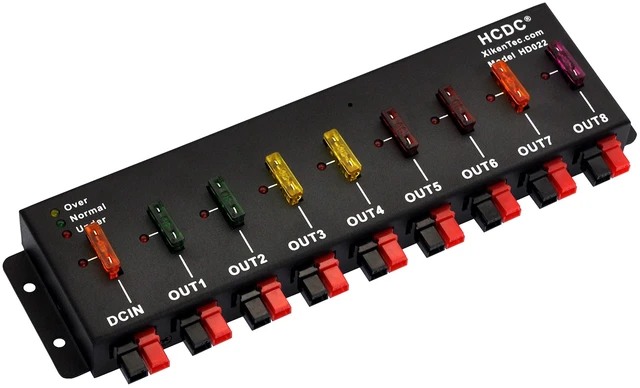

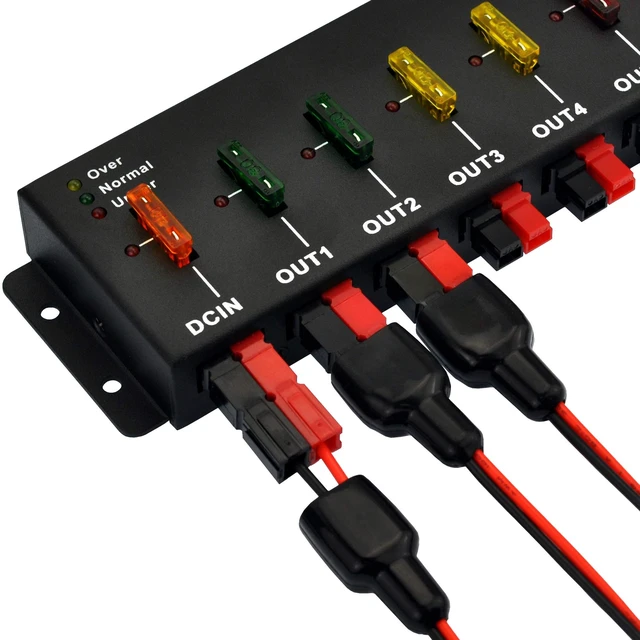

HCDC 1 in 8 Out 40A Connector DC Power Splitter Distributor Source Strip Module
- HCDC 1 In 8 Out 40A Connector DC Power Splitter Distributor Source Strip Module.

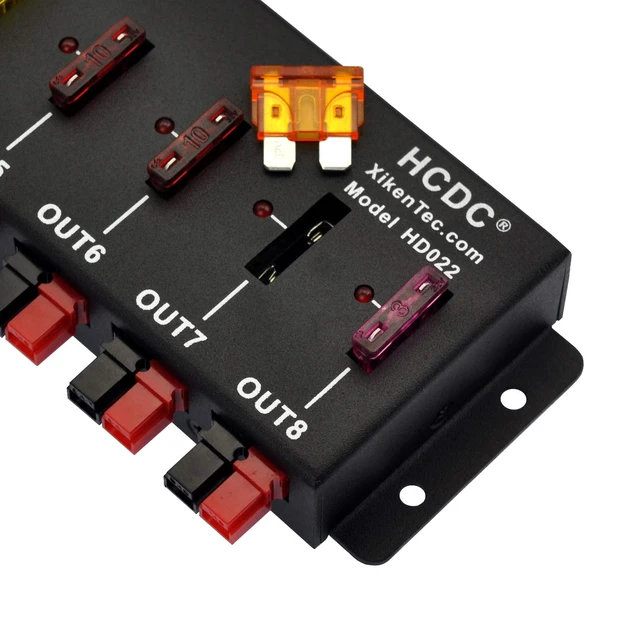

- Operating voltage: 6 to 20VDC, No-load current: 2.7mA(at 13.8V). Input port: maximum input current 40A, fuse 40A. Output port: 8 output ports, fuse 30A * 2, 20A * 2, 10A * 2, 5A * 1, 3A * 1. High-quality fuse holder, you can very easy to replace fuse from the outside, ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40A.
- LED over(15.0V) and under(11.5V) voltage indicators, and buzzer audio alarm for over voltage or under voltage. if you do not want to hear the alarm, you can open the aluminum case to remove the BUZZER-OPTION cap. with fault indicator LED for each fuse.

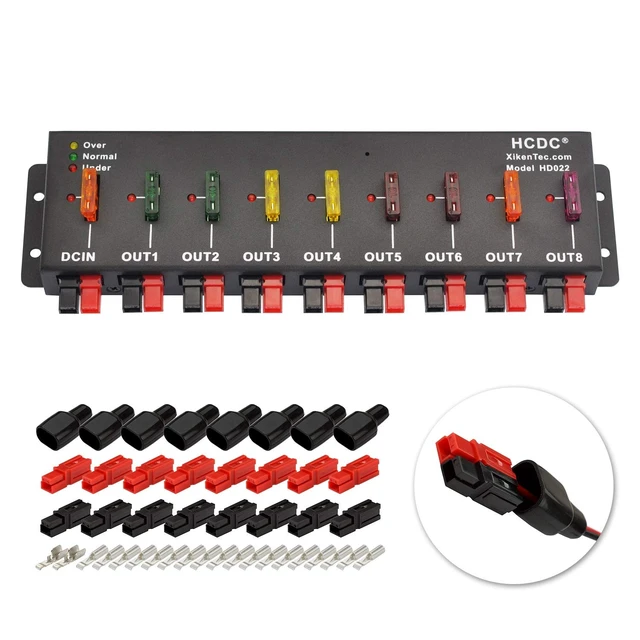

- Includes: 9 black power pole housings, 9 red power pole housings, 9 PVC cover flame retardant sleeve, 18 silver plated copper 30A 14-12AWG power pole contacts, 2x tinned copper 45A 12-10AWG power pole contacts.
- Overall Dimensions(maximum, w/o cables): L 233mm x W 73.5mm x H 30mm / 9.17"x2.89"x1.18", Alu
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
HCDC 1 In 8 Out 40A Connector DC Power Splitter Distributor Source Strip Module.
^^ Operating voltage: 6 to 20VDC, No-load
current: 2.7 mA(at 13.8V ).
Input port: maximum input current 40A, fuse 40A.
Output port: 8 output ports, fuse 30A * 2, 20A * 2, 10A * 2, 5A * 1, 3A *
1. High-quality fuse holder, you can very easy to replace fuse from the outside, ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40A. ^^ LED over( 15.0V ) and under( 11.5V ) voltage indicators, and buzzer audio alarm for over voltage or under voltage. if you do not want to hear the alarm, you can open the aluminum case to remove the BUZZER-OPTION cap. with fault indicator LED for each fuse.
^^ Includes: 9 black power pole housings, 9 red power pole housings, 9 PVC cover flame retardant sleeve, 18 silver plated copper 30A 14-12AWG power pole contacts, 2x tinned copper 45A 12-10AWG power pole contacts. ^^ Overall Dimensions(maximum, w/o
cables): L 233mm x W 73.5 mm x H 30mm / 9.17" x 2.89" x 1.18", Aluminum enclosure, thickness 1.5 mm/ 0.06".
^^ Operating voltage: 6 to 20VDC, No-load
current: 2.7 mA(at 13.8V ).
Input port: maximum input current 40A, fuse 40A.
Output port: 8 output ports, fuse 30A * 2, 20A * 2, 10A * 2, 5A * 1, 3A *
1. High-quality fuse holder, you can very easy to replace fuse from the outside, ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40A. ^^ LED over( 15.0V ) and under( 11.5V ) voltage indicators, and buzzer audio alarm for over voltage or under voltage. if you do not want to hear the alarm, you can open the aluminum case to remove the BUZZER-OPTION cap. with fault indicator LED for each fuse.
^^ Includes: 9 black power pole housings, 9 red power pole housings, 9 PVC cover flame retardant sleeve, 18 silver plated copper 30A 14-12AWG power pole contacts, 2x tinned copper 45A 12-10AWG power pole contacts. ^^ Overall Dimensions(maximum, w/o
cables): L 233mm x W 73.5 mm x H 30mm / 9.17" x 2.89" x 1.18", Aluminum enclosure, thickness 1.5 mm/ 0.06".
