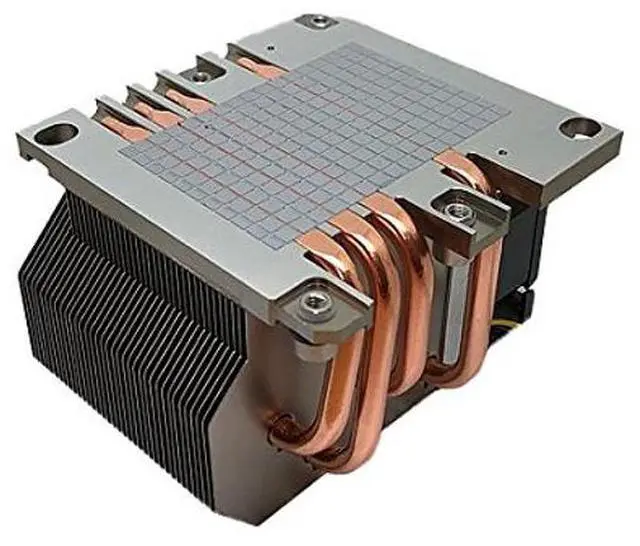

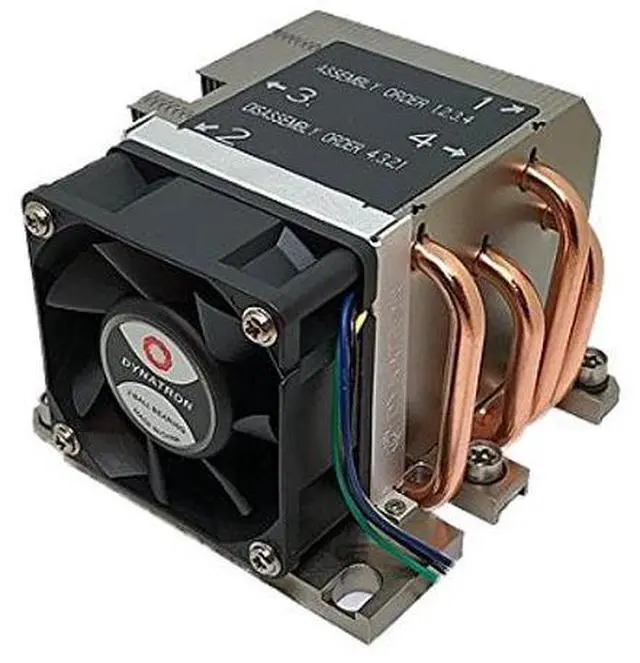

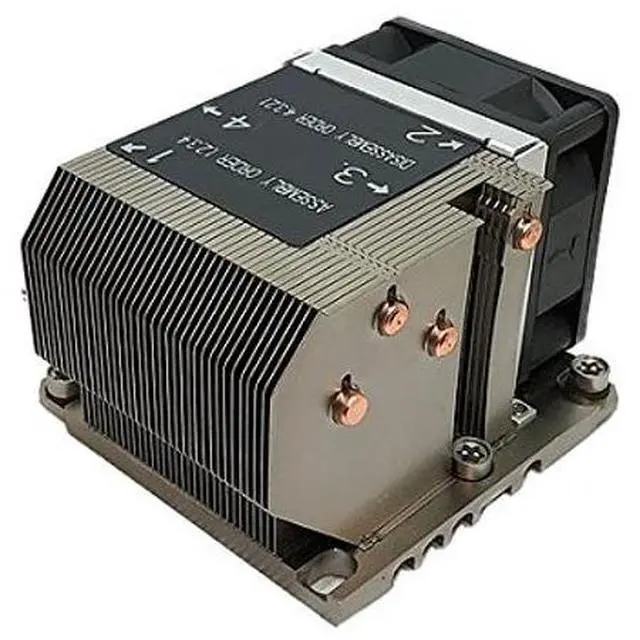

Dynatron B13 2U Active CPU Cooler

Dynatron B13 2U Active CPU Cooler

ntel Socket FCLGA3647 Square ILM 60x60x25mm PWM Fan Aluminum heatsink with heat pipe embedded for 2U Server up to CPU power 205 Watts

PRODUCT SPECIFICATIONS:
CPU Support: Intel CPU Socket: FCLGA3647
Solution: 2U Server and Up
Dimensions: 108.0 x 80.0 x 66.0 mm
Weight: 430 g
Material: Aluminum Heatsink with Heatpipe Embedded
Fan Dimension: 60 x 60 x 25 mm
Rated Voltage: 12V
Bearing: 2 Ball Bearing

Speed
At Duty Cycle 20%: 1400 ± 200 RPM
At Duty Cycle 3400 ± 10% RPM
At Duty Cycle 100%: 7000 ± 10% RPM

Power
At Duty Cycle 20%: 1400 ± 200 RPM
At Duty Cycle 3400 ± 10% RPM
At Duty Cycle 100%: 7000 ± 10% RPM

Power
At Duty Cycle 20%: 0.90 W
At Duty Cycle 50%: 2.04 W
At Duty Cycle 100%: 5.40 W

Air Flow
At Duty Cycle 20%: 8.12 CFM
At Duty Cycle 50%: 20.31 CFM
At Duty Cycle 100%: 40.60 CFM

Noise Level
At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 35 dBA
At Duty Cycle 100%: 50 dBA

Air Pressure
At Duty Cycle 20%: 0.58 mm-H2O
At Duty Cycle 50%: 3.65 mm-H2O
At Duty Cycle 100%: 14.58 mm-H2O

Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Thermal Grease: Shin-Etsu 7762 Pre-printed

CERTIFICATIONS: RoHS Compliant
