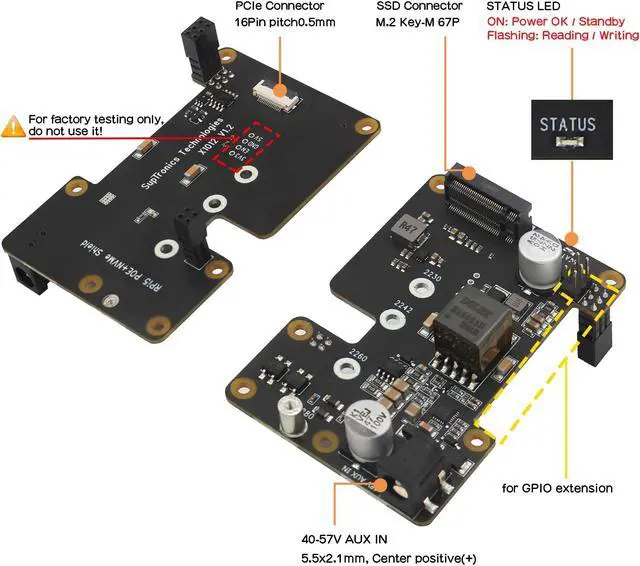

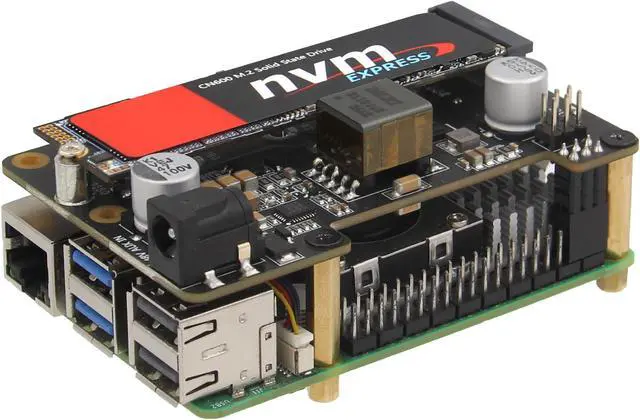

Geekworm X1012 PCIe to M.2 HAT Key-M NVMe SSD and POE Shield for Raspberry Pi 5 2GB/4GB/8GB/16GB Support M.2 2230/2242/2260/2280 SSD
- Compatibility: only compatible with Raspberry Pi 5 2GB/4GB/8GB/16GB SBC (NOT include Raspberry Pi 5), Model: X1012
- PoE Supported: Power over Ethernet and compatible with 802.3af/at specifications

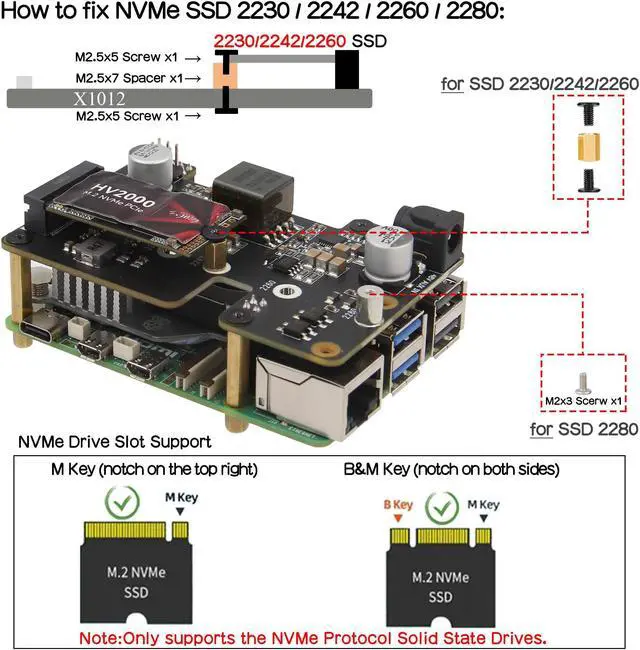

- M2 Key-M NVMe SSD Supported: Support M.2 KEY-M NVMe SSD 2230/2242/2260/2280 length installation; Comes with M2.5 x 7 mm F/F standoff for 2230/2242/2260 SSD installation

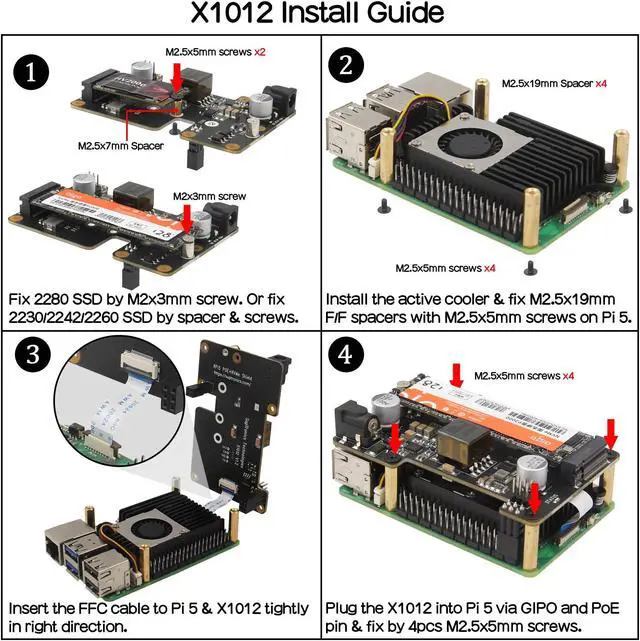

- User Manual: Google Geekworm Wiki and search X1012 and refer to the Configuration Tutorial
- How to Power: 35-57VDC powering over Ethernet or 40-57Vdc via Auxiliary power jack
- Packing List: 1 x X1012 NVMe+POE shield, 2 x PCIe FFC Cale, 10 x M2.5 x 5 mm screws, 4 x M2.5 x 19 mm F/F Spacers, 1 x M2.5 x 7 mm F/F Spacer , 1 x CM2 x 3 mm screw
- Matching Case P579: X1012 is compatible with P579-V2 case, but the case doesn't reserved port for the DC power of X1012. Because X1012 support POE, and DC jack is just an auxiliary power jack that non-essential
+
+
