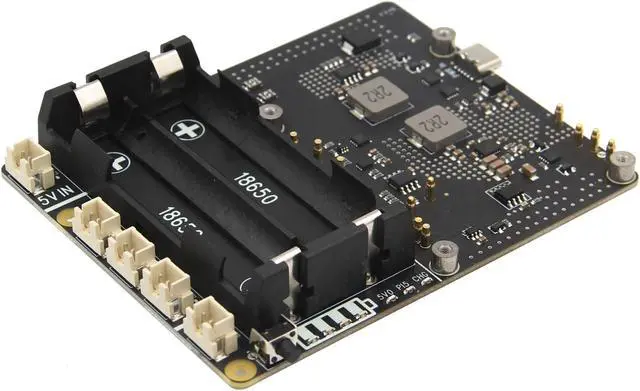

Geekworm X1201 Ultra-Thin 5V UPS Shield for Raspberry Pi 5 |Max 5.1V 5A Output| Auto Power On|Safe Shutdown|Power Loss Detection
- Compatibility: Pi 5 UPS compatible with Raspberry Pi 5 8GB/4GB SBC; Model: X1201; Matching metal case is X1201-C1
- Function: X1201 provides max 5.1V 5000mA Power Backup, intelligent and safe power management like auto power on, safe shutdown, full power-off from software, power loss and power adapter failure detection
- How to Power: Power via X1201 USB-C port: 5Vdc 5A via USB Type-C; Do not apply power to Raspberry Pi 5 via the Type-C USB socket

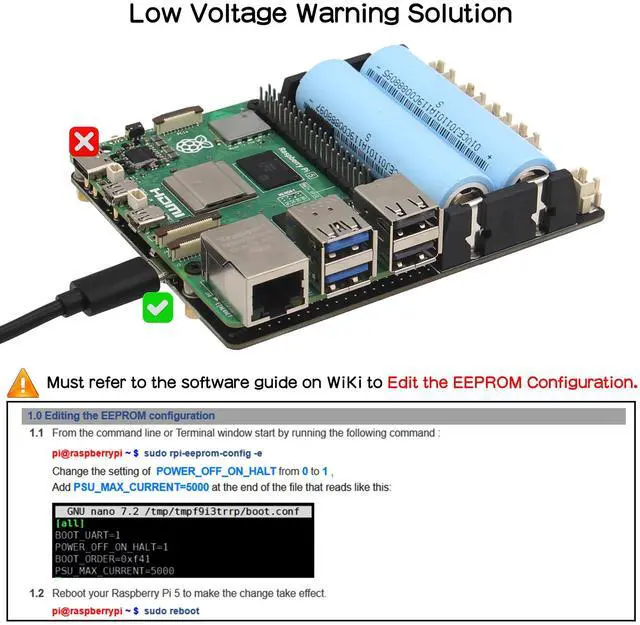

- User Manual and Low Voltage Warning Solution: Google Geekworm Wiki and search X1201; Refer to the software guide on X1201 WiKi to Edit the EEPROM configuration to solve the Low Voltage Warning issue

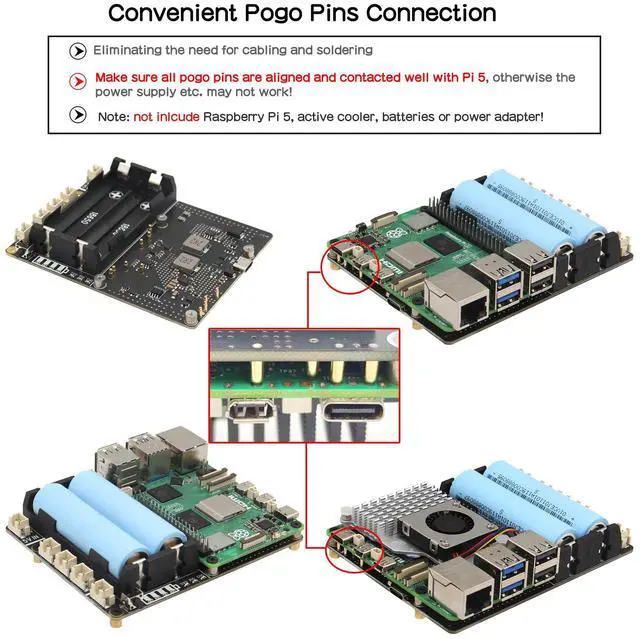

- Versatile and Ultra-thin Design: X1201 is designed to be attached on bottom, and expand the battery holders horizontally, which is ultra-thin and enabling easy stacking with other Raspberry Pi 5 accessory boards for enhanced applications

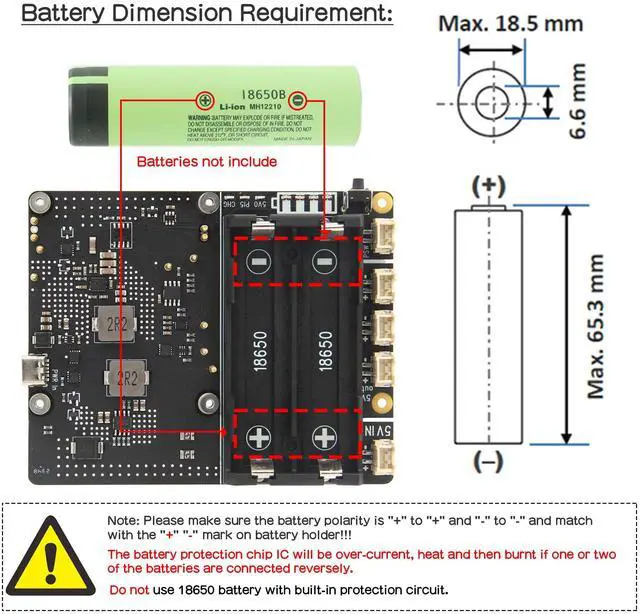

- 2-Cell Battery Supported: Battery length max 65.3mm, diameter max 18.5mm; NOT include batt
+
+
