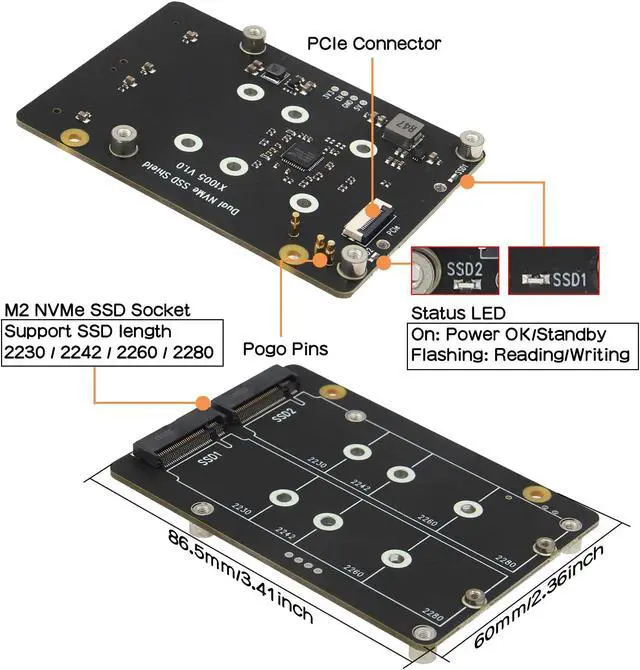

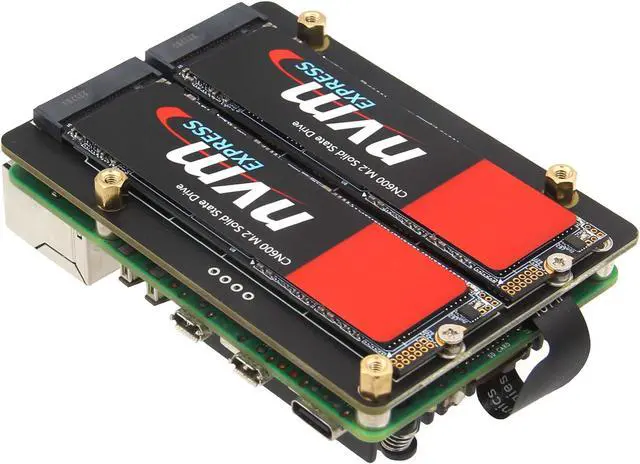

Geekworm X1005 PCIe to Bottom Dual M.2 HAT NVMe SSD PCIe Peripheral Board for Raspberry Pi 5 Support M.2 2230/2242/2260/2280 SSD
- Compatibility: Pi 5 Dual NVMe HAT only compatible with Raspberry Pi 5 2GB/4GB/8GB/16GB, Model: X1005; Supports NVMe boot with eeprom 2024/05/17 and later versions

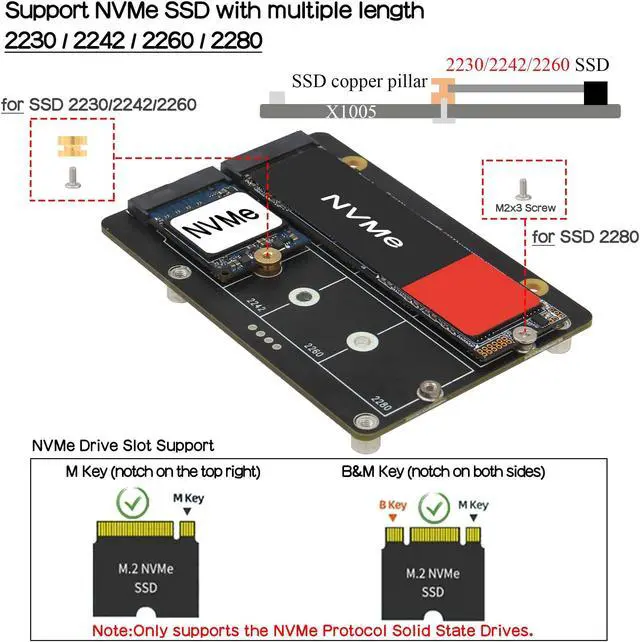

- Support Dual M2 Key-M NVMe SSD: Support 2 pcs M.2 KEY-M NVMe SSD 2230/2242/2260/2280 length installation; Comes with SSD copper pillar for 2230/2242/2260 SSD installation

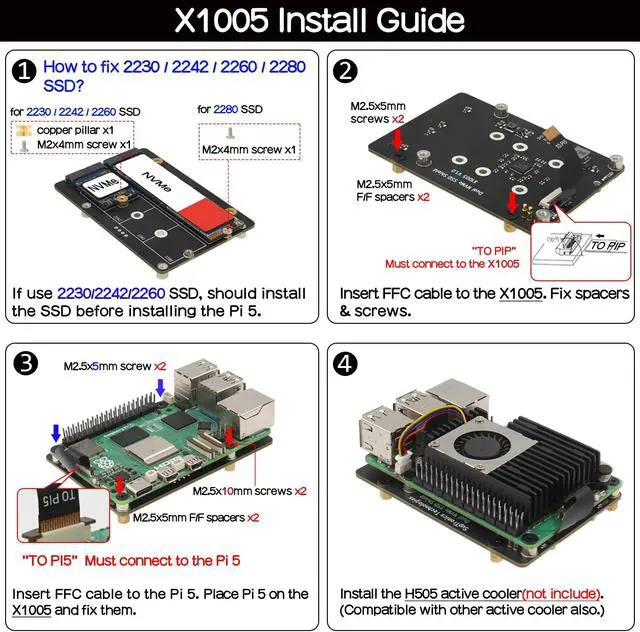

- User Manual: Google Geekworm Wiki and search X1005 for hardware installation guide, intallation video and software guide
- for Raspberry Pi 5 AI Hat Extension: Supports Hailo AI acceleration module built around the Hailo-8L chip from Raspberry Pi AI Kit
- How to Power: 5Vdc +/-5% power via GPIO pin header and FFC, converted to 3.3V max 3A to power the SSD; Use Geekworm PD 27W power adapter for Raspberry Pi 5
- Matching Case P580-V2: Refer to P580-V2, the P580 is not support X1005

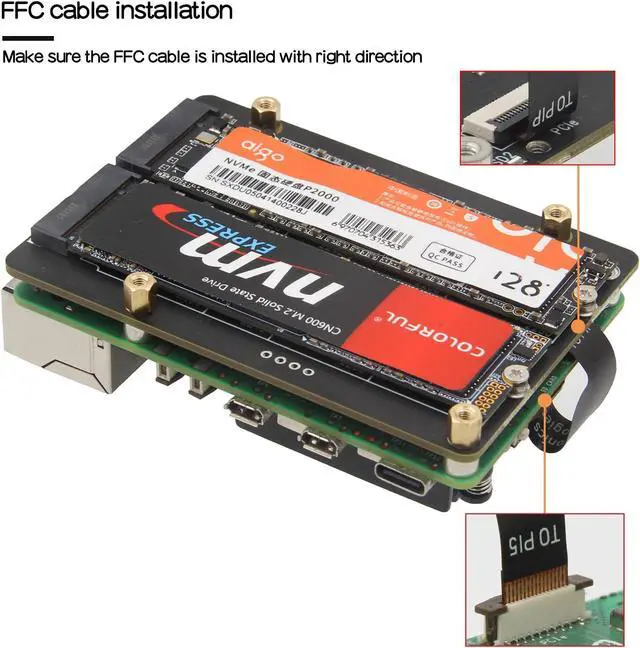

- Packing List: 1 x X1005 PCIe Peripheral Board, 2 x 37 mm PCIe FFC Cable, 4 x M2.5 x 5 mm F/F Spacers, 4 x M2.5 x 5 mm Screws, 2 x M2.5 x 10 mm Screws, 2 x SSD
+
+
