$88.99
Meet Your Seller

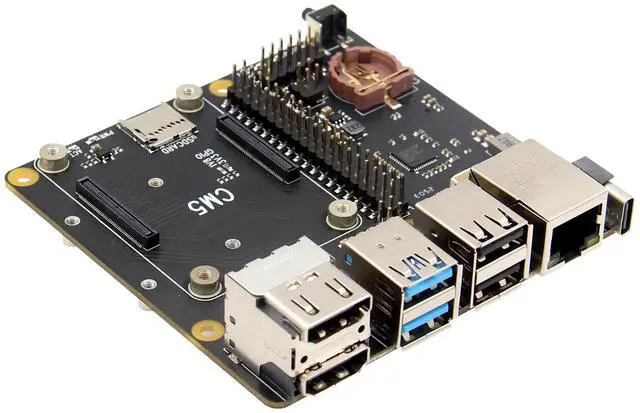

Geekworm X1500 CM5 IO Carrier Board for Raspberry Pi Compute Module 5 Support Dual M.2 NVMe SSD|1GbE Ethernet Port
- Compatibility: X1500 is compatible with Raspberry Pi Compute Module 5 CM5 and all CM5 variants; Model: X1501; Matching case is X1500-C1, cooler is C519
- User Manual: Google Geekworm WiKi and search X1500 to visit the user guide

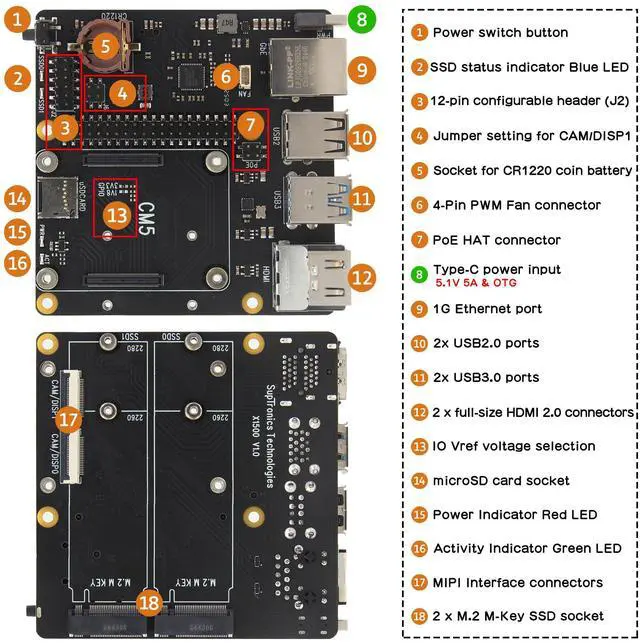

- Function: Support Dual M.2 NVMe SSD, with 1GbE Ethernet Ports, Dual USB 3.0 Ports, Dual Hdmi 2.0 Ports, Dual MIPI DSI/CSI-2 Connectors, RTC, PWM Fan connector and convenient power button
- How to Power: 5.1Vdc +/-5% 5A power via USB-C port of X1500; Please use high quality power supply capable of delivering 5.1V at 5A output, an incompatible power supply with a lower output voltage may fail to power on the system
- Extra Needed to Prepare: Raspberrry Pi CM5, high quality Power Adapter, M.2 NVMe SSD, micro-SD card(16GB), Case, CM5 heatsink etc

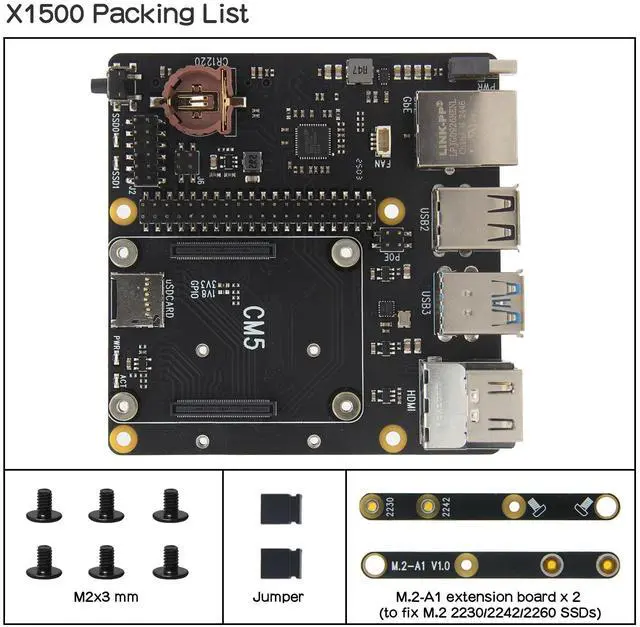

- Packing List: 1 x X1500 CM5 IO Carrier Board, 2 x M.2-A1 extension board, 2x 2.54mm jumer cap, 6 x M2x3mm screws
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Geekworm X1500 CM5 IO Carrier Board for Raspberry Pi Compute Module 5 Support Dual M. 2 NVMe SSD^^1GbE Ethernet Port
