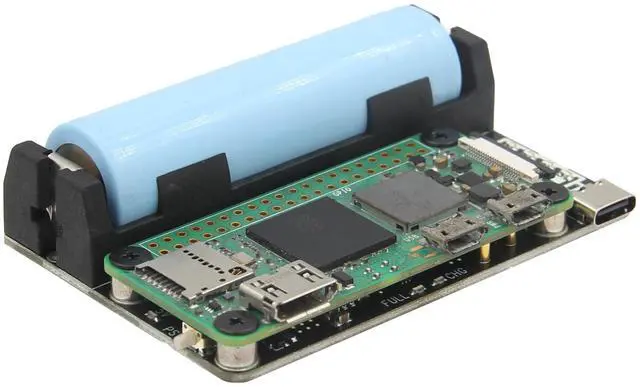

Geekworm X306 V1.5 UPS Expansion Board for Raspberry Pi Zero 2W (Not Include Raspberry Pi&Battery)
- Enhanced Battery Holder: X306 V1.5 (Oct 2025) upgrades the battery holder for smoother installation, removal, and long-lasting reliability
- Compatibility: Compatible with Raspberry Pi Zero 2 W ONLY, NOT support Raspberry Pi Zero/Zero W; Model: X306 V1.5; Matching Case: X306-C1 is the compatible case for X306 V1.3 and V1.5

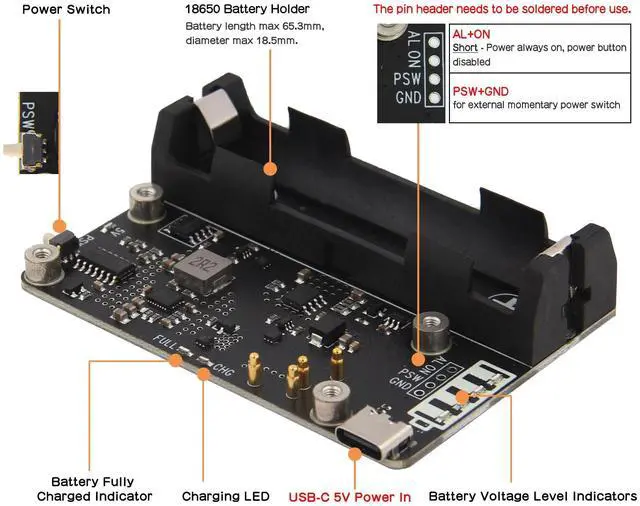

- One-Cell UPS HAT: Ideal Uninterruptible Power Supply (UPS) solution for Raspberry Pi Zero 2W, Max 5.1V 4000mA Power Backup with single cell battery holder
- How to Power: Power via USB Type-C 5V Power In port of X306; 5Vdc +/-5% , 3A; Use Geekworm UL listed 20W 5V 4A USB Type-C power adapter
- Cooling Solution: Recommend to use with C296 aluminum heatsink for Raspberry Pi Zero 2 W

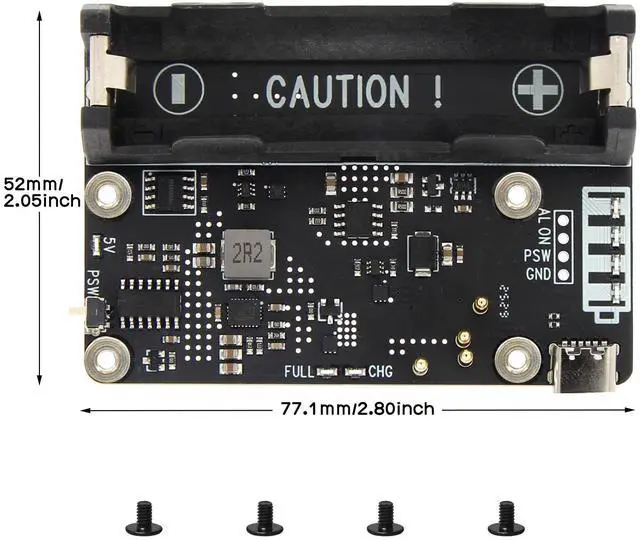

- Packing List: 1 x X306 V1.5 Expansion board; 4 x M2.5 x 5mm Screws
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Enhanced Battery Holder: X306 V 1.5 (Oct 2025) upgrades the battery holder for smoother installation, removal, and long-lasting reliability ^^
Compatibility: Compatible with Raspberry Pi Zero 2 W ONLY, NOT support Raspberry Pi Zero/Zero W;
Model: X306 V 1.5;
Matching Case: X306-C1 is the compatible case for X306 V 1.3 and V 1.5 ^^
One-Cell UPS HAT: Ideal Uninterruptible Power Supply (UPS) solution for Raspberry Pi Zero 2W, Max 5.1V 4000mA Power Backup with single cell battery holder ^^ How to
Power: Power via USB Type-C 5V Power In port of X306; 5Vdc +/-5%, 3A; Use Geekworm UL listed 20W 5V 4A USB Type-C power adapter ^^
Cooling Solution: Recommend to use with C296 aluminum heatsink for Raspberry Pi Zero 2 W ^^
Packing List: 1 x X306 V 1.5 Expansion board; 4 x M 2.5 x 5mm Screws
Compatibility: Compatible with Raspberry Pi Zero 2 W ONLY, NOT support Raspberry Pi Zero/Zero W;
Model: X306 V 1.5;
Matching Case: X306-C1 is the compatible case for X306 V 1.3 and V 1.5 ^^
One-Cell UPS HAT: Ideal Uninterruptible Power Supply (UPS) solution for Raspberry Pi Zero 2W, Max 5.1V 4000mA Power Backup with single cell battery holder ^^ How to
Power: Power via USB Type-C 5V Power In port of X306; 5Vdc +/-5%, 3A; Use Geekworm UL listed 20W 5V 4A USB Type-C power adapter ^^
Cooling Solution: Recommend to use with C296 aluminum heatsink for Raspberry Pi Zero 2 W ^^
Packing List: 1 x X306 V 1.5 Expansion board; 4 x M 2.5 x 5mm Screws
