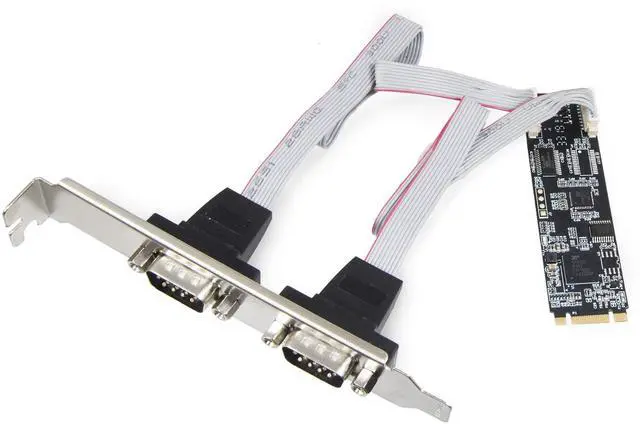

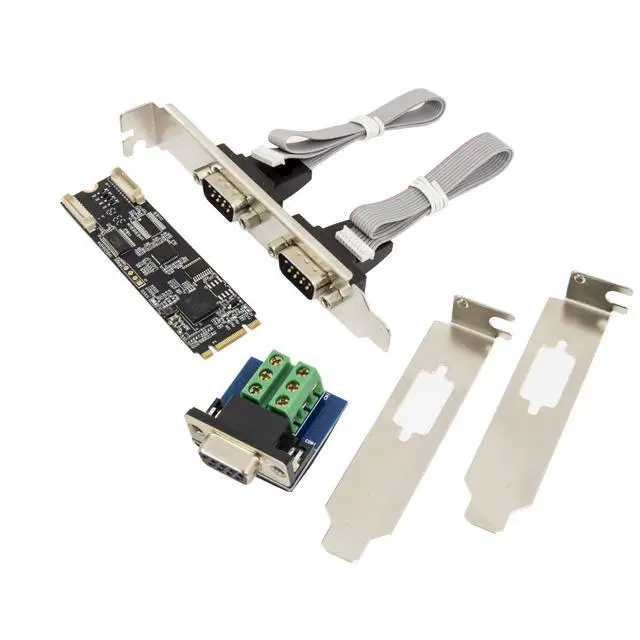

IO CREST 2 Port RS-232 DB9 Serial M.2 B+M Key Controller Card SI-ADA15070
- Data read/write 32-bit operation. Global interrupt status register for both UARTs. 16 multi-purpose inputs/outputs (MPIOs)
- Two independent UART channels controlled with bits per second data transfer rates from 300 baud to 921600baud. 16550 Compatible register set. 256-Byte TX and RX fifos

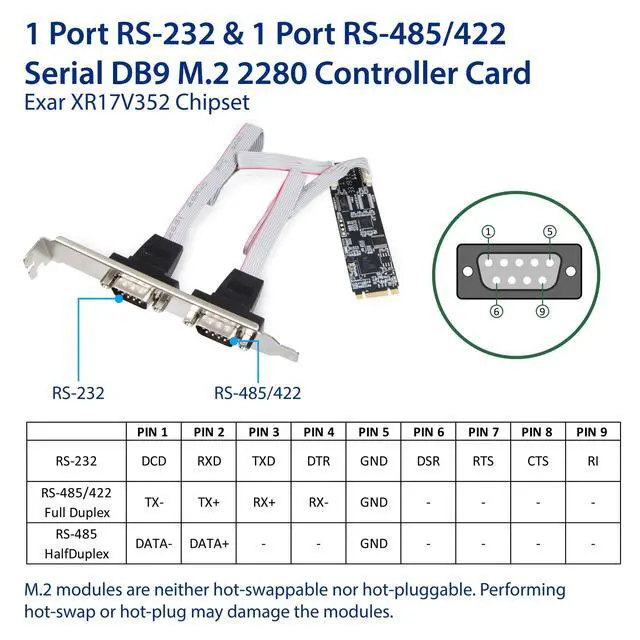

- RS232: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI. RS422: TX -, TX+, RX +, RX - GND RS485: data-, data +
- Data bits4, 5, 6, 7, 8. Stop bits1, 1. 5, 2. Parity bitOdd, even, mark, space, None. Flow control NoneXon / Xoff, Hardware.
- Operating Temperature-40C to +85c. Storage temperature: -65c to +150c
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The IOCrest SI-ADA15070 lets you add one RS-232 and RS-422/485 serial ports to your embedded computer thought a free M. 2 slot. To be used in applications such as serial Attached devices, serial networking/monitoring equipment, data acquisition system, POS terminal and industrial PC, add-on I/O cards-serial/USB, and embedded systems -for I/O expansion
