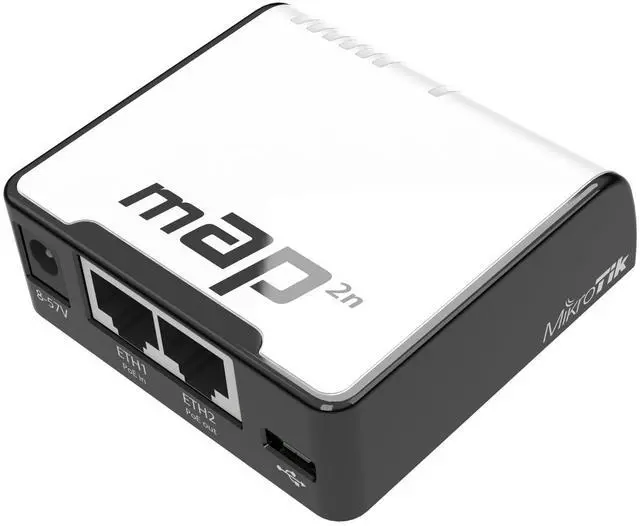

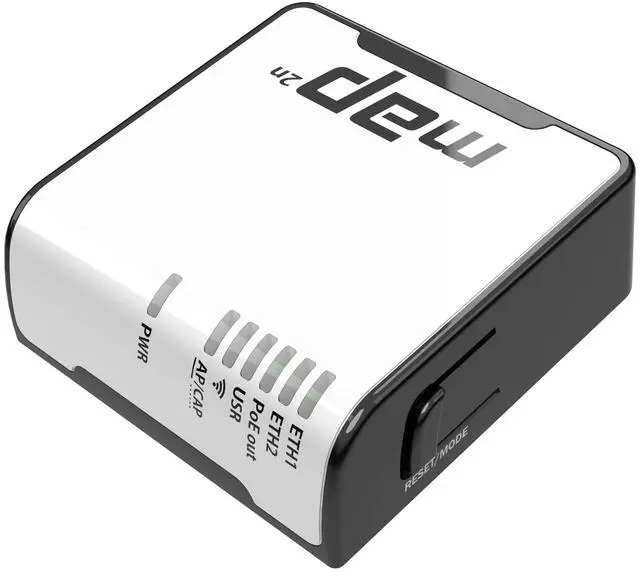

MikroTik RouterBOARD mAP 2n 2.4GHz Access Point

Model: RBmAP2nDMikrotik Wireless Dual-Chain 2.4GH z Micro Access PointThe mAP (micro Access Point) also known as RBmAP2nD is a tiny size wireless Dual-Chain 2.4GH z Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it. Technical DescriptionArchitecture MIPSBECPU QCA9531CPU core count 1CPU nominal frequency 650 MHzDimensions 68x68x19mmLicense level 4Operating System RouterOSSize of RAM 64 MBStorage size 16 MBStorage type FLASHTested ambient temperature -20C to 70CMicroUSB input Voltage 5-5 VPoE in 802.3 af/atPoE in input Voltage 12-57 VPoE out Passive PoEPoE-out ports Ether2Number of DC inputs 3 (PoE-IN, DC jack, MicroUSB)DC jack input Voltage 8-57 VMax out per port output (input <30 V) 0.5 AMax total out (A) 0.5 AMax power consumption 5 WWireless 2.4 GHz Max data rate 300 Mbit/sWireless 2.4 GHz number of chains 2Wireless 2.4 GHz standards 802.11 b/g/nAntenna gain dBi for 2.4 GHz 1.2W ireless 2.4 GHz chip model QCA9531Wireless 2.4 GHz generation Wi-Fi 410/100 Ethernet ports 2Number of USB ports 1USB Power Reset YesUSB slot type microUSB type ABMax USB current (A) 1PCB temperature monitor YesVoltage Monitor Yes
