Motherboards and BIOS MUST support bifurcation otherwise only first drive can be recognized.
It connects to M.2 NVMe SSD. can make full use of the low delay characteristic of PCIE to improve the speed of SSD and increase the number of M.2 interfaces of host.

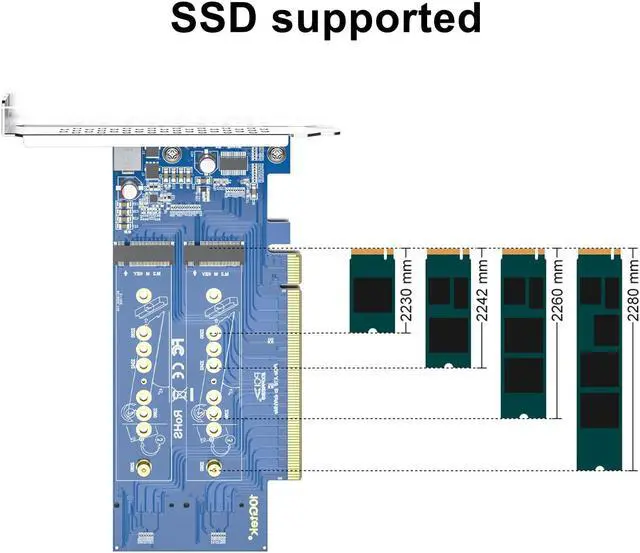

Supports PCIe M.2 SSDs (NVMe and AHCI): 2280 drives;Note: If only the two disk slots on the front or rear side are used, the disk sizes of 2230,2242, 2260, and 2280 can be supported.

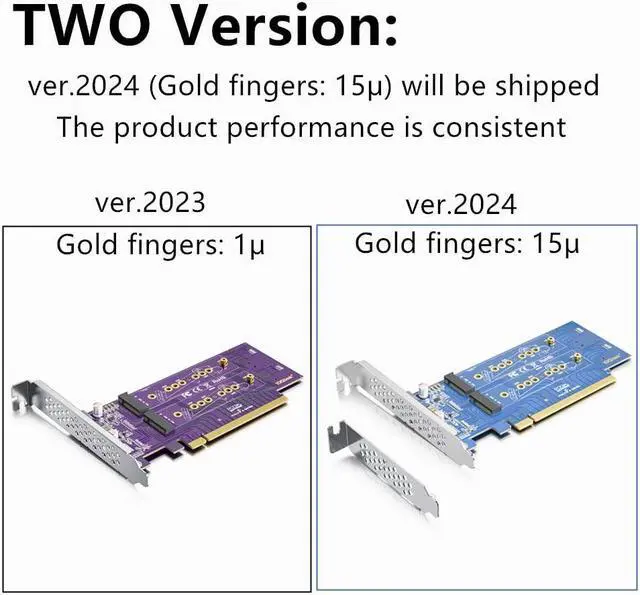

Gold fingers: 15m.

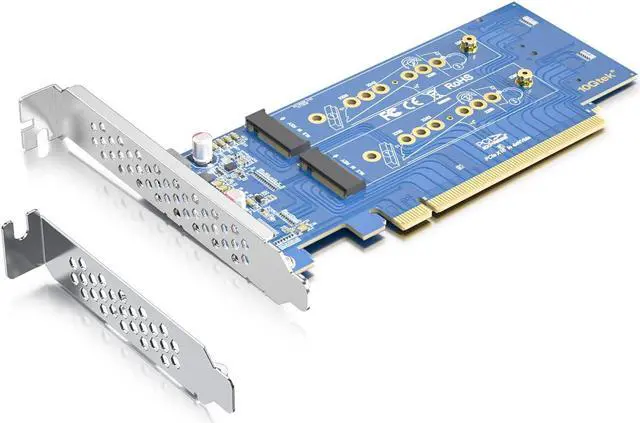

Full height and low profile bracket included. NOT support hot swaping.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PCIe 3.0 to NVMe (4) M. 2 Adapter for M. 2 (M Key) SSD, PCIe X16, Requires Motherboard BIOS Support for Bifurcation
Learn more about the Detailed Specifications
Additional Information
Date First Available
May 08, 2025
