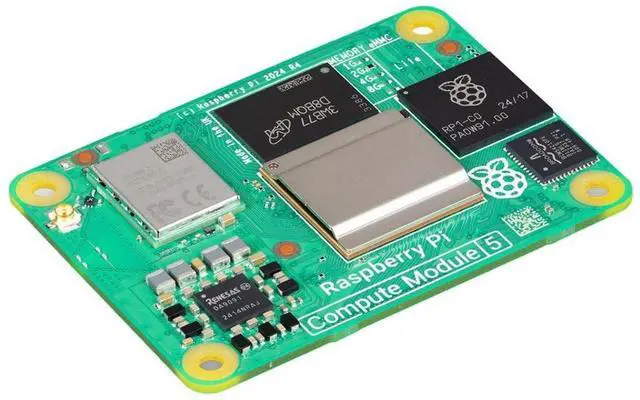

Raspberry Pi Compute Module 5, CM5116064, Wireless, 16GB RAM, 64GB eMMC, Quad-Core Arm Cortex-A76, Dual 4Kp60 HDMI, Gigabit Ethernet, Wi-Fi and Bluetooth
- POWERFUL PROCESSOR: Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 processor running at 2.4GHz delivers exceptional performance for embedded applications
- MEMORY AND STORAGE: Equipped with 16GB RAM and 64GB eMMC flash storage for robust data handling and storage capacity in a compact form factor
- WIRELESS CONNECTIVITY: Certified radio module with dual-band 2.4GHz/5.0GHz IEEE 802.11 b/g/n/ac Wi-Fi and Bluetooth 5.0 BLE, plus Gigabit Ethernet PHY with IEEE 1588 support
- DUAL 4K DISPLAY OUTPUT: Two HDMI 2.0 ports support simultaneous 4Kp60 output on both displays, plus two 4-lane MIPI ports for DSI and CSI-2 interfaces
- COMPACT DESIGN: Measures 2.17 x 1.57 x 0.19 inches with four M2.5 mounting holes, operating temperature range of -4F to +185F, and production guaranteed until January 2036
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Raspberry Pi Compute Module 5 delivers the exceptional performance of Raspberry Pi 5 in a compact, embedded-ready form factor. Powered by a quad-core Arm Cortex-A76 processor running at 2.4GH z, this system-on-module is engineered for demanding industrial and commercial applications. This model features 16GB of RAM and 64GB of eMMC flash storage, providing ample memory and storage for complex embedded solutions. The integrated wireless module offers dual-band Wi-Fi and Bluetooth 5.0 connectivity with flexible antenna options. With dual 4Kp60 HDMI outputs, Gigabit Ethernet, PCIe Gen 2 support, and multiple USB ports, the CM5 offers extensive connectivity options.
The module provides up to 30 GPIO pins with flexible voltage signaling and supports numerous peripheral interfaces including UART, I2C, SPI, and MIPI camera and display ports. Measuring just 2.17 x 1.57 x 0.19 inches with standard mounting holes, it integrates seamlessly into custom designs. Operating across a wide temperature range of -4F to +185F, this module is built for reliability with a production lifetime guaranteed until at least January 2036, making it ideal for long-term embedded projects and industrial applications.
The module provides up to 30 GPIO pins with flexible voltage signaling and supports numerous peripheral interfaces including UART, I2C, SPI, and MIPI camera and display ports. Measuring just 2.17 x 1.57 x 0.19 inches with standard mounting holes, it integrates seamlessly into custom designs. Operating across a wide temperature range of -4F to +185F, this module is built for reliability with a production lifetime guaranteed until at least January 2036, making it ideal for long-term embedded projects and industrial applications.
