XtremPro HDMI Extender Receiver and Transmitter Over TCP/IP Extender Single Cat5e/6 Cable by Networking Cable, Full 1080P Up to 394Ft (120 Meters) - Black (61023)

* This Product Has 12 Months Replacement. We focus on providing quality power products and excellent customer service. This Xtrempro HDMI over IP Extender uses the advanced M-JPEG as the compression type, which makes it occupy lower bandwidth and transmit over the LAN more smoothly. It supports394Ft (120m) over the single cat5e/6 cable at the point to point, as well as point to many over Ethernet switch. The over IP solution is widely used in various locations, like meeting room, classroom, metro, airport, home, mall advertisement..

. etc.

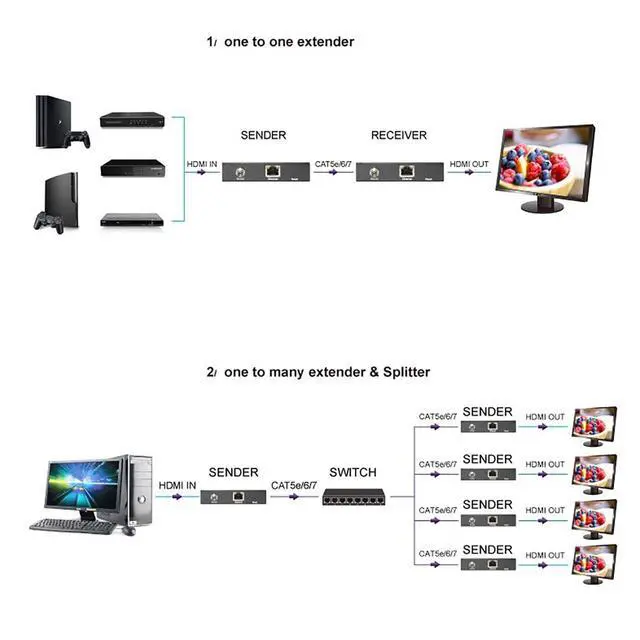

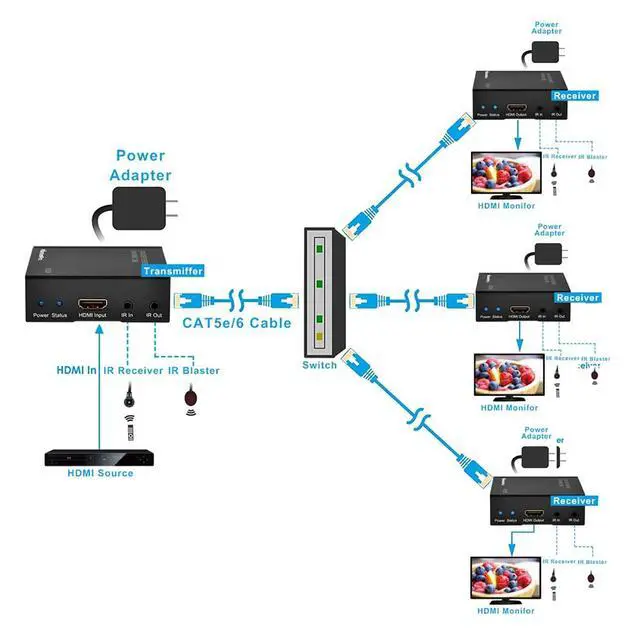

Features: Build in EDIDHDCP Compliant Support PC web control Support LPCM audio format Support one to one or one to many modes with large cascade Using M-JPEG compression encoding, support resolution up to 1080p@60hzBi-direction Wide-band IR passes through to control the source or sink device. (38khz to 56khz) Comply with TCP/IP protocol, Transmit up to 120meters@1080p/60Hz over single Cat5e/6 cable Carry power to TX and Rx units with a Power Over Ethernet enabled Smart Managed Switch (*Optional POE version only)

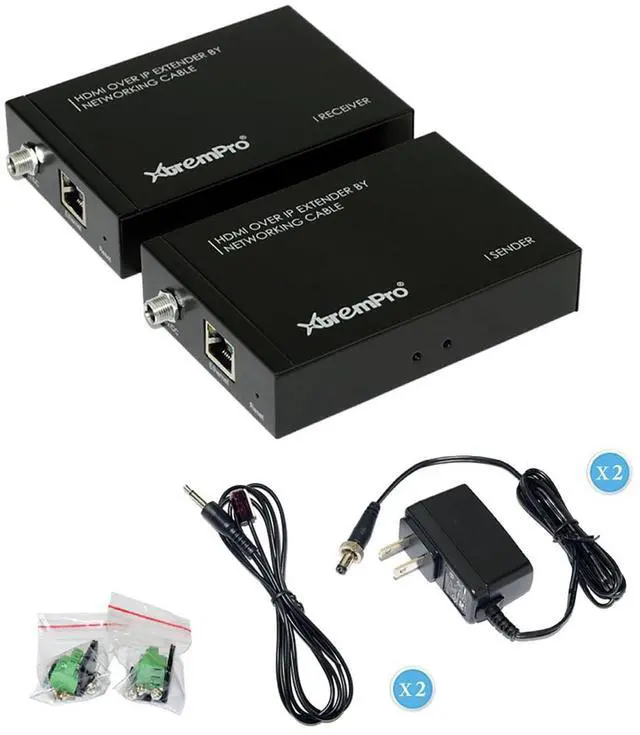

Package Contents: Main unit Transmitter x1Main unit Receiver x15V Power adapter x2IR-Receiver cable x2IR-Blaster cable x2User
Manual x1Specifications:
Protocol: M-JPEG encoder over
TCP/I Distance: Up to394Ft120 meters
Support Video format: 480i /480p / 576i / 576p / 720p / 1080i / 1080p@60HzSupport
Audio format: LPCM, Audio
sampling rate 48KHZHDCP: Complaint
Frequency: 38-56 KHz

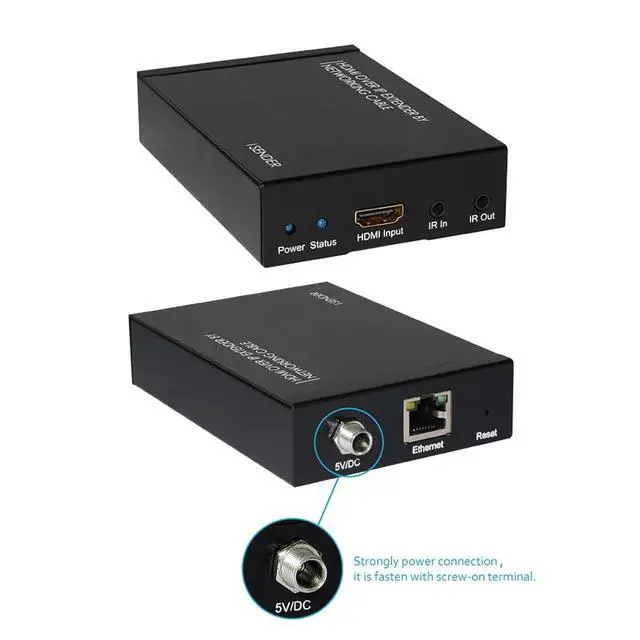

Connectors on Transmitter:
Input: HDMI
Female Port Output: RJ45
outputted: Support 38-56KHzConnectors on
Receiver:
Input: RJ45
input/output: HDMI
Female Porter: Support 38-56KHz
