SpecialTouch 50 Inch Interactive 20 Points Multi-Touch Infrared Touch Overlay, IR Touch Screen Panel, Infrared Touch Frame USB Free Driver HID Compatible

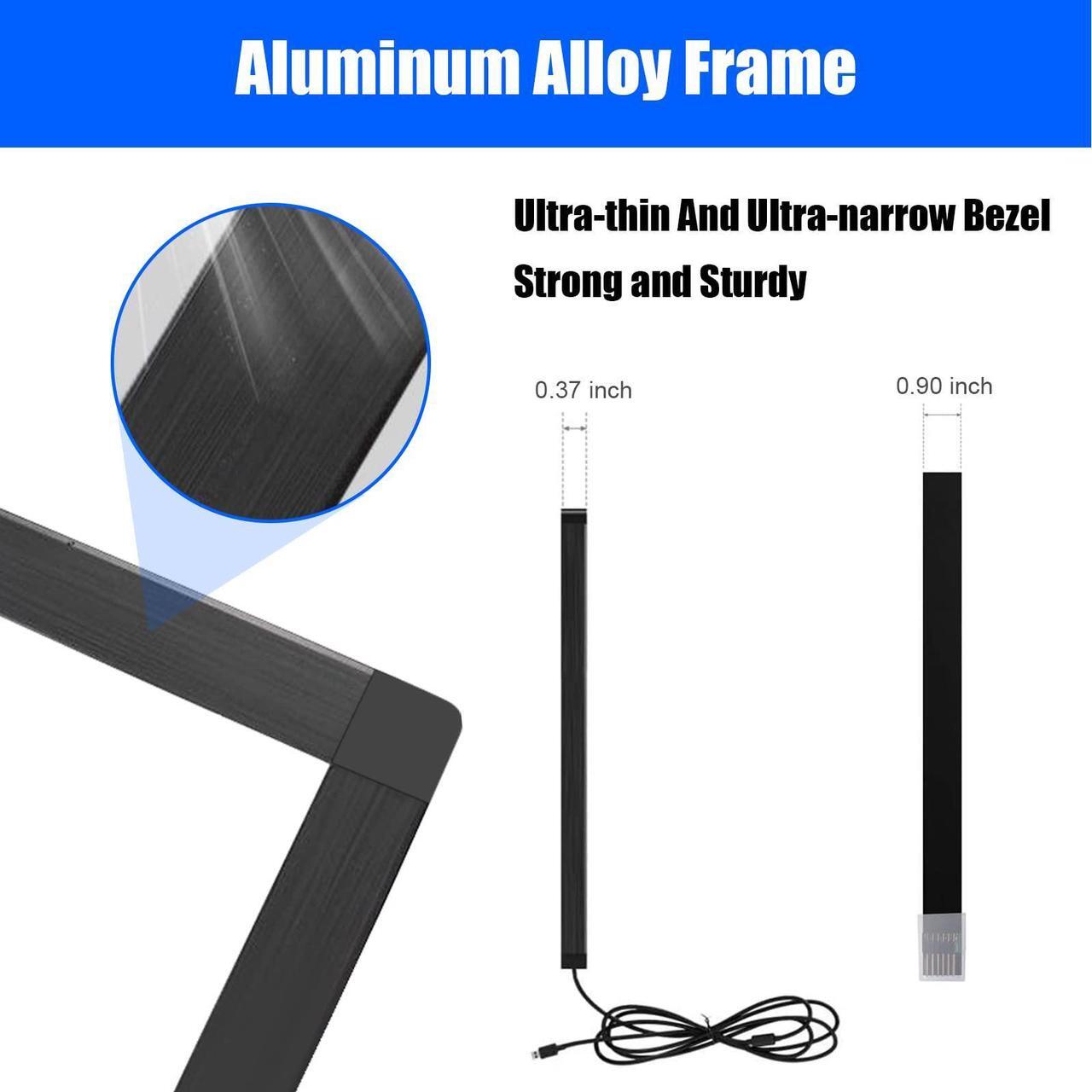

- High Quality Material: With aluminum alloy black frame, it has a long service life. No blind spots, breakpoints, jumps, pauses and other undesirable phenomena. Fast response time 10ms.
- Lightfast Design: The IR touch frame can be applied to internal and external link environments, And is widely used in touch all-in-one machines, touch kiosks, touch digital signage.

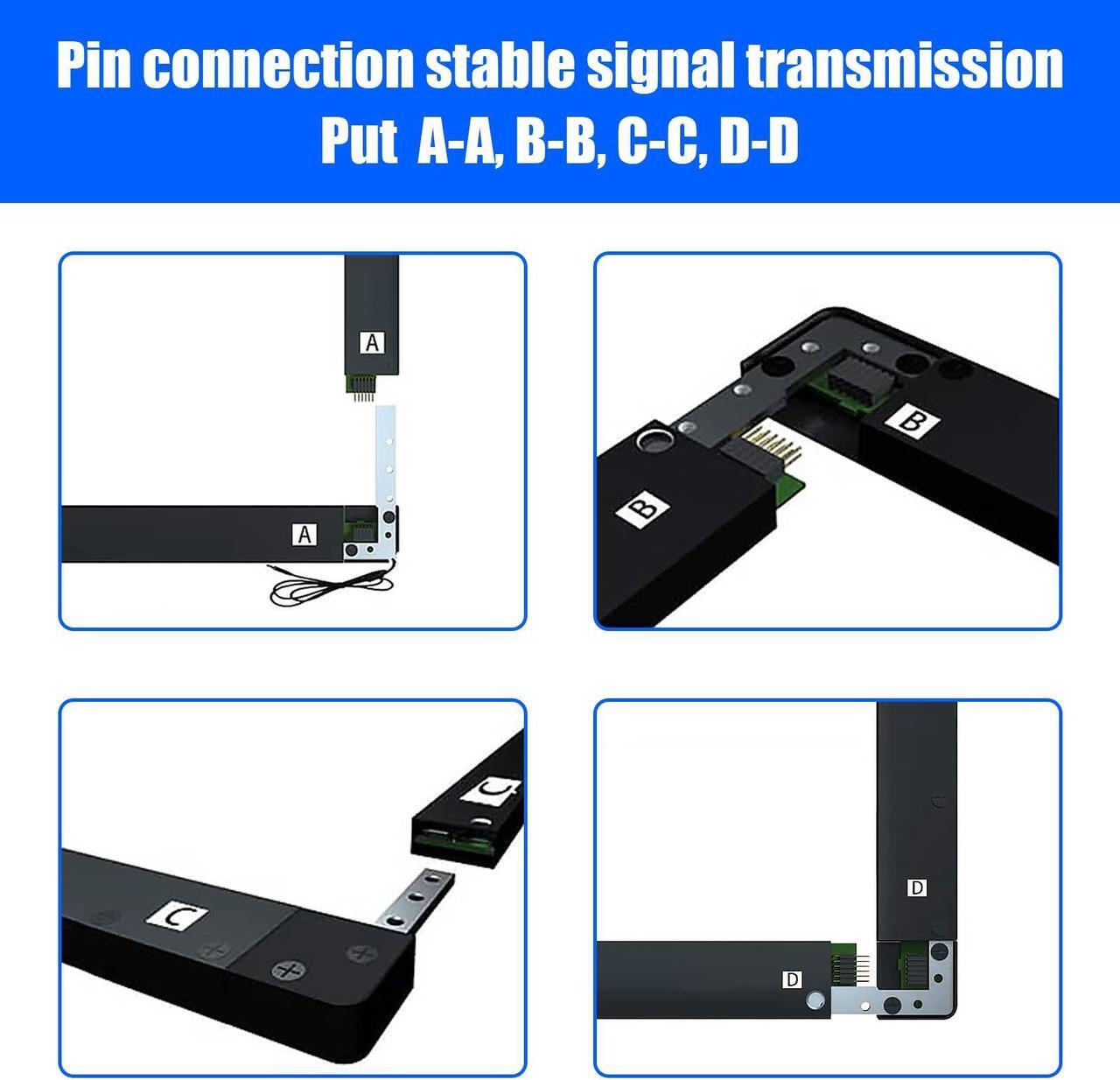

- Easy to Install: Our ir touch screen overlays are plug-in design, The installation work is very easy. If the touch positioning is not accurate after installation, We can provide calibration software.
- Scope of Application: USB plug and play, intelligent automatic calibration, driver-free and maintenance-free. Available for Windows, The HID driver needs to be installed in Mac OS.
- Package: Touch frame only (without monitor , without glass)Warranty is 1 year.If there is any other question , Please feel free to contact us
+
+
Overview
Specs
Reviews
SPECIFICATION
Standard Size: 50 inch
Ratio: 16:9
Number of Touch Points: 20
Minimum Touch Object: 2mm
Touch Activation Force: No minimum touch pressure required
Touch Durability: Unlimited

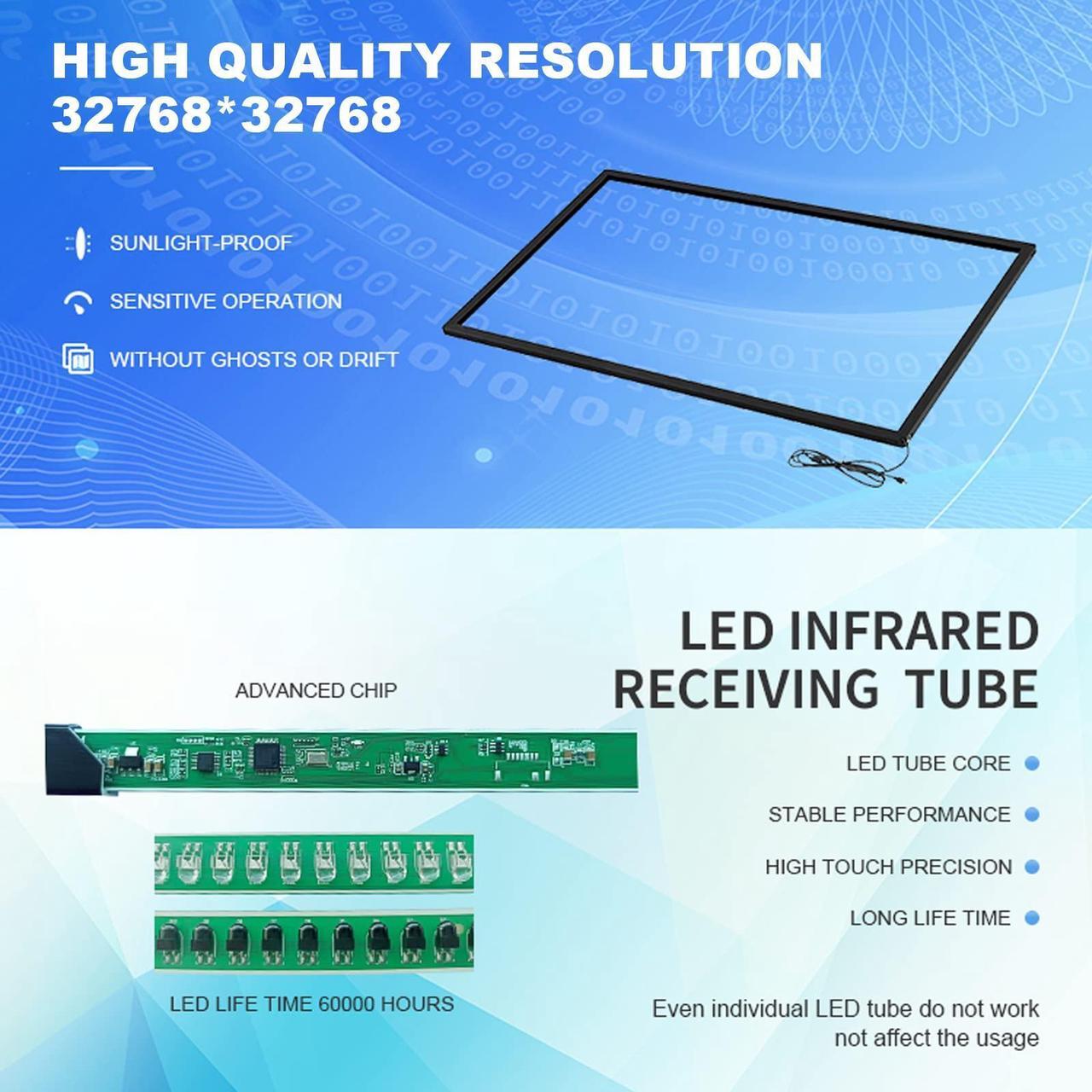

Durability Resolution: 32768*32768
Linearity Deviation: +-1mm
Frames per Second: Up to 450 fps
Typical Response Time: 3-10ms
Light Transmission: 100% without glass
Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Native Android (Compatible with GreenTouch Android Box). Single point under Mac
(Does not support Smart TV Android system, Raspberry Pi)
Protocols: HID, TUIO, Flash
Re-development Provide: free SDK, support C/C++, C#, Java etc.
Noise: No Noises
Lift Time: 7 -10 years
ELECTRICAL

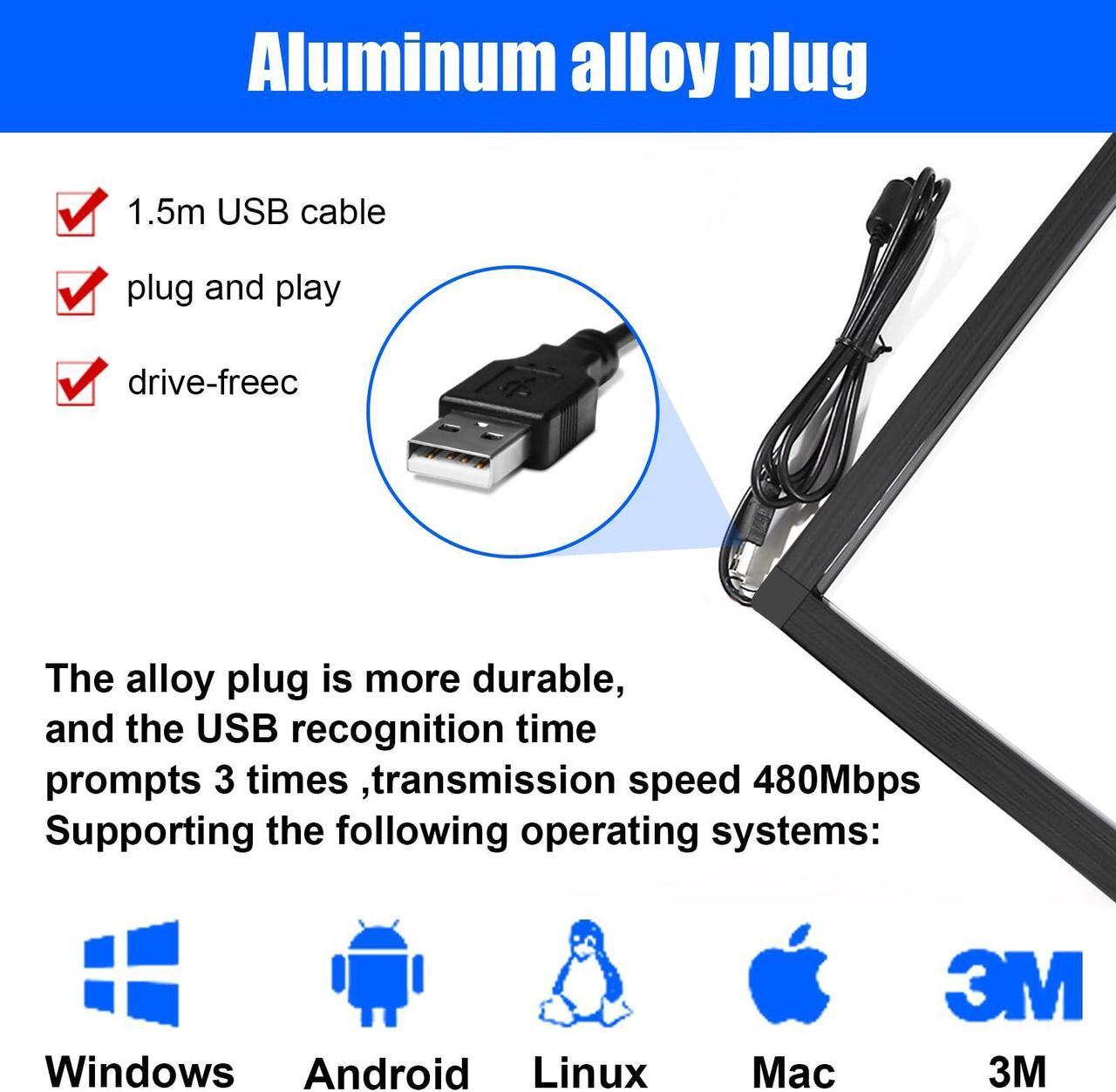

Power Supply: Single USB Connection
Low Power Consumption: Operating <=2W, Stand By <= 250mW
ESD: Contact Discharge 8kV, Air Discharge 15kV, 15kV on USB connector pins
ENVIRONMENT
Operating Temperature: -20degC~70degC
Storage Temperature: -40degC~85degC
Operating Humidity: 10%~90%RH(Non-condensing)
Storage Humidity: 10%~90%RH
Certification: FCC, CE, ROHS
Warranty: 1 year
Note: If there is any other question, please feel free to contact us!
Standard Size: 50 inch
Ratio: 16:9
Number of Touch Points: 20
Minimum Touch Object: 2mm
Touch Activation Force: No minimum touch pressure required
Touch Durability: Unlimited
Durability Resolution: 32768*32768
Linearity Deviation: +-1mm
Frames per Second: Up to 450 fps
Typical Response Time: 3-10ms
Light Transmission: 100% without glass
Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Native Android (Compatible with GreenTouch Android Box). Single point under Mac
(Does not support Smart TV Android system, Raspberry Pi)
Protocols: HID, TUIO, Flash
Re-development Provide: free SDK, support C/C++, C#, Java etc.
Noise: No Noises
Lift Time: 7 -10 years
ELECTRICAL
Power Supply: Single USB Connection
Low Power Consumption: Operating <=2W, Stand By <= 250mW
ESD: Contact Discharge 8kV, Air Discharge 15kV, 15kV on USB connector pins
ENVIRONMENT
Operating Temperature: -20degC~70degC
Storage Temperature: -40degC~85degC
Operating Humidity: 10%~90%RH(Non-condensing)
Storage Humidity: 10%~90%RH
Certification: FCC, CE, ROHS
Warranty: 1 year
Note: If there is any other question, please feel free to contact us!
