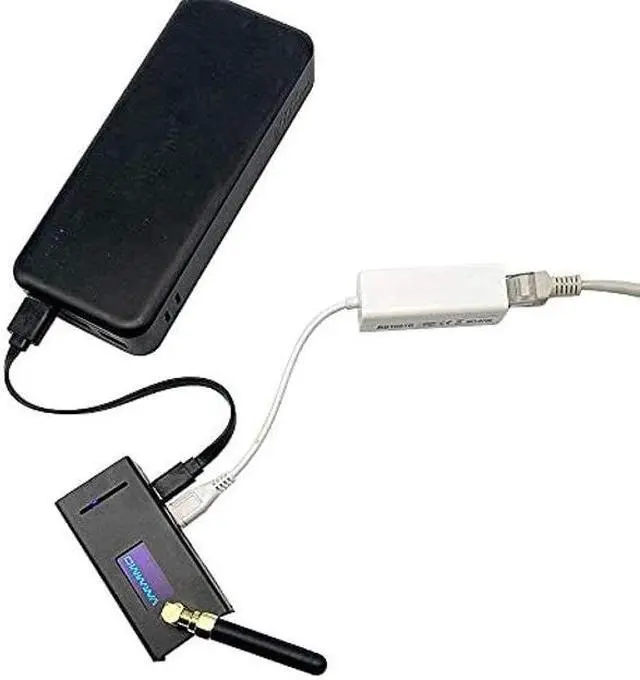

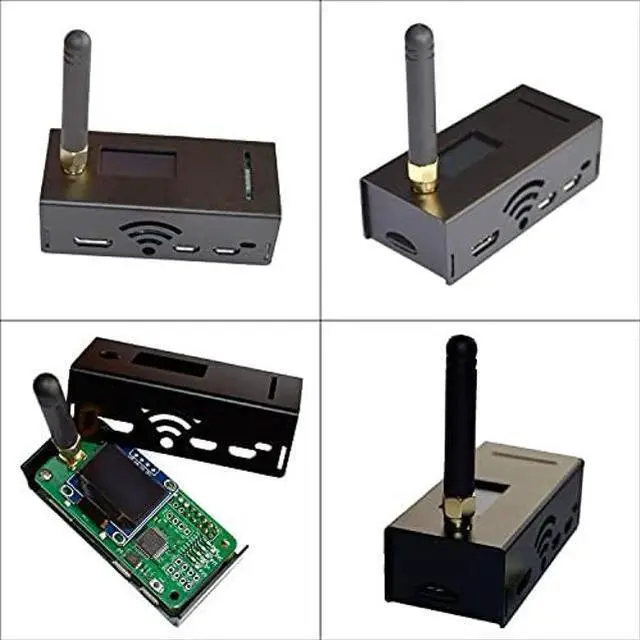

AURSINC MMDVM Hotspot Spot Radio WiFi Digital Voice Modem Work Contained with Raspberry Pi Zero W with Firmware V1.5.2 UHF VHF | Ethernet Cable | Supports C4FM YSF NXDN DSTAR P25 DMR
- [Firmware V1.5.2] The firmware version is V1.5.2. The MMDVM hotspot board supports updating to V1.6.1. Our test is in DMR mode, if you want to change the working mode, you need to configure it as needed Working mode parameters) . SUPPORT: C4FM YSF NXDN DSTAR P25 DMR and default work with UHF. Not compatible with Baofeng UV-5R, Baofeng RD-5R, 5X, 5R+, 5R Plus, etc UV series, BF series.
- [WIFI SSID] Need the 2.4GHz SSID as the Pi Zero W doesn't support 5.8GHz.and WiFi will not work with WEP, make sure your WiFi Password Type is WPA. Power on the hotspot for 2 minutes to automatically connect to the network, or follow the instructions to connect the Hotspot to your router. After power on 2 minutes,go to "pi-star/admin/configure.php"
- [EASY SET UP] Preload sofeware Pi-Star on TF card, no need to download again. Cover more frequencies, radio frequency (UHF: 430-440, VHF: 144-146). This is upgraded version, do not need to set RXOFFSET and TXOFFSET, they're default 0
- [EASY CH
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description
MMDVM Hotspot is an easy, convenient and ready to use Multi-mode Hotspot that supports C4FM YSF NXDN DSTAR P25 DMR
Base Setting:
Power On and Wait for 2-3 minutes Connect to
Pi-Star-Setup(pi-star)/SSID/PASSWORD: raspberry
http: // 192.168. 50.1 /admin/configure. php
MMDVM
Host Configuration
MMDVM Display Type: OLED
Radio Freq: UHF: 430-440 VHF: 144MHz-148MHz
Radio/Modem Type: STM32-DVM/MMDVM_HS - Raspberry Pi Hat (GPIO) or any XXX (GPIO)
http: // 192.168. 50.1 /admin/expert/edit_mmdvmhost. php
RXOFFSET=0, TXOFFSET=0 (default)
TIPS: OLED is no display Until you set wifi and display TYPE
Login info:
User: pi-star password: raspberry
Set the same Frequency, Callsign, DMR ID, Color code, Repeater Slot (Time Slot Defaults 2) as Radio Mobile and WiFi
Note: All designs will be contributed on MMDVM open source project.
QA
1, Why does it connect to WiFi on first time, and fail the next time?
When you first time set up, MMDVM hotspot will generete pi-star set up hotspot, which you'll
connect with, and goes into pi-star and then visit 192.168. 50.1 for configuration.
If you connected to your home network/home wifi, it will remember your home wifi.
Therefore, when you open pi-star and try to update your configure, there will be no pi-star wifi.
If you came across this situation, here're two methods to log in and update you configure:
A,
Visit http: //pi-star on your browser, log in pi-star and configure. If you're on macOS, iOS or Windows 10 tablet, please
visit http: //pi-star. local.
B, Find your Device IP on your home network routers, and log in with that IP, and update your configure.

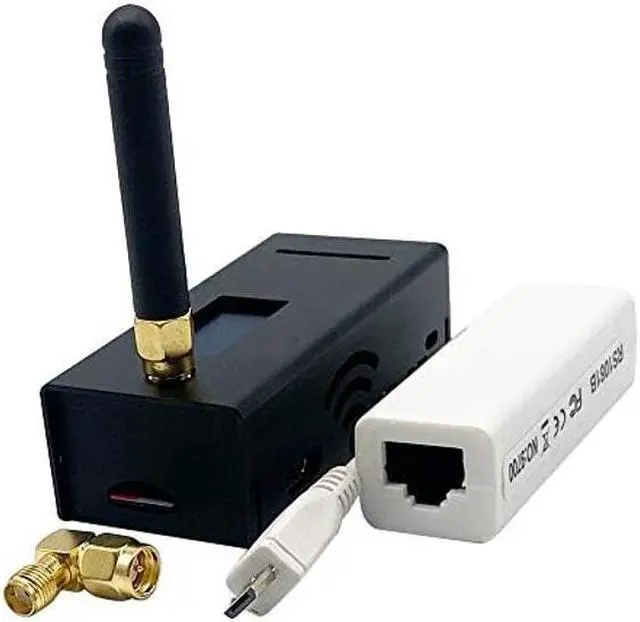

Package content:

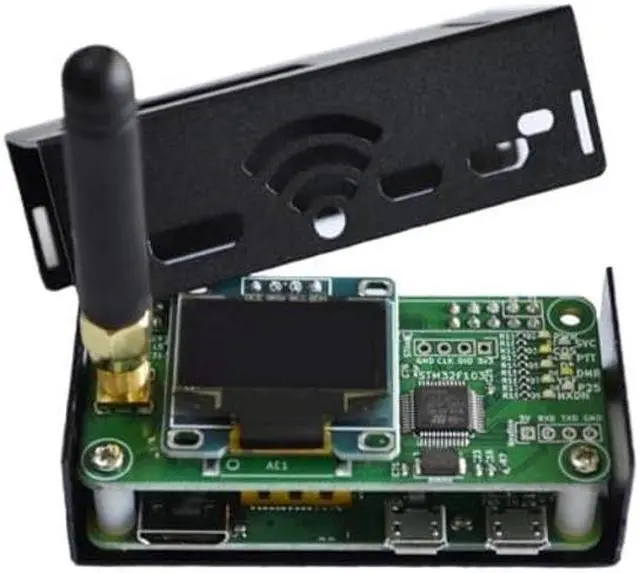

1x OLED display (installed on board)
1x Raspberry Pi Zero W
1x TF card
1x MMDVM_HS(UHF/VHF)
1x USB Cable
1x Antenna (with 90 degree elbow)
1x Ethernet Cable
MMDVM Hotspot is an easy, convenient and ready to use Multi-mode Hotspot that supports C4FM YSF NXDN DSTAR P25 DMR
Base Setting:
Power On and Wait for 2-3 minutes Connect to
Pi-Star-Setup(pi-star)/SSID/PASSWORD: raspberry
http: // 192.168. 50.1 /admin/configure. php
MMDVM
Host Configuration
MMDVM Display Type: OLED
Radio Freq: UHF: 430-440 VHF: 144MHz-148MHz
Radio/Modem Type: STM32-DVM/MMDVM_HS - Raspberry Pi Hat (GPIO) or any XXX (GPIO)
http: // 192.168. 50.1 /admin/expert/edit_mmdvmhost. php
RXOFFSET=0, TXOFFSET=0 (default)
TIPS: OLED is no display Until you set wifi and display TYPE
Login info:
User: pi-star password: raspberry
Set the same Frequency, Callsign, DMR ID, Color code, Repeater Slot (Time Slot Defaults 2) as Radio Mobile and WiFi
Details
Software: Pi-StarNote: All designs will be contributed on MMDVM open source project.
QA
1, Why does it connect to WiFi on first time, and fail the next time?
When you first time set up, MMDVM hotspot will generete pi-star set up hotspot, which you'll
connect with, and goes into pi-star and then visit 192.168. 50.1 for configuration.
If you connected to your home network/home wifi, it will remember your home wifi.
Therefore, when you open pi-star and try to update your configure, there will be no pi-star wifi.
If you came across this situation, here're two methods to log in and update you configure:
A,
Visit http: //pi-star on your browser, log in pi-star and configure. If you're on macOS, iOS or Windows 10 tablet, please
visit http: //pi-star. local.
B, Find your Device IP on your home network routers, and log in with that IP, and update your configure.
Package content:
1x OLED display (installed on board)
1x Raspberry Pi Zero W
1x TF card
1x MMDVM_HS(UHF/VHF)
1x USB Cable
1x Antenna (with 90 degree elbow)
1x Ethernet Cable
