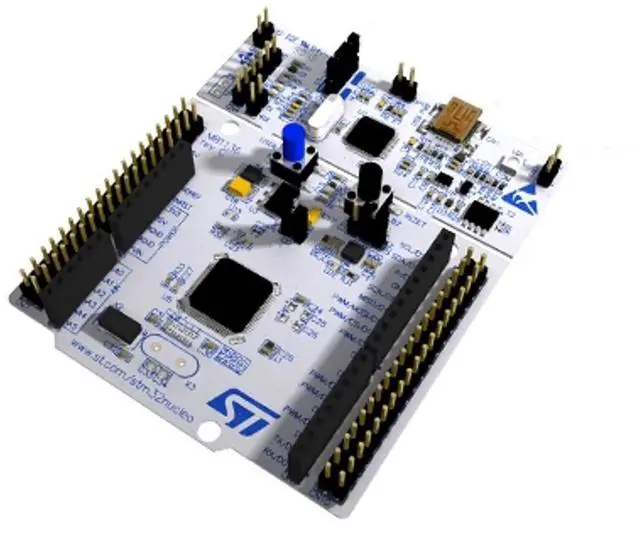

STM32 NUCLEO-F302R8 Nucleo-64 Development Board with STM32F302R8 MCU, Supports Arduino and ST Morpho connectivity
- STM32 STM32F302R8 microcontroller Cortex-M4 in LQFP64 package
- 1 user LED shared with Arduino 1 user and 1 reset push-buttons
- Board expansion connectors: Arduino Uno V3 ST morpho extension pin headers for full access to all STM32 I/Os
- On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability. Three different interfaces supported on USB: mass storage, Virtual COM port and debug port
- Comprehensive free software libraries and examples available with the STM32Cube MCU Package
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The STM32 Nucleo-64 boards provide an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontrollers, choosing from various combinations of performance, power consumption and features. For the compatible boards, the SMPS significantly reduces power consumption in Run mode.
The Arduino Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.
The STM32 Nucleo-64 board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to the Arm Mbed online resources at http: //mbed. org.
Mainstream Mixed signals MCUs ARM Cortex-M4 core with DSP and FPU, 64 Kbytes Flash, 72 MHz CPU, 12-bit ADC 5 MSPS, Comparator, Op-Amp
The Arduino Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.
The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.
The STM32 Nucleo-64 board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to the Arm Mbed online resources at http: //mbed. org.
Mainstream Mixed signals MCUs ARM Cortex-M4 core with DSP and FPU, 64 Kbytes Flash, 72 MHz CPU, 12-bit ADC 5 MSPS, Comparator, Op-Amp
