STMicroelectronics STLINK-V3SET Debugger/Programmer for STM8/STM32 with USB, I2C, Infrared, Main Module and Adapter Board

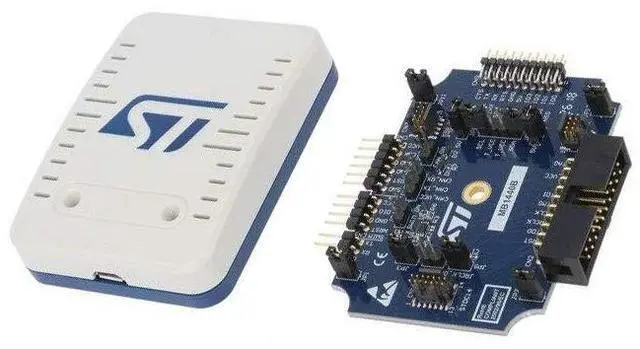

The STLINK-V3SET is a modular stand-alone debugging and programming probe for the STM8 and STM32 microcontrollers. It is composed of a main module and a complementary adapter board. The SWIM and JTAG/SWD interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board. The STLINK-V3SET also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART, and bridge interfaces (SPI, I2C, CAN, GPI
Os) allowing for instance the programming of the target through bootloader. The modular architecture of STLINK-V3SET enables to extend its main features through additional modules such as the adapter board.
Key Features: Stand-alone probe with modular extensionsSelf-powered through a USB connector (Micro-B)USB 2.0 high-speed compatible interfaceDirect firmware update support (DFU) JTAG / serial wire debugging (SWD) specific features: 3 V to 3.6 V application voltage support and 5 V tolerant inputs, Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch), JTAG communication support, SWD and serial wire viewer (SWV) communication supportSWIM specific features (only available with adapter board
MB1440): 1.65 V to 5.5 V application voltage support, SWIM header ( 2.54 mm pitch), SWIM low-speed and high-speed modes supportVirtual
COM port (VCP) specific features: 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs, VCP frequency up to 15 MHz, Available on STDC14 debug connector (not available on MIPI10) Multi-path bridge USB to SPI/UART/I2C/CAN/GPI
Os specific features: 3 V to 3.6 V application voltage support and 5 V tolerant inputs, Signals available on adapter board only (MB1440) Drag-and-drop Flash programmingTwo color
LEDs: communication, power
