KuWFI LAN Controller, 5 Port 10/100/1000Mbps RJ45 Ports Wireless Aceess Control WLAN Controller AP Management Indoor Outdoor in Wall AP Manage 128PCS Wireless APs, Access 80users in The Same Network

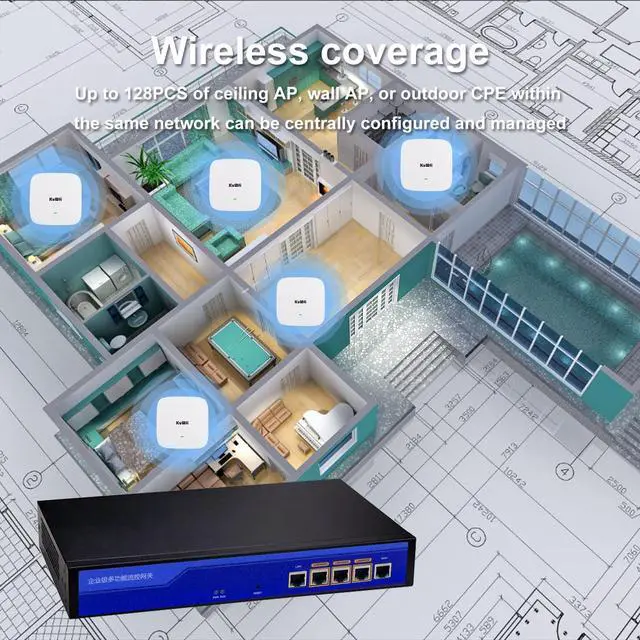

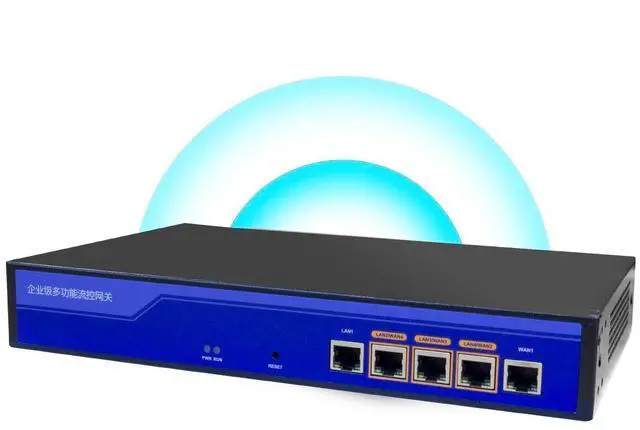

What is BW80AC-BW80 is an small size Enterprise Gateway based on CAPWAP protocol. support portal authentication, PPPoE authentication, IP and MAC authentication in gateway modeSupport Load Balance, Ethernet backup and Ethernet Superimposed, multi-ISP access; then support DHCP, policy routing and VPN, together with Smart flow control, Abundant security, varied user management and multiple authentication function, it consistent to provide high efficiency and professional network connect ^^ AP ControllerAC-BW80 with 5*10/100/1000Mbps RJ45 ports, which it with high performance WLAN Controller to centralized configure and manage upto 128PCS Ceiling APs, In-wall APs or Outdoor CPEs in the same networkcan manage the wireless access point fast and stable in central and remote, provide whole wireless coverage solution, cost saved and convenient.

^^ Multiple Gigabit WAN and multiple routing functionsAC-BW80 support PPPoE/DHCP/Static IP/PPTP access, work with different ISP and max 80 end users can access into it. Support multiple Gigabit WAN ports, support load balance, Ethernet Superimposed and multiple ISP network access to avoid bandwidth overload, then support Ethernet backup to recover the dropped networking line, ensure the whole networking smoothly; It support policy-based routing function also, administrator will set the network ba ^^ powerful QoS functionsOne-click to enable/disable the smart QoS, which can recognize the traffic size and traffic characteristics, algorithm the fairness and control network latency to improve the downloading, video, games and web pages network experience.

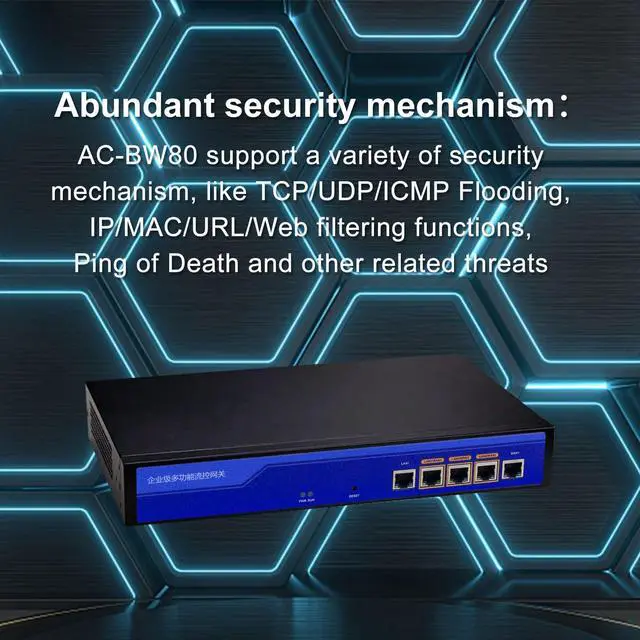

Multiline shunt policyto meet with different application request ^^ Remote MaintenanceAdministrator can access into AC-BW80s management interface page remotely at home, to manage and maintenance the wireless access point, keep the whole network stable in economic way. make wireless coverage in hotels, enterprises, schools, shopping mall, restaurants etc in Optimal layout and easly configure. Meanwhile, it supports PPPoE, Static IP, Dynamic IP and PPTP ^^ Abundant security mechanismAC-BW80 support a variety of security mechanism, like TCP/UDP/ICMP Flooding, IP/MAC/URL/Web filtering functions, Ping of Death and other related threats, extend protection to every port of the router and enable the ports to provide DoS/DDoS attack protection, traffic monitoring, Uniform Resource Locator (URL) filtering, and application layer filtering.

^^ AC management for wireless AP Assign IP address for
Wireless AP: Build in DHCP Server, it can assign the IP address for wireless AP automatically when AP online; APs IP address can be same/different as users IP address based on request.

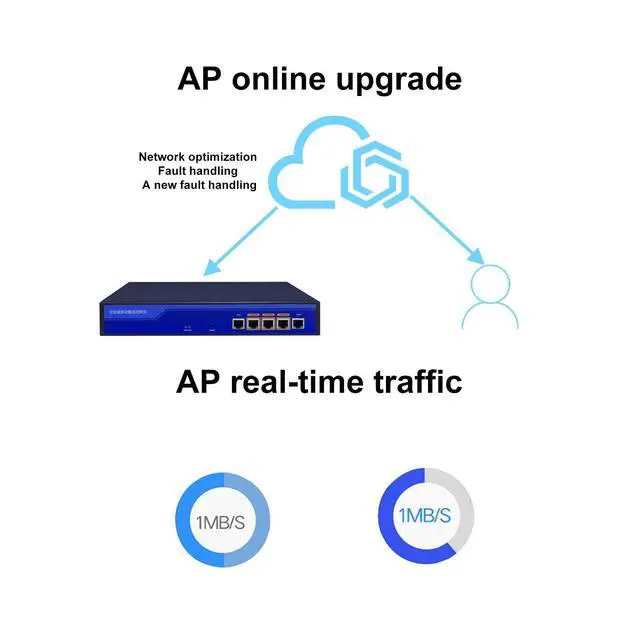

Template Configure: Administrator can set different template for different model, like SSID, password, mode, channel, RF power, coverage threshold and tag VLAN; Then can select wireless AP or upgrade AP firmware by models, different color show on/off status, ^^ Customer Service & Warranty Our dedicated support team is available at support@kuwfi. com. If you experience any product quality issues, you are covered by a 12-month warranty from the date of purchase. We are committed to providing a prompt technical solution or, if necessary, a complete device replacement. For any questions or assistance, our team is at your service.
