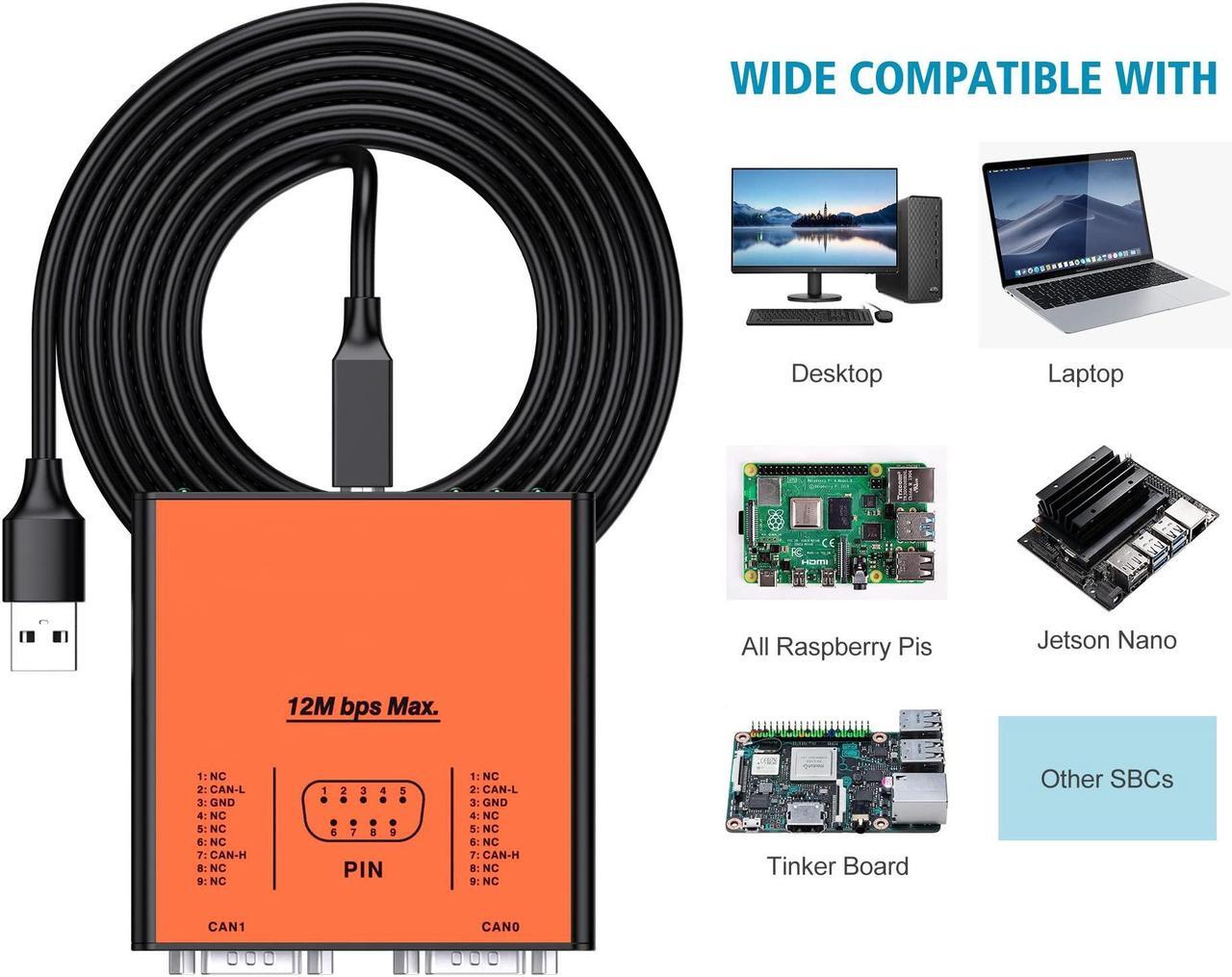

USB2CANFD-X2 USB to Dual Channel CANFD Converter for Raspberry Pi4/Pi3B+/Pi3/Pi Zero(W)/Jetson Nano/Tinker Board/PC

2CAN operation properties Adapter for High-speed USB 2.0 (compatible to USB 1.1 and USB 3.0 ) Complies with CAN specifications 2.0A /B and FD CAN FD support for ISO and Non-ISO standard software switchable CAN FD bit rates data field (64 bytes max. ) from 25 kbit/s up to 12Mbit/s. Class CAN bit rates from 25 kbit/s up to 1 Mbit/s; Time stamp Resolution Up to 1 ms; Each CAN FD Signal &Power Separately Isolated Up to 2500 Volts against USB; CAN 120O termination resistor Activated/Deactivated Through Software; Support CAN Clock Settings. Measurements of bus load including error frames and overload frames on the physical bus Induced error generation for incoming and outgoing CAN messages Extended operating temperature range -40 - 85 degC (-40 - 185 degF)
Protocols: CAN 2.0A (standard format) CAN 2.0B (extended format) CAN FD ISO 11898- 1:2015 CAN FD non-ISO
CAN bit rates: 25 kbit/s up to 1
Mbit/s CANFD bit rates: 25 kbit/s up to 12Mbit/s Software Windows PCAN-VIEW Linux PCAN-VIEW (Instruction)
Linux SOCKET-CAN: CAN Utils (Instruction), C (Source Code Instruction), Python (Source Code Instruction) API For Windows And Linux: C#, C++/CLR, Delphi, VB. NET, Java, Phyton 2.6
