youyeetoo Banana Pi BPI-F3 Acrylic Developer Kit - 8GB RAM, 32GB ROM, Industrial Grade RISC-V SBC, 2.0 TOPs AI, 2xGbE Ethernet, 4xUSB 3.0, PCIe M.2, HDMI, Dual MIPI-CSI Camera, Linux OS

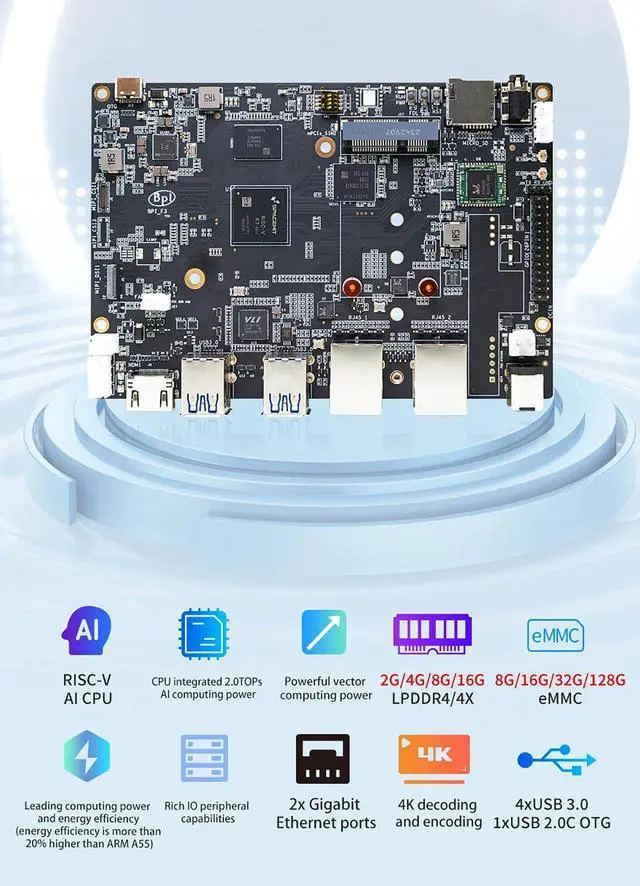

- Banana Pi BPI-F3 is an industrial-grade RISC-V development board, it is designed with a SpacemiT K1 8-core RISC-V chip, CPU integrates 2.0 TOPs AI computing power. 8G DDR and 16G eMMC onboard.2x GbE Ethernet port, 4x USB 3.0 and PCIe for M.2 interface, support HDMI and Dual MIPI-CSI Camera.

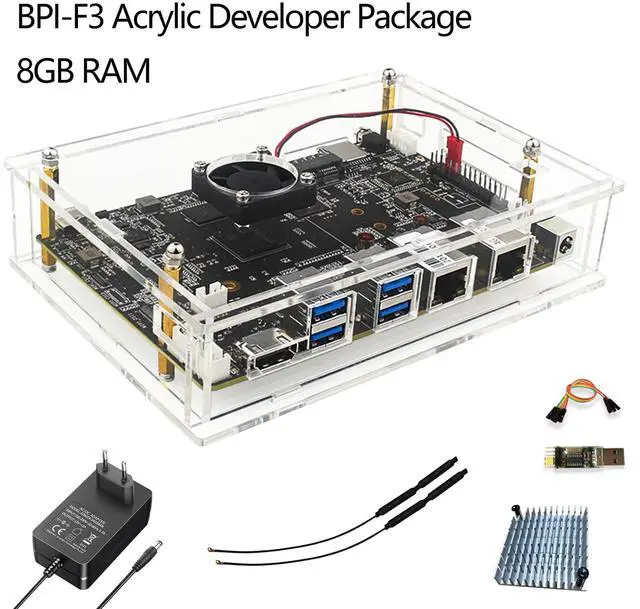

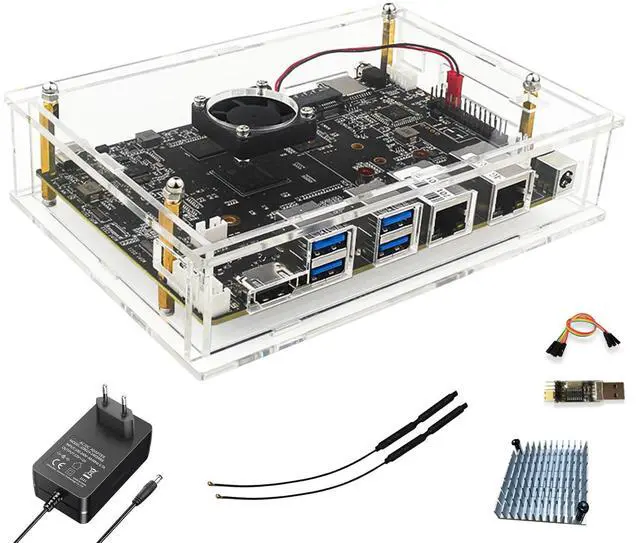

- Shipping List: 1x Bananpi BPI-F3; 1x 12V3A PSU; 1x Acrylic Shell; 1x Fan; 1x TTL Debug Module ; 2x ANT
- Features: 8-core RISC-V chip, CPU integrates 2.0 TOPs AI computing power; Single-core general computing power equivalent to 1.3 times Cortex-A55; Supports 32-bit LPDDR4/4X, with a maximum of 16GB of memory; 4K decoding and encoding; 5-lane PCIE2.1 expansion capability ;1x USB 3.0 + 2x USB 2.0 interfaces 12x UART serial ports Operating temperature range: -40°C to 85°C
- Support JMB582 expansion card (M.2 M key 2280) to SATA. Support PoE function via RT5400B POE module (optional)
- Quick Start Wiki: docs.banana-pi.org/en/BPI-F3/GettingStarted_BPI-F3; Tech Support: youyeetoo Discord
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Banana Pi BPI-F3 is an industrial-grade RISC-V development board, it is designed with a SpacemiT K1 8-core RISC-V chip, CPU integrates 2.0 TOPs AI computing power. 8G DDR and 16G eMMC onboard. 2x GbE Ethernet port, 4x USB 3.0 and PCIe for M. 2 interface, support HDMI and Dual MIPI-CSI Camera.
Features 8-core RISC-V chip, CPU integrates 2.0 TOPs AI computing power Single-core general computing power equivalent to 1.3 times Cortex-A55 Supports 32-bit LPDDR4/4X, with a maximum of 16GB of memory 4K decoding and encoding 5-lane PCIE 2.1 expansion capability 1x USB 3.0 + 2x USB 2.0 interfaces 12x UART serial ports
Operating temperature range: -40°C to 85°C
Shipping List:
1x Bananpi BPI-F3; 1x 12V3A PSU; 1x Acrylic Shell; 1x Fan; 1x TTL Debug Module; 2x ANT
Quick Start Wiki:
docs. banana-pi. org/en/BPI-F3/GettingStarted_BPI-F3
Tech Support:
youyeetoo Discord or forum. youyeetoo. com or office forum
If you have any questions, please feel free to click "youyeetoo" to ask.
Features 8-core RISC-V chip, CPU integrates 2.0 TOPs AI computing power Single-core general computing power equivalent to 1.3 times Cortex-A55 Supports 32-bit LPDDR4/4X, with a maximum of 16GB of memory 4K decoding and encoding 5-lane PCIE 2.1 expansion capability 1x USB 3.0 + 2x USB 2.0 interfaces 12x UART serial ports
Operating temperature range: -40°C to 85°C
Shipping List:
1x Bananpi BPI-F3; 1x 12V3A PSU; 1x Acrylic Shell; 1x Fan; 1x TTL Debug Module; 2x ANT
Quick Start Wiki:
docs. banana-pi. org/en/BPI-F3/GettingStarted_BPI-F3
Tech Support:
youyeetoo Discord or forum. youyeetoo. com or office forum
If you have any questions, please feel free to click "youyeetoo" to ask.
