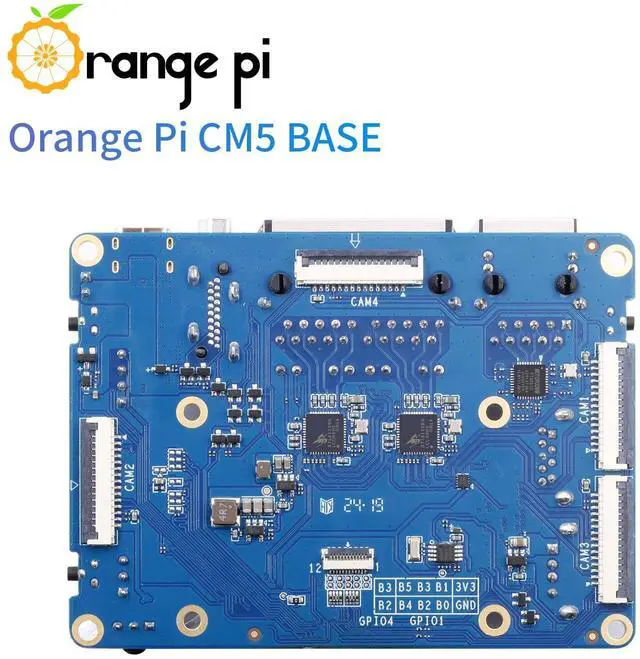

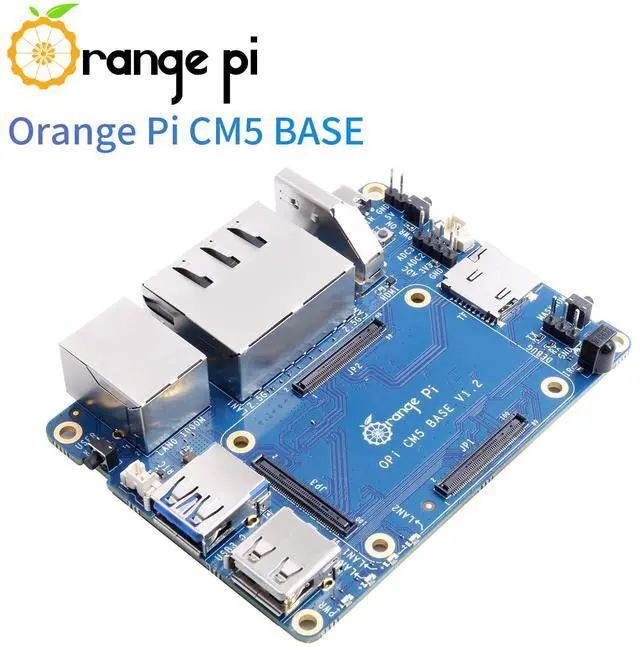

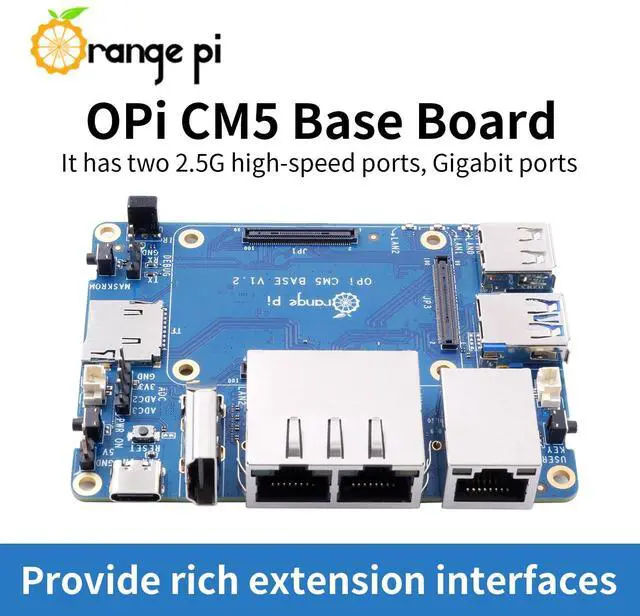

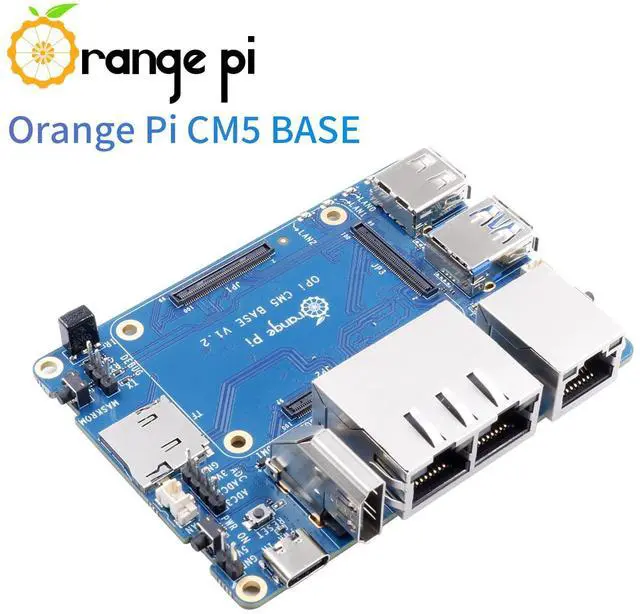

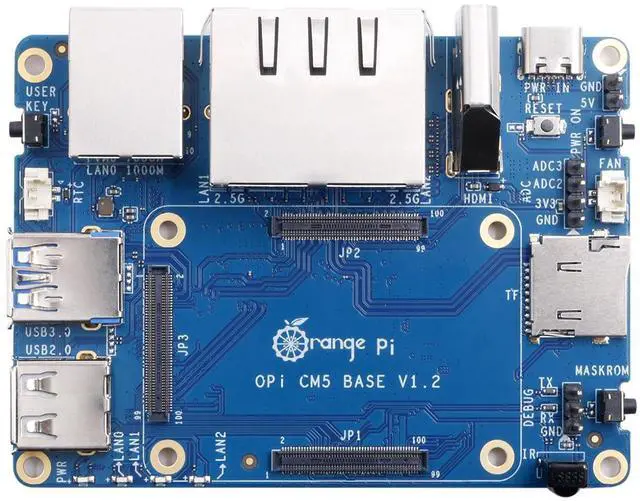

Orange Pi CM5 Base Board - Rich Interface, Two 2.5G High-Speed LAN, One Gigabit LAN, 3 * 100 Pin and Four Camera Ports
- Orange Pi CM5 base board is an official Orange Pi base board that can be used with Orange Pi CM5 core board.
- Orange Pi CM5 base board has two 2.5G high-speed LAN ports, one Gigabit LAN port, four camera ports, and standard CM5 connectors,
- Orange Pi CM5 base board can be used as a CM5 development system as well as embedded boards to be integrated into end-products.
- Makeing Orange Pi Compute Module 5 Rich interface and making it easy to use.
- Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Hardware Parameters
Board-to-board connector: 3*100pin, 0.4 mm pin Pitch, connector
model: df40c-100ds- 0.4 v
Memory: MicroSD (TF) card
USB: 1*USB 3.0 (Host or Device mode supported)
1*USB 2.0
Video output: HDMI 2.1 with up to 8K @60Hz support
Camera: 4*MIPI 2-lane
Ethernet PHY: 1*10/100/1000M (YT8531C)
2* 2.5G (RTL8125BG)
Infrared receiver: Remote infrared receiver
ADC: Reserved for two 12Bit ADC inputs, maximum 1.8V inputs
RTC: 2pin connector with 1.25 mm pitch
FAN: Connect DC 5V fan, 2pin vertical socket, Pitch: 1.25 mm
Expansion port: 12pin FPC socket
Supports 3.3V 500mA power output
Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces
Button: Power on/off key, MASKROM key, user-defined key, reset key
Power supply: Type-C, 5V @ 5A
LED: 1* red (POWER), 3* green (WAN, LAN1, LAN2)
Debugging: 3pin debug serial port (UART)
Supported OS: Orangepi OSDroidOrangepi OSArchUbuntuDebianAndroid12
PCB:
Length: 90mm, width: 66mm, thickness: 1.6 mm
Weight: 57.5 g
Board-to-board connector: 3*100pin, 0.4 mm pin Pitch, connector
model: df40c-100ds- 0.4 v
Memory: MicroSD (TF) card
USB: 1*USB 3.0 (Host or Device mode supported)
1*USB 2.0
Video output: HDMI 2.1 with up to 8K @60Hz support
Camera: 4*MIPI 2-lane
Ethernet PHY: 1*10/100/1000M (YT8531C)
2* 2.5G (RTL8125BG)
Infrared receiver: Remote infrared receiver
ADC: Reserved for two 12Bit ADC inputs, maximum 1.8V inputs
RTC: 2pin connector with 1.25 mm pitch
FAN: Connect DC 5V fan, 2pin vertical socket, Pitch: 1.25 mm
Expansion port: 12pin FPC socket
Supports 3.3V 500mA power output
Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces
Button: Power on/off key, MASKROM key, user-defined key, reset key
Power supply: Type-C, 5V @ 5A
LED: 1* red (POWER), 3* green (WAN, LAN1, LAN2)
Debugging: 3pin debug serial port (UART)
Supported OS: Orangepi OSDroidOrangepi OSArchUbuntuDebianAndroid12
PCB:
Length: 90mm, width: 66mm, thickness: 1.6 mm
Weight: 57.5 g
