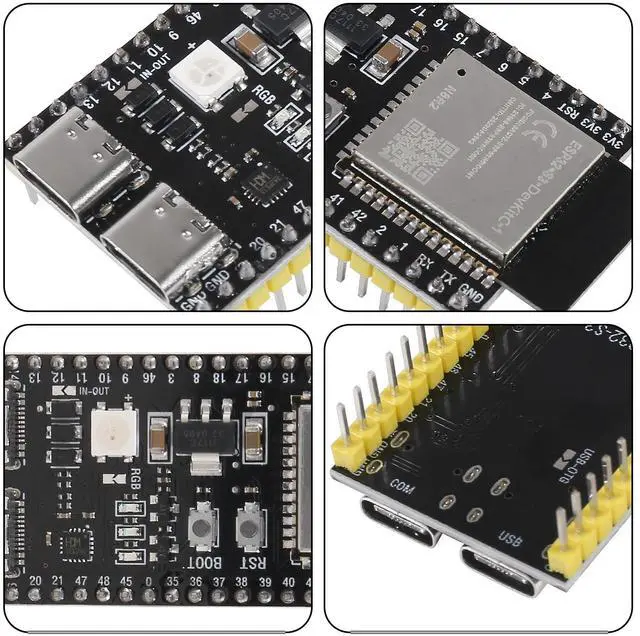

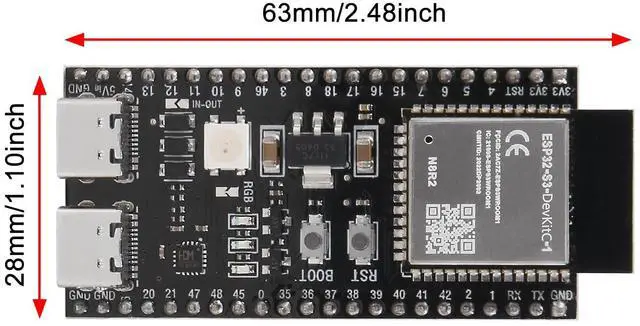

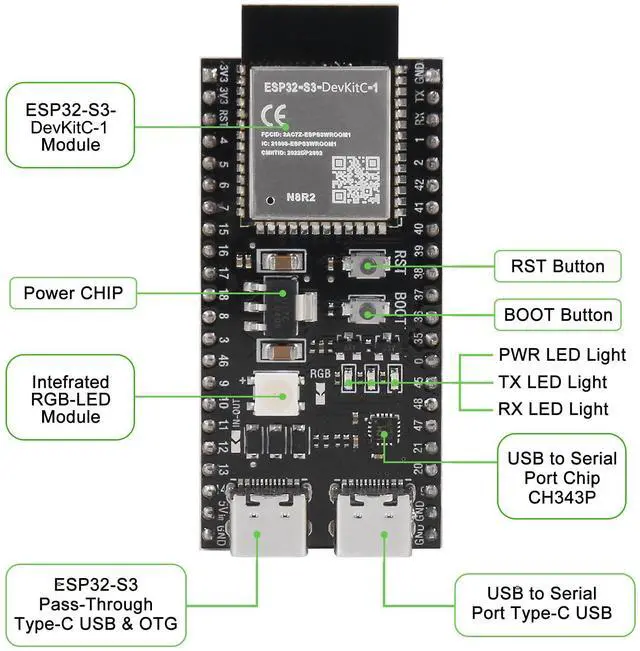

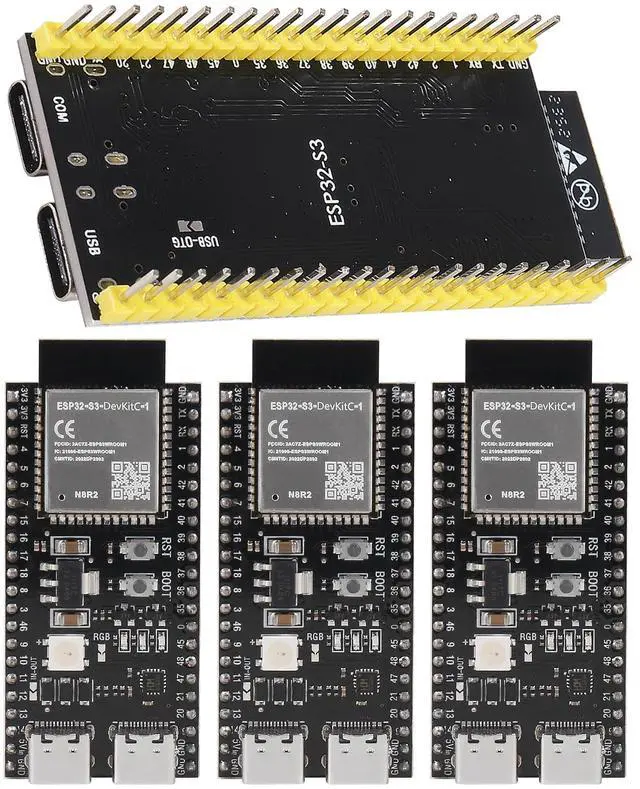

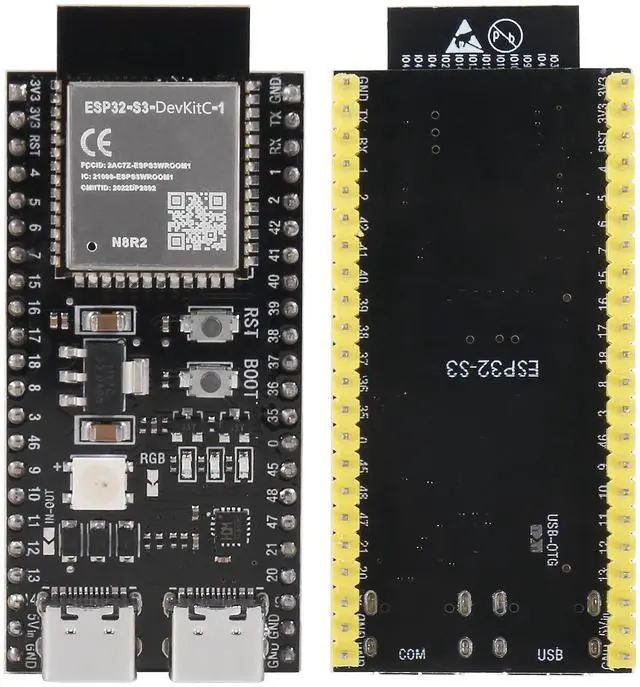

Main image of XIITIA 4pcs ESP32-S3-DevKitC-1-N8R2 ESP32-S3 Type-C Development Board Wi-Fi + Bluetooth MCU Module Integrates Complete Wi-Fi and BLE Functions ESP32-S3-WROOM Module(Pre-soldered pins)

Alt view image 2 of 5 - XIITIA 4pcs ESP32-S3-DevKitC-1-N8R2 ESP32-S3 Type-C Development Board Wi-Fi + Bluetooth MCU Module Integrates Complete Wi-Fi and BLE Functions ESP32-S3-WROOM Module(Pre-soldered pins)

Alt view image 3 of 5 - XIITIA 4pcs ESP32-S3-DevKitC-1-N8R2 ESP32-S3 Type-C Development Board Wi-Fi + Bluetooth MCU Module Integrates Complete Wi-Fi and BLE Functions ESP32-S3-WROOM Module(Pre-soldered pins)

Alt view image 4 of 5 - XIITIA 4pcs ESP32-S3-DevKitC-1-N8R2 ESP32-S3 Type-C Development Board Wi-Fi + Bluetooth MCU Module Integrates Complete Wi-Fi and BLE Functions ESP32-S3-WROOM Module(Pre-soldered pins)

Alt view image 5 of 5 - XIITIA 4pcs ESP32-S3-DevKitC-1-N8R2 ESP32-S3 Type-C Development Board Wi-Fi + Bluetooth MCU Module Integrates Complete Wi-Fi and BLE Functions ESP32-S3-WROOM Module(Pre-soldered pins)

Shop All AUTENS Products | Visit StarDragon Store

XIITIA 4pcs ESP32-S3-DevKitC-1-N8R2 ESP32-S3 Type-C Development Board Wi-Fi + Bluetooth MCU Module Integrates Complete Wi-Fi and BLE Functions ESP32-S3-WROOM Module(Pre-soldered pins)

Features: based ESP32-S3-WROOM-1; 2x Type-C USB (OTG, UART); 8MB Flash (Quad SPI); 2MB PSRAM (Octal SPI) 31x I0; ADC, DAC, I2C, SPI, UART, USB OTG; Compatible with MicroPython, Arduino and ESP-IDF; Default firmware: MicroPython.
USB-to-UART Port and ESP32-S3 USB Port (either one or both), default power supply (recommended).
5V and G (GND) pins;3V3 and G (GND) pins.
ESP32-S3 is a MCU chip integrated with 2.4 GHz Wi Fi and Bluetooth 5 (LE), which supports Long Range mode.
ESP32-S3-WROOM-1-N8R2(8M Flash/2SRAM);The cable can be used: USB Type A to Type-C cable or CC cable Note the distinction between the commonly used USB A port to Type-C cable that can only be charged, which cannot be used for communication between YD-ESP32-S3 and the host.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Specifications

:
Wi-Fi Standard: 802.11 b/g/n
Wireless Frequency: 2.4GH z
Flash: 8MB
PSRAM: 2MB
Operating Voltage: 3.3V
Digital I/0 Pins: 31
Clock Speed: 240MHz
Equipped with a powerful ESP32-S3 chip, this development board offers enhanced processing capabilities, allowing you to handle complex tasks with ease. With built-in Wi-Fi and Bluetooth capabilities, the ESP32-S3- DevKit C N8R2 Board ensures seamless connectivity to connect and control your devices effortlessly.
