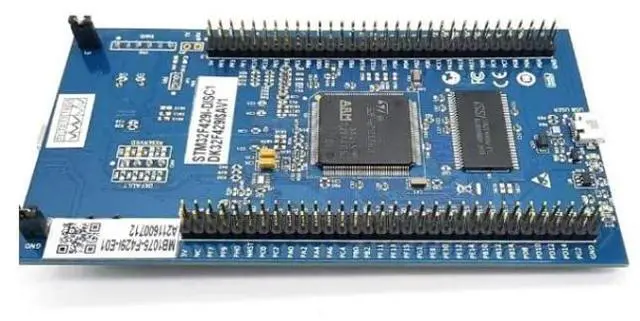

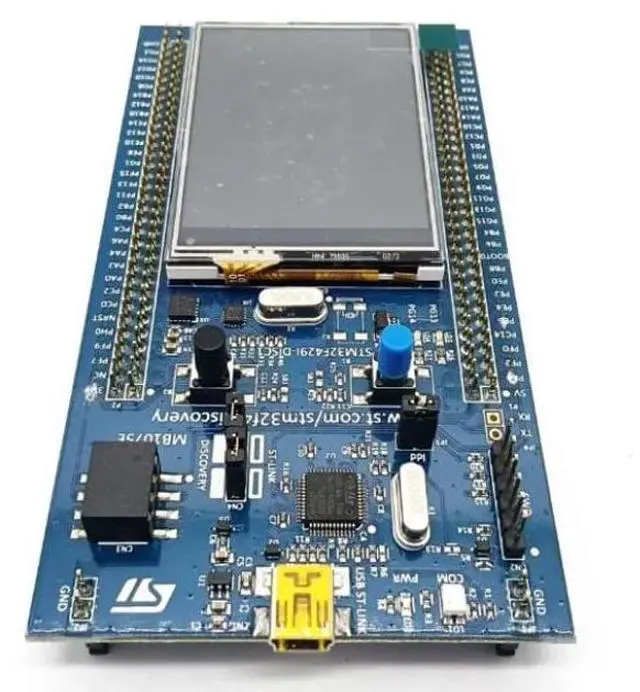

    XFCZMG STM32F429I-DISC1, STM32F429ZIT6 Microcontroller Development Board 256KB RAM 2MB Flash

    Be the first to review this product...
    • STM32F429ZIT6 microcontroller featuring 2 Mbytes of Flash memory, 256 Kbytes of RAM in an LQFP144 packag
    • 2.4" QVGA TFT LCD,USB OTG with Micro-AB connector,I3G4250D, ST MEMS motion sensor 3-axis digital output gyroscope
    • Six LEDs: LD1 (red/green) for USB communication LD2 (red) for 3.3 V power-on Two user LEDs: LD3 (green), LD4 (red) Two USB OTG LEDs: LD5 (green) VBUS and LD6 (red) OC (over-current
    • Two push-buttons (user and reset),64-Mbit SDRAM,Extension header for LQFP144 I/Os for a quick connection to the prototyping board and an easy probing,On-board ST-LINK/V2-B
    • USB functions: Debug port Virtual COM port Mass storage / Mbed Enabled (see http://mbed.org
    • Board power supply: through the USB bus or from an external 3 V or 5 V supply voltage
    • Comprehensive free software including a variety of examples, part of STM32CubeF4 MCU Package or STSW-STM32138, for using legacy standard libraries
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    Description:
    The 32F429IDISCOVERY Discovery kit leverages the capabilities of the STM32F429 high-performance microcontrollers, to allow users to develop rich applications easily with advanced graphic user interfaces
