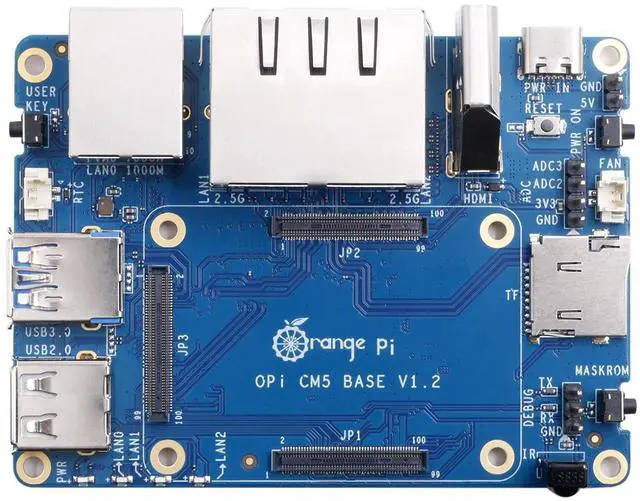

Orange Pi CM5 Base Board with 2×2.5G LAN Ports, 1×Gigabit LAN Port, 3×Standard CM5 Connectors, 4×Camera Ports, HDMI and USB, CM5 Carrier Board Compatible with Orange Pi CM5 Core Board
- [Official Orange Pi Base Board]: Orange Pi CM5 Base Board is an officially supported base board designed for perfect integration with the Orange Pi CM5 core board. It ensures optimal performance and seamless compatibility, making it an essential component for any Orange Pi CM5-based projects.

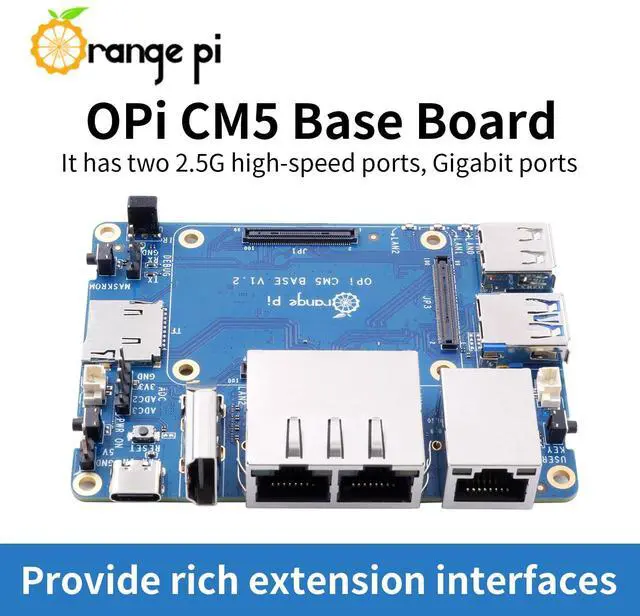

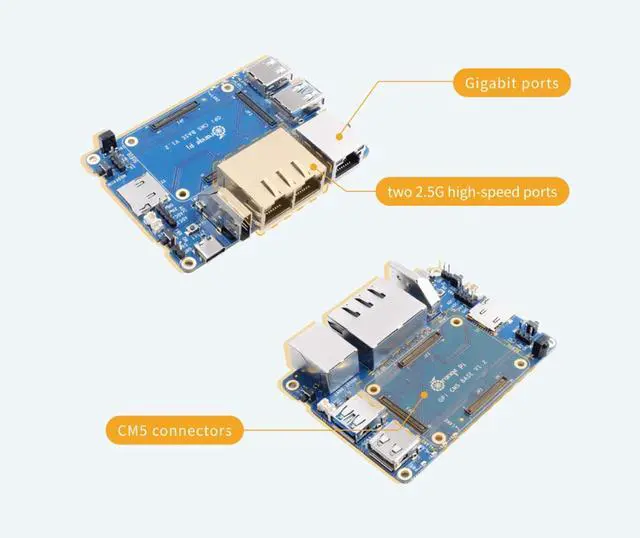

- [Functional Connectivity]: Featuring Two 2.5G LAN ports and One Gigabit LAN port, this CM5 base board delivers high-speed network connectivity, making it ideal for data-intensive applications and fast data transfers. Whether for networking, cloud computing, or IoT applications, it ensures reliable and rapid connections.

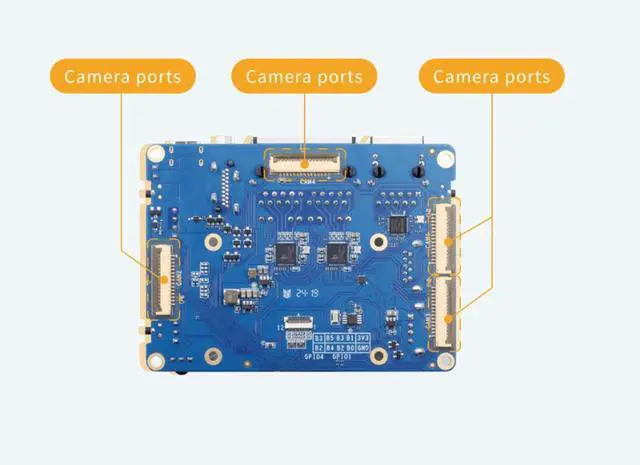

- [Versatile Camera Integration]: Orange Pi CM5 Base Board comes with 4 camera ports, allowing for advanced image and video processing. Perfect for surveillance systems, robotics, and other projects that rely on camera input, it supports a range of visual processing tasks with ease.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

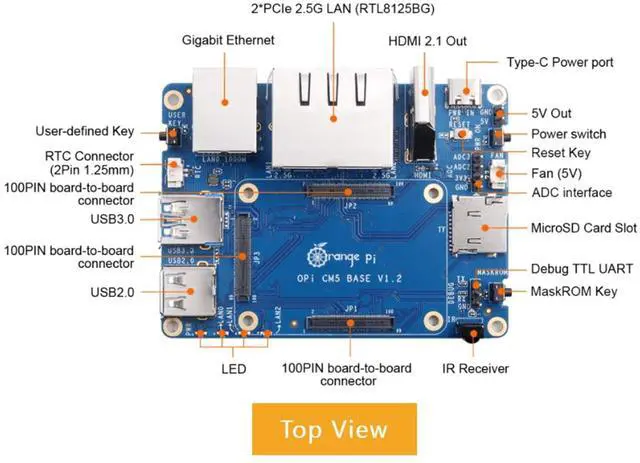

Hardware Parameters Board-to-board connector: 3*100pin, 0.4 mm pin Pitch, connector
model: df40c-100ds- 0.4 v
Memory: MicroSD (TF) card
USB: 1USB 3.0 (Host or Device mode supported) 1*USB 2.0
Video output: HDMI 2.1 with up to 8K @60Hz support
Camera: 4MIPI 2-lane
Ethernet PHY: 1*10/100/1000M (YT8531C) 2* 2.5G (RTL8125BG)
Infrared receiver: Remote infrared receiver
ADC: Reserved for two 12Bit ADC inputs, maximum 1.8V inputs
RTC: 2pin connector with 1.25 mm pitch
FAN: Connect DC 5V fan, 2pin vertical socket, Pitch: 1.25 mm
Expansion port: 12pin FPC socket Supports 3.3V 500mA power output Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces
Button: Power on/off key, MASKROM key, user-defined key, reset key
Power supply: Type-C, 5V @ 5A
LED: 1* red (POWER), 3* green (WAN, LAN1, LAN2)
Debugging: 3pin debug serial port (UART)
Supported OS: Orangepi
OSDroidOrangepi OSArchUbuntuDebianAndroid12 PCB: 90mm*66mm* 1.6 mm
Weight: 57.5 g
model: df40c-100ds- 0.4 v
Memory: MicroSD (TF) card
USB: 1USB 3.0 (Host or Device mode supported) 1*USB 2.0
Video output: HDMI 2.1 with up to 8K @60Hz support
Camera: 4MIPI 2-lane
Ethernet PHY: 1*10/100/1000M (YT8531C) 2* 2.5G (RTL8125BG)
Infrared receiver: Remote infrared receiver
ADC: Reserved for two 12Bit ADC inputs, maximum 1.8V inputs
RTC: 2pin connector with 1.25 mm pitch
FAN: Connect DC 5V fan, 2pin vertical socket, Pitch: 1.25 mm
Expansion port: 12pin FPC socket Supports 3.3V 500mA power output Configurable UART, PWM, I2C, SPI, CAN, GPIO and other functional interfaces
Button: Power on/off key, MASKROM key, user-defined key, reset key
Power supply: Type-C, 5V @ 5A
LED: 1* red (POWER), 3* green (WAN, LAN1, LAN2)
Debugging: 3pin debug serial port (UART)
Supported OS: Orangepi
OSDroidOrangepi OSArchUbuntuDebianAndroid12 PCB: 90mm*66mm* 1.6 mm
Weight: 57.5 g
