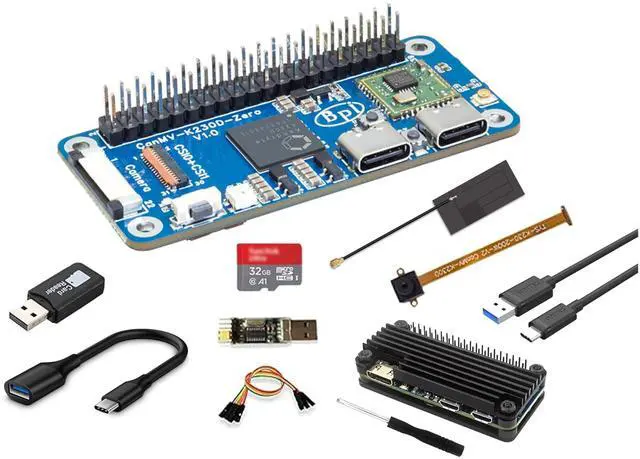

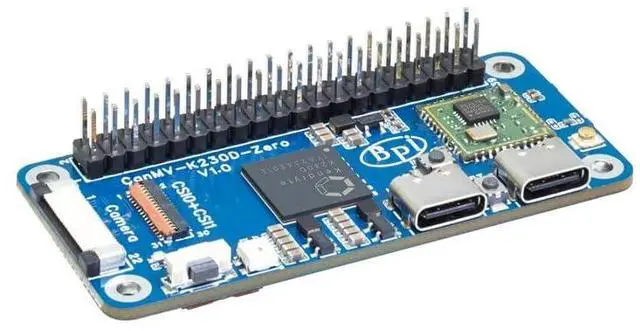

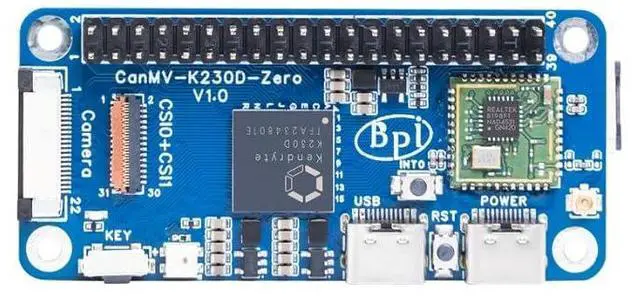

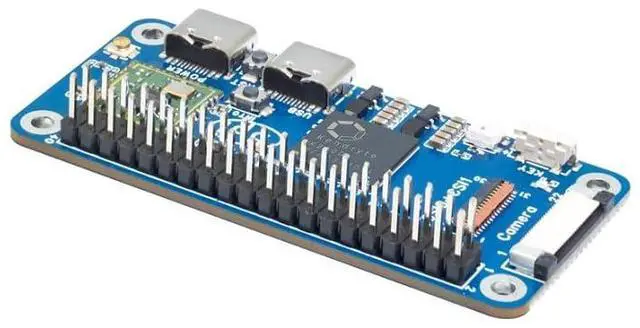

Banana Pi CanMV-K230D Zero AI Single Board Computer, K230D C908 RISC-V CPU Restnet50 KPU 3D DPU, LPDDR4 RAM H.264/H.265 VPU, for DIY Projects IoT Devices Programming (K230D SET2)
- [Rich Integrated Units] Banana Pi BPI-CanMV-K230D Zero development board is powered by Gentech C908 dual-core RISC-V CPU (CPU1: 1.6GHz, supports RVV1.0, CPU2: 800MHz). Third-generation KPU, support INT8/INT16, built-in 3D structural depth engine DPU, Support H.264/H.265 VPU. 128MB LPDDR4 RAM, onboard TF card expansion interface, maximum support up to 1TB.
- [Upgraded CanMV-K230D RISC-V SBC] Banana Pi BPI CanMV-K230D Zero single board computer adopted Kendryte's latest generation AIoT SoC Canaan K230D Chip. Supporting a wide range of DIY projects, IoT devices and embedded systems, the Canmv-K230D Zero SBC helps you start your innovation journey, whether it's learning to program, innovating with edge AI audio/video products, or evaluating performance.
- [Specialized Hardware Acceleration] Banana Pi BPI CanMV-K230D Zero single board computer is also equipped with rich peripheral interfaces, as well as 2D, 2.5D and other scalar, vector, graphics and other specialized hardware a
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
-Specification-
SOC: Rockchip RK3576
CPU:
Gentech C908 Dual-Core RISC-V CPU
CPU 1: 1. 6GHz, supports RVV 1.0
CPU 2: 800 MHz
KPU: Third-generation KPU, supports INT8/INT16 and other data types.
Typical network performance: Restnet50 amount to 85fps INT8 Mobilenet v2 amount to 670fps INT8; YoloV5s amount to 38fps INT8
DPU: Built-in 3D structured light depth engine, maximum resolution support up to 1920x1080
VPU: Built-in H. 264/H. 265 hardware codecs
Image Input:
2 lane MIPI-CSI x1 + 4 lane MPIP-CSI x1; Maximum resolution to 4K HD
Display output: MIPI DSI interface, supports up to 1080P display output
Operating Memory: 128MB LPDDR4 2666Mbps
Storage Expansion: Onboard TF card expansion interface, support up to 1TB
USB: 1 USB 2.0 interface, support OTG function
Network: 2.4G Wi-Fi BT
Audio: On-board microphone x1
GPIO: Expandable 40Pin expandable GPIO; supports I2C/UART/I2S/SPI/PWM/ADC/JTAG extension conversion
Buttons: Function button x1; Reset button x1
Power supply: USB Type-C 5V 2A

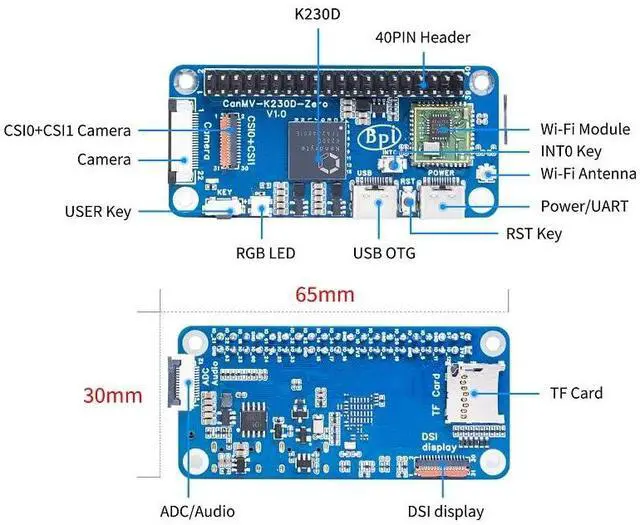

Dimensions:
Length: 65mm Width: 30mm Height: 7mm
Operating temperature: 080
-Package Content-
BPI-CanMV-K230D Zero Development Board Bundle x1
-Technical Support-
Please click "WayPonDEV" and ask a question.
