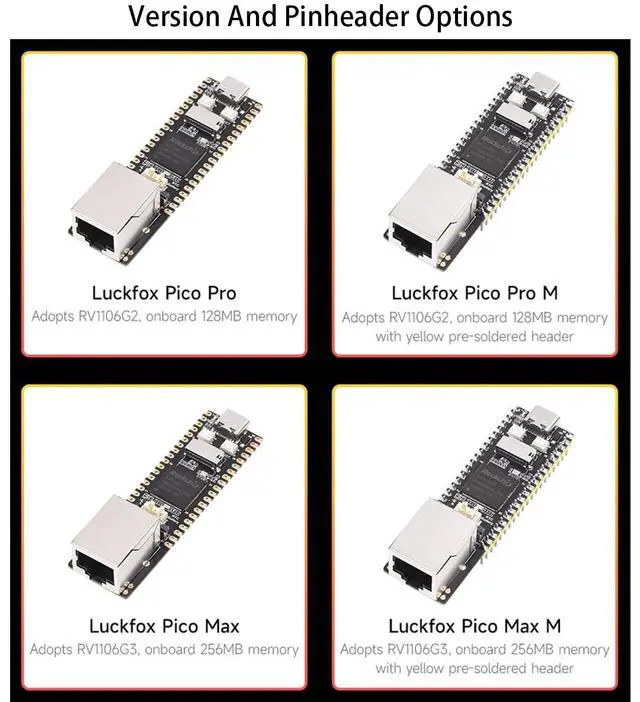

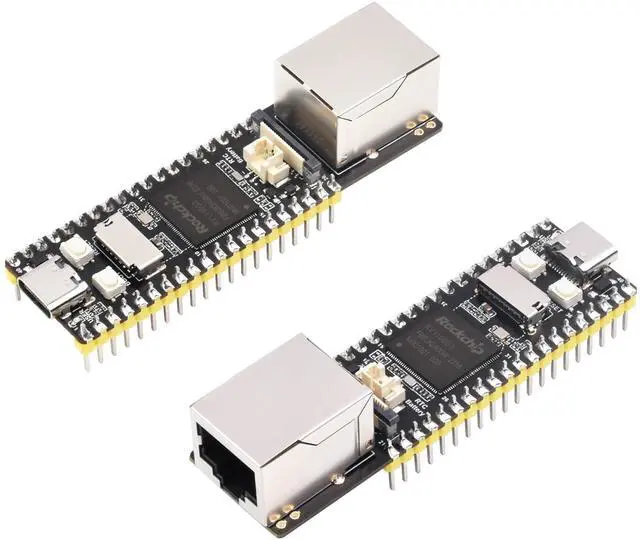

Wonrabai Pico Max Linux Micro Development Board with Pre-Soldered Header, RV1106G3 Chip, ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, 256MB Memory, USB, GPIO, I2C, Ethernet Connectivity

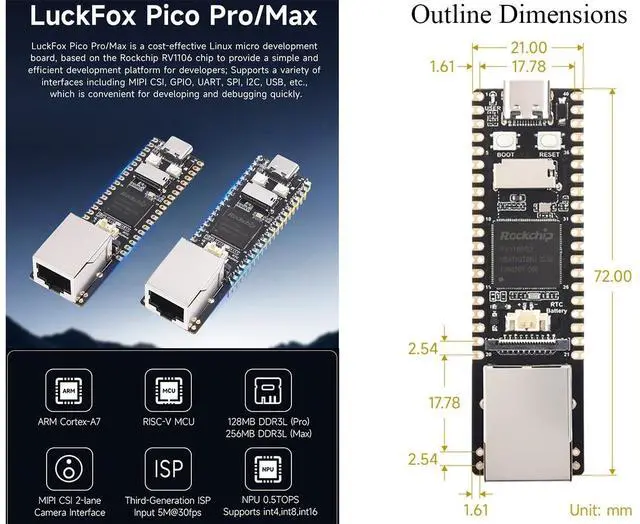

IntroductionLuckfox Pico Max with Pre-Soldered Header (256MB Memory) Linux Micro Development Board based on the Rockchip RV1106G3 chip. RV1106 is a highly integrated IPC visual processing SoC designed for AI-related applications. It is built on a single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU, and features a built-in NPU that supports INT4/INT8/INT16 mixed operations, with a computing power of up to 0.5 TOPs. FeaturesSingle-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4Built-in self-developed third-generation ISP 3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc. Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage spaceBuilt-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidthsIntegrated with built-in POR, audio codec and MAC PHY
SpecificationsNPU: 0.5TOPS, supports int4, int8
and int16ISP: Input 5M @30fps (Max)
Memory:
Max: 256MB
DDR3LUSB: USB 2.0
Host/DeviceCamera: MIPI
CSI 2-laneGPIO: 26 x
GPIO pinsEthernet port: 10/100M Ethernet controller and embedded PHY

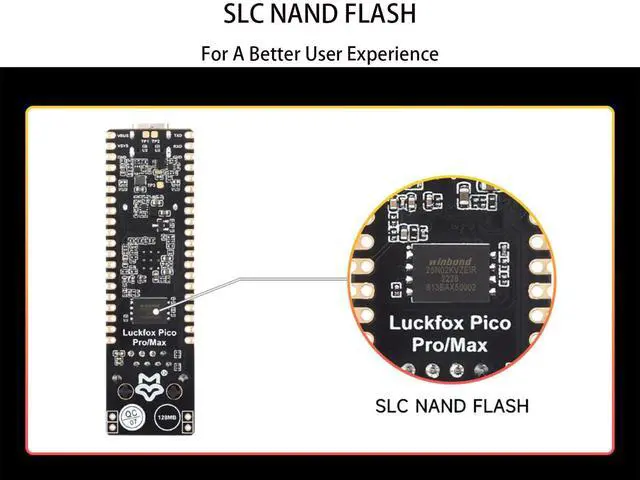

Default Storage: SPI NAND FLASH (256MB) Comes with Online Tutorial and
Online Development Resource: n9. cl/7hvnxPackage ContentLuckfox Pico Max with Pre-Soldered Header x1
