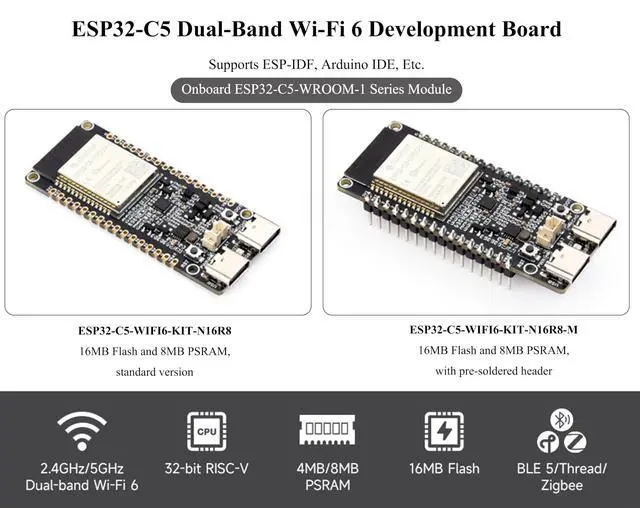

ESP32-C5 Dual-Band Wi-Fi 6 Development Board with Pre-Soldered Header, 240MHz RISC-V Processor,Onboard ESP32-C5-WROOM-1 Series Module, Multi-Protocol RISC-V MCU, 16 MB Flash and 8 MB PS-RAM

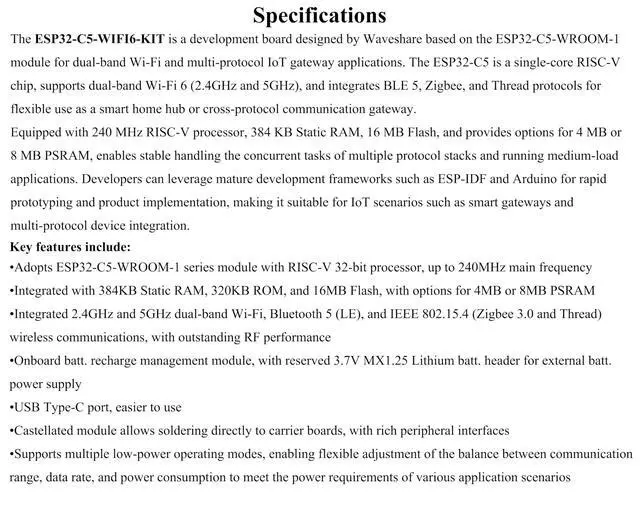

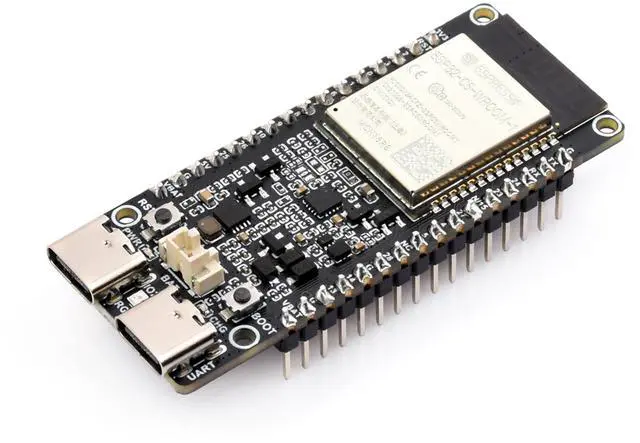

The ESP32-C5-WIFI6-KIT is a development board (with Pre-Soldered Header) which is based on the ESP32-C5-WROOM-1 module for dual-band Wi-Fi and multi-protocol IoT gateway applications. ^^ Equipped with 240 MHz RISC-V processor, 384 KB Static RAM, 16 MB Flash, and provides options for 4 MB or 8 MB PS-RAM, enables stable handling the concurrent tasks of multiple protocol stacks and running medium-load applications. ^^ The ESP32-C5 is a single-core RISC-V chip, supports dual-band Wi-Fi 6 ( 2.4GH z and 5GHz), and integrates BLE 5, Zigbee, and Thread protocols for flexible use as a smart home hub or cross-protocol communication gateway.

^^ Onboard batt. recharge management module, with reserved 3.7V MX 1.25 Lithium batt. header for external batt. power supply. USB Type-C port, easier to use. Castellated module allows soldering directly to carrier boards, with rich peripheral interfaces. ^^ Supports multiple low-power operating modes, enabling flexible adjustment of the balance between communication range, data rate, and power consumption to meet the power requirements of various application scenarios ^^ Comes with Online Tutorial Usage Guide and Online Development Resource, Please
check: bit. ly/3XbACdR
