PCIe to M.2 Adapter Board for Raspberry Pi 5, with Cooling Fan and Aluminium Heatsink,Support 2242/2230 Size NVMe M.2 SSD, 8Gbps Data Rate, Pi 5 NVMe HAT Support Gen2 and Gen3 Modes

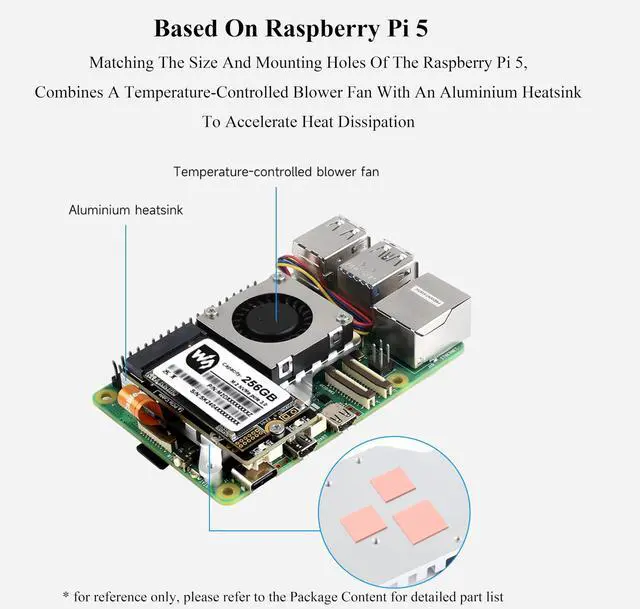

PCIe To M.2 Adapter Board (E) for Raspberry Pi 5, Compact Size, Cooling Fan All-in-One Design, combines A Temperature-Controlled Blower Fan with an aluminium heatsink to accelerate heat dissipation
NVMe Solid State Drives Support ---Compatible With 2242 / 2230 Size M.2 Solid State Drives. Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive
8Gbps Data Rate ---Improves reading/writing speed of your Pi
Connecting to PI5 via 16PIN Cable ---Based on 16PIN PCIe Interface of Raspberry Pi 5

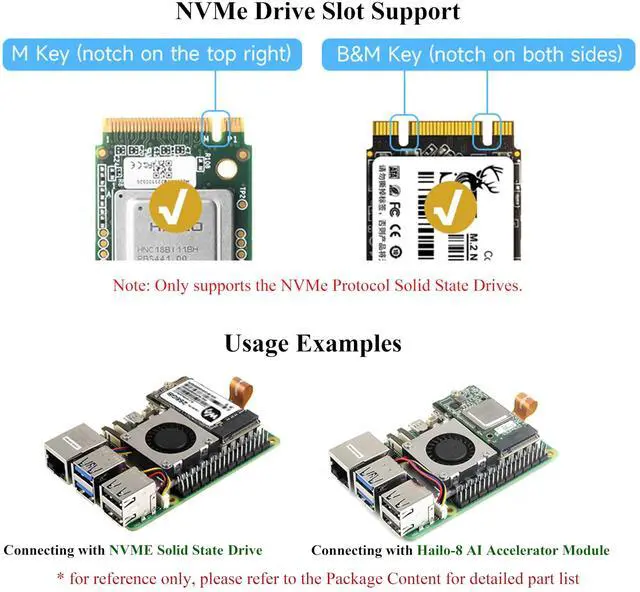

NVMe Drive Slot Support--- Note: Only supports the NVMe Protocol Solid State Drives
Onboard Dual LED Indicators --- Easy to monitor the Working Status
Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/vsck5

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Features1. PCIe To M. 2 Adapter Board (E) for Raspberry Pi 5, Compact Size, Cooling Fan All-in-One Design, combines A Temperature-Controlled Blower Fan with an aluminium heatsink to accelerate heat dissipation2. NVMe Solid State Drives Support ---Compatible With 2242 / 2230 Size M. 2 Solid State Drives. Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive3. 8Gbps Data Rate ---Improves reading/writing speed of your Pi4. Connecting to PI5 via 16PIN Cable ---Based on 16PIN PCIe Interface of Raspberry Pi 55.
NVMe Drive Slot Support--- Note: Only supports the NVMe Protocol Solid State Drives. 6. Onboard Dual LED Indicators --- Easy to monitor the Working StatusComes with Online Tutorial Usage Guide and Online Development Resource, Please
check: n9.

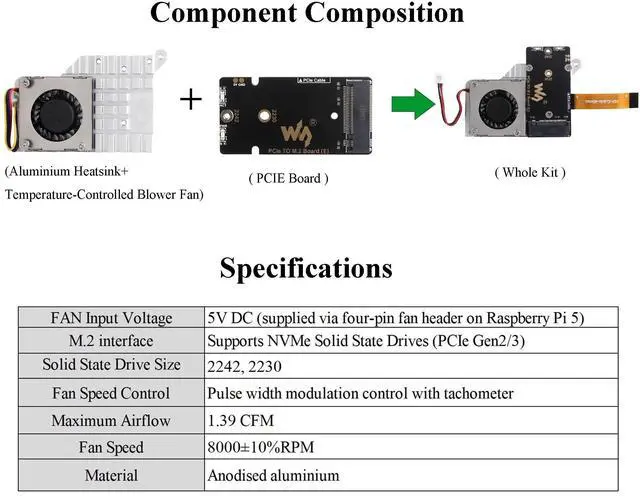

cl/vsck5SpecificationsFAN Input voltage: 5V DC (supplied via four-pin fan header on Raspberry Pi 5)M.
2 interface: Supports NVMe Solid State Drives (PCIe Gen2/3)Solid State
Drive size support: 2242, 2230Fan
speed control: Pulse width modulation control with tachometerMaximum airflow: 1.39 CFM
Fan speed: 800010%RPM
Material: Anodised aluminiumPackage ContentPCIe TO M. 2 Board (E) x1MX 1.25 2PIN cable x1Thermal pad (3PCS) x1Screws pack x1
