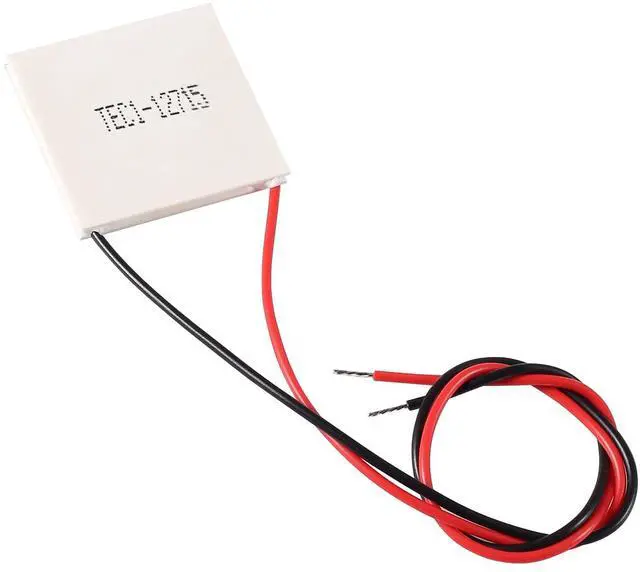

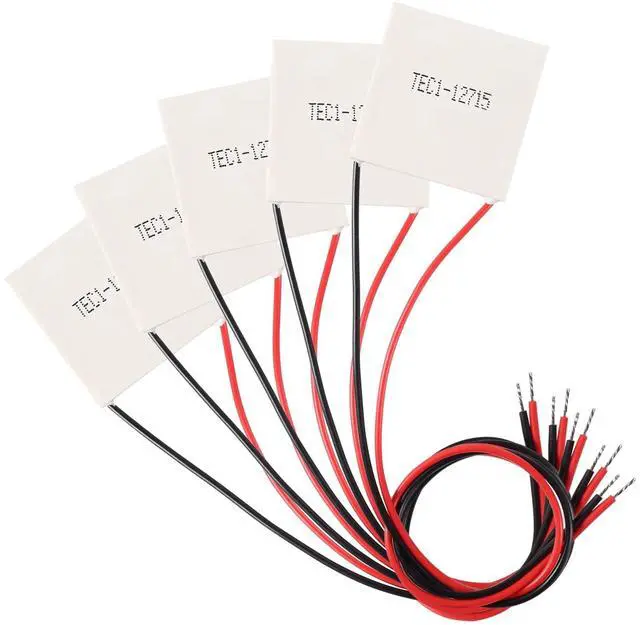

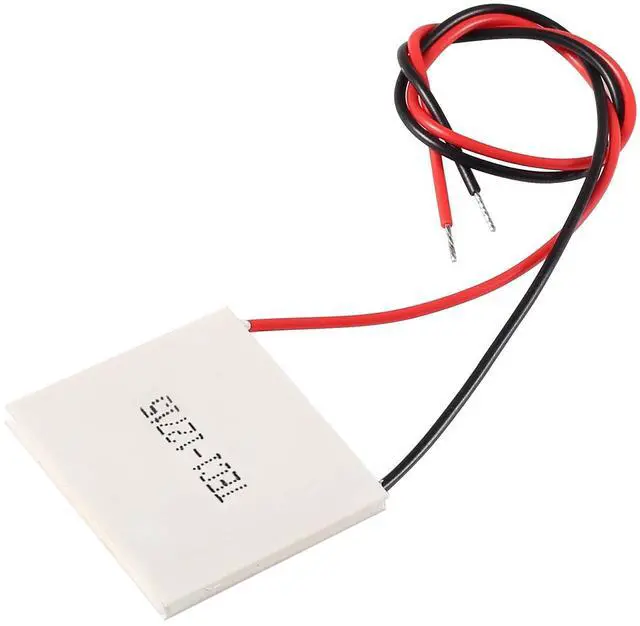

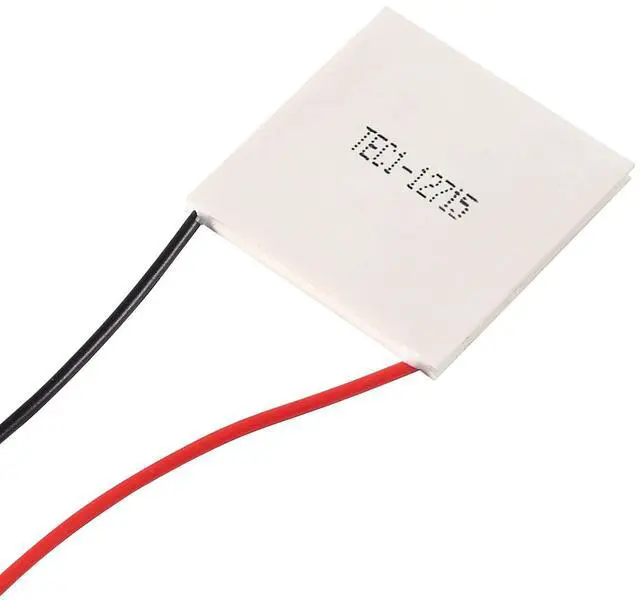

5Pcs TEC1-12715 Heatsink 108W 12V-15.4V Thermoelectric Cooler 40mmX40mm Cooling Peltier Plate Module for Semiconductor Thermoelectric Heatsink Generation
- TEC1-12715 12715 108W 12V TEC thermoelectric cooler peltier of semiconductor refrigeration
- Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources
- Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts, overall dimensions: 40 X 40mm
- These devices must be used in conjunction with a heat sink to avoid burned
- Compact structure, high performance, reliable, very easy to install.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Dimensions: 40*40*
3.2 mmWire size: lead length 2008mm RV standard wire single head 5mm tinnedInternal resistance: 0.8 ~ 0.9 (ambient temperature 231C, 1kHZ
Ac test)Large temperature difference: above 62
CWorking current: Imax= 11.8A (15A for large voltage 15.5V startup)Rated voltage: DC12V
(large voltage: 15.5V
)Cooling power: 108W (the cooling surface temperature is too high will reduce the cooling power)
Assembly pressure: 85N/cm2Working
environment: Temperature range -55 C ~ 83 C (excessive ambient temperature will directly affect cooling efficiency)
Packaging process: four weeks standard 704 silicone rubber sealPower requirements: single voltage 12V, current 15A or more working power (can be used in series and parallel)
Device characteristics: red line is positive, black line is negative (there is a literal surface for the cooling surface, no literal surface is the heat dissipation surface)Package include: 5 x TEC1-12715 heatsink thermoelectric cooler module
3.2 mmWire size: lead length 2008mm RV standard wire single head 5mm tinnedInternal resistance: 0.8 ~ 0.9 (ambient temperature 231C, 1kHZ
Ac test)Large temperature difference: above 62
CWorking current: Imax= 11.8A (15A for large voltage 15.5V startup)Rated voltage: DC12V
(large voltage: 15.5V
)Cooling power: 108W (the cooling surface temperature is too high will reduce the cooling power)
Assembly pressure: 85N/cm2Working
environment: Temperature range -55 C ~ 83 C (excessive ambient temperature will directly affect cooling efficiency)
Packaging process: four weeks standard 704 silicone rubber sealPower requirements: single voltage 12V, current 15A or more working power (can be used in series and parallel)
Device characteristics: red line is positive, black line is negative (there is a literal surface for the cooling surface, no literal surface is the heat dissipation surface)Package include: 5 x TEC1-12715 heatsink thermoelectric cooler module
