FanyiTek USB SD Controller Board for 28.6 inch G286HAN01.0 1920x540 LVDS 51 pin IPS Stretched Bar Display LCD Screen
- Compatible screen model no.Working with 28.6 inch 1920x540 G286HAN01.0 LVDs 51pins WLED Wide Strip IPS LCD Screen

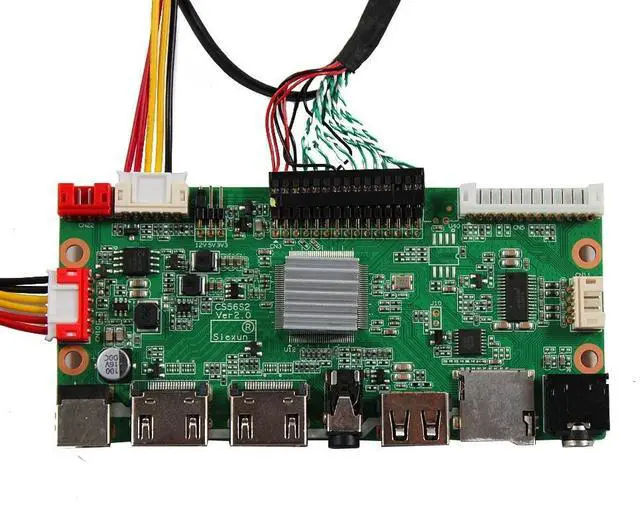

- LCD Controller Board Video input:USB SD AV ,Audio Output : Speaker Earphone (8ohm 2W 4Pin PH2.0 connection) , Please use in insulated environment.
- Input Power12V DC more than 4A ,port size :5.5x2.1mm.Pls prepare the power adapter by yourself.

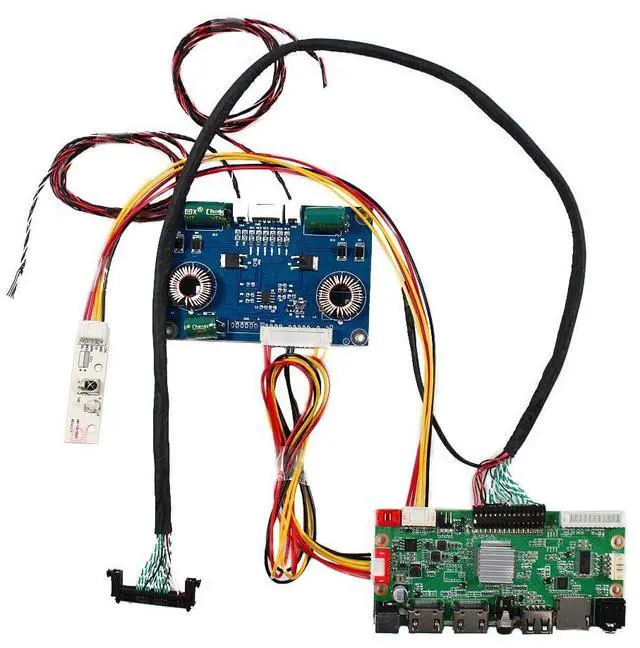

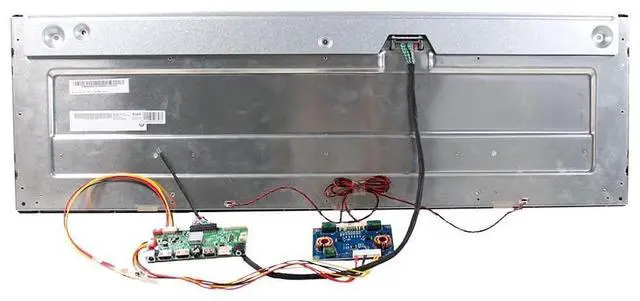

- Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.

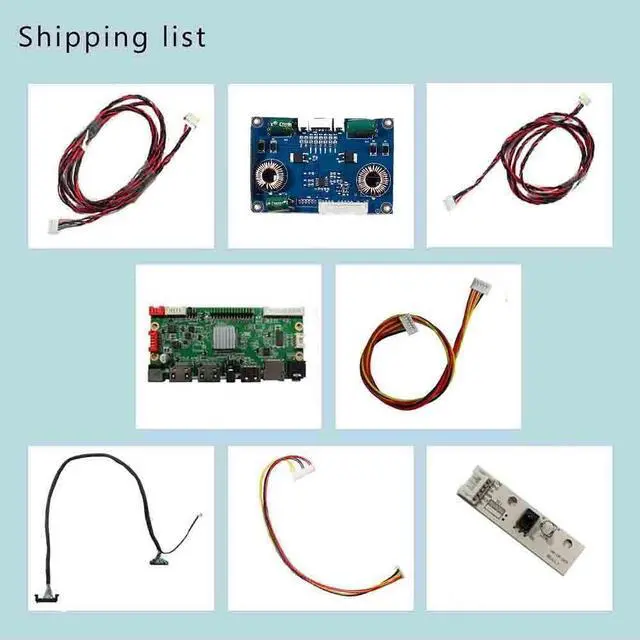

- Packing lists1 USB SD AV LCD Controller Board,1 Converter Board,1 Signal Cable,1 Keyboard With Cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LCD Controller Board: Input
Power Adapter: 12Vdc more than 4ACome In Standby Model When Not Input SignalStandby Model < 0.3WM ultimedia supports
MP4OSD: Support
Menu Contrast BrightnessAudio Input: USB
SD AVAudio Output: Speaker
EarphoneKey Board: Power
Menu Up Down ExitLanguage: EnglishBoard
Size: 107mm x 50mm x 15mmCompatible
Work With: 28.6 inch 1920x540G286HAN 01.0P acking
List: 1 USB SD AV LCD Controller Board1 Converter Board1 Cable1 Keyboard With Cable
Power Adapter: 12Vdc more than 4ACome In Standby Model When Not Input SignalStandby Model < 0.3WM ultimedia supports
MP4OSD: Support
Menu Contrast BrightnessAudio Input: USB
SD AVAudio Output: Speaker
EarphoneKey Board: Power
Menu Up Down ExitLanguage: EnglishBoard
Size: 107mm x 50mm x 15mmCompatible
Work With: 28.6 inch 1920x540G286HAN 01.0P acking
List: 1 USB SD AV LCD Controller Board1 Converter Board1 Cable1 Keyboard With Cable
