FanyiTek VGA Controller Board eDP for 27 inch 2560x1440 2K LM270WQ1 SDA1 SDA2 30 pin WLED LCD Screen
- LCD Controller Board Work for 2560x1440 30pin WLED EDP LCD Screen,Video input: Audio Input: PC-Audio In,Audio Output: Speaker(4Pin PH2.0 connector).
- Input Power Supply12V DC more than 4A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
- Compatible Screen models LM270WQ1-SDA1 LM270WQ1-SDA2
- Important Please use in insulated environment. Before purchasing, Pls confirm your Display model firstly, which mark at the back side of the panel label,need to open the rear case to check.

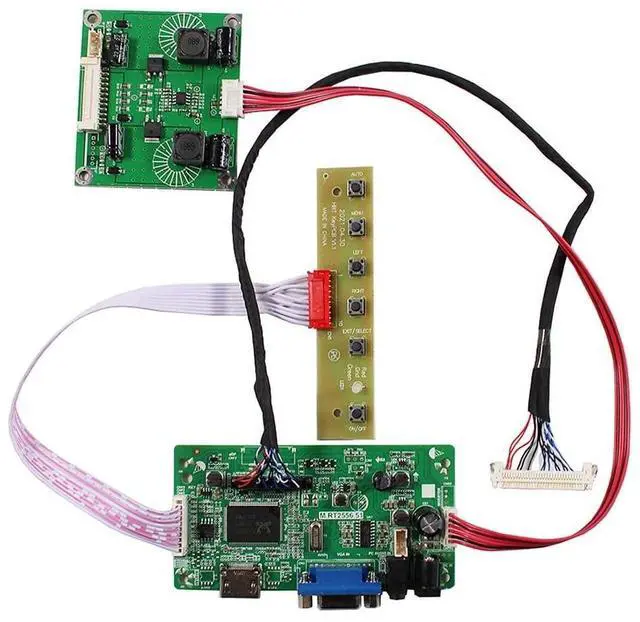

- Plug and play Connecting for the cables and ports according to link picture details ,Power on ,Keyboard LED light become green,Then enter into signal cable ,with correct resolution ,the screen can work well.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

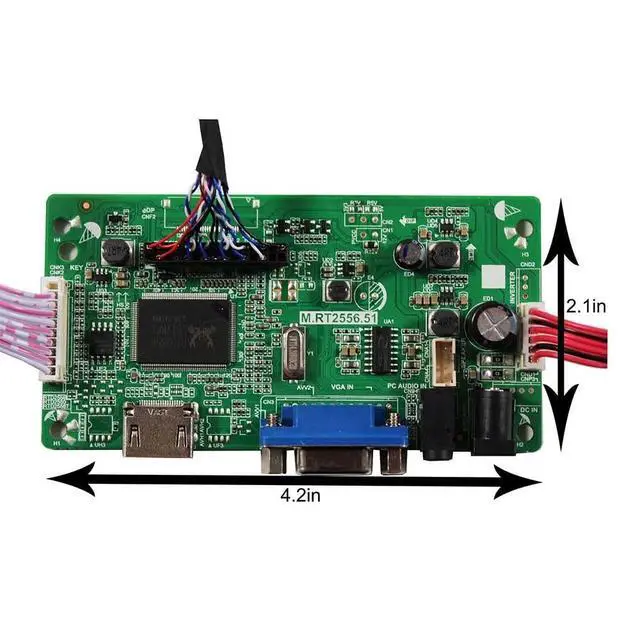

LCD Controller Board: VGA LCD Controller Board Work for
LCD ScreenInput Power Adapter: 12Vdc More than 4A. Come In Standby Model When Not Input SignalStandby Model < 0.3WA udio
Input: PC-Audio
InAudio Output:
SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: EnglishBoard
Size: 107mm x 55mm x 16mmCompatible
Work With: 27inch 2560x1440LM270WQ1-SDA1

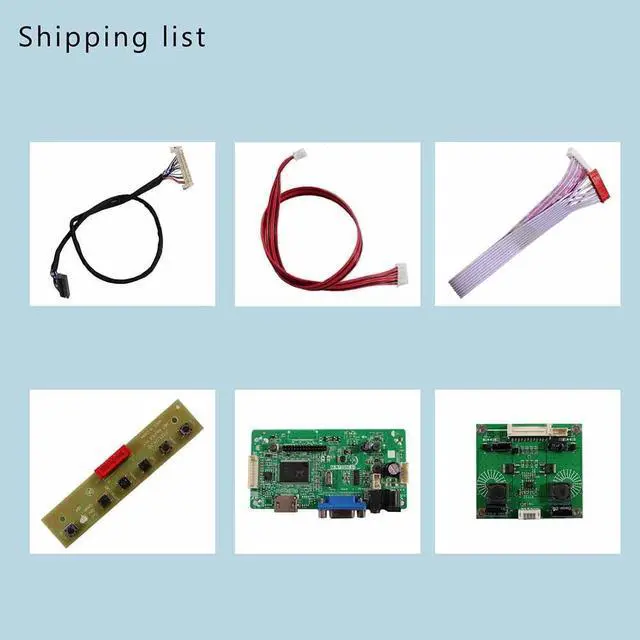

LM270WQ1-SDA2Packing list: 1 VGA LCD Controller Board VS-RTD2556HV-V21 Signal Cable1 Controller Card1 30pin Cable1 Keyboard With Cable
LCD ScreenInput Power Adapter: 12Vdc More than 4A. Come In Standby Model When Not Input SignalStandby Model < 0.3WA udio
Input: PC-Audio
InAudio Output:
SpeakerOSD: Brightness Contrast VOL+ VOL- Language And So OnLanguage: EnglishBoard
Size: 107mm x 55mm x 16mmCompatible
Work With: 27inch 2560x1440LM270WQ1-SDA1
LM270WQ1-SDA2Packing list: 1 VGA LCD Controller Board VS-RTD2556HV-V21 Signal Cable1 Controller Card1 30pin Cable1 Keyboard With Cable
