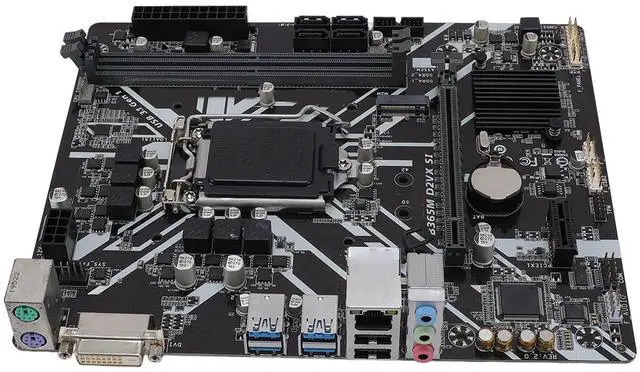

B365M D2VX SI M ATX Motherboard for 9th 8th Gen for Core I9 I7 I5 I3, DDR4x2 DIMM Desktop Computer Mainboard, Double Channel DDR4, PCIe 3.0, USB 2.0

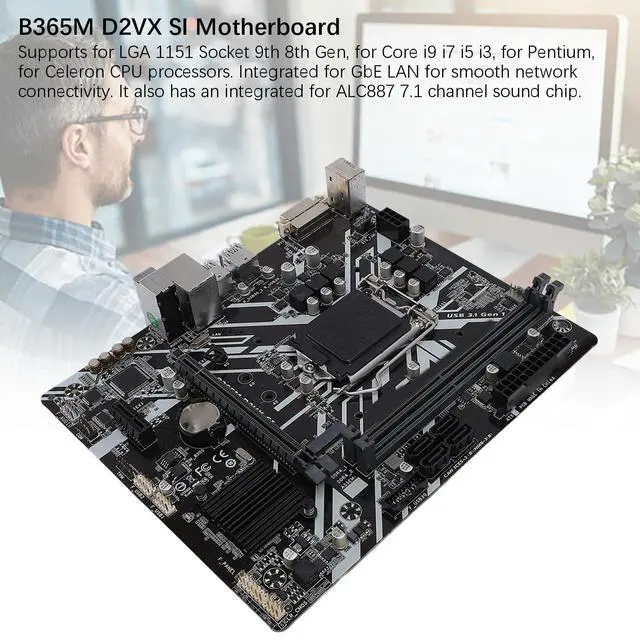

- B365M D2VX SI Motherboard: Supports for LGA 1151 Socket 9th 8th Gen, for Core i9 i7 i5 i3, for Pentium, for Celeron CPU processors. Integrated for LAN for smooth network connectivity. It also has an integrated for ALC887 7.1 channel sound chip.

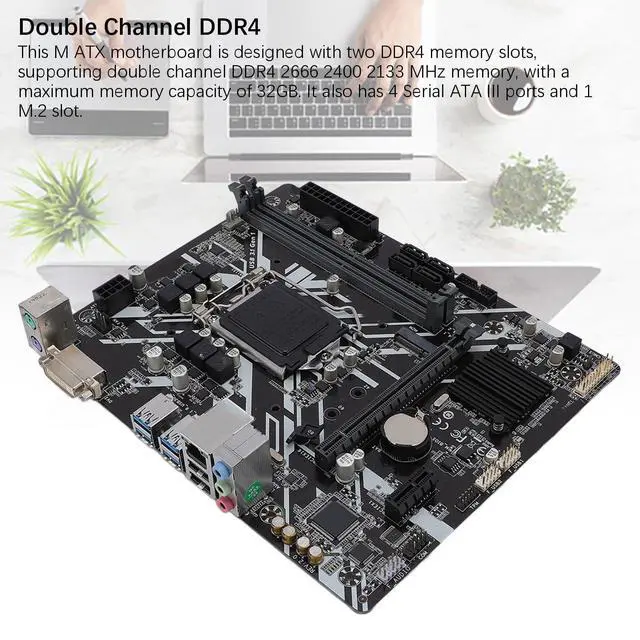

- Double Channel DDR4: This M ATX motherboard is designed with two DDR4 memory slots, supporting double channel DDR4 2666 2400 2133 MHz memory, with a maximum memory capacity of 32GB. It also has 4 Serial ATA III ports and 1 M.2 slot.

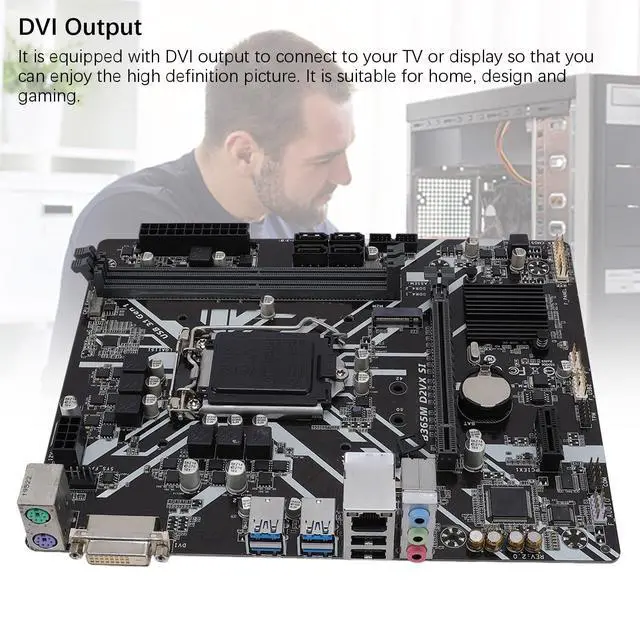

- DVI Output: It is equipped with DVI output to connect to your TV or display so that you can enjoy the high definition picture. It is suitable for home, design and gaming.
- Material, Multi Phase Power Supply: It is made of sturdy material to provide stable performance and long service life. It uses all solid state capacitors and 8 plus 24 Pin power connectors to make sure the board performance is stable.
- PCI E Slot: PCI E 3.0 standard with one PCI E x 16 slot and two PCI E x 1 slots for expanding other PCI
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Item
Type:
MotherboardMaterial: PCB, MetalBattery
Type: 240mAh CR2032 Battery (Built in)
Motherboard Model: B365M
D2VX SIChipset: B365 High
Speed ChipsetSound Chip: Integrated For ALC887 7.1 Channel
Sound ChipNetwork Chip: Onboard for Gigabit Network ChipSupported
CPU Types: 9th and 8th Generation For Core i9 i7 i5 i3, For Pentium, For Celeron Series CPU Processors (CPU Excluded)
CPU Socket: For LGA 1151Memory
Type: 2 x DDR4 DIMM (Memory Module Excluded)
Maximum Memory Capacity: 32GB (Memory Module Excluded)
Memory Description: Supports Double Channel DDR4 2666 2400 2133MHz Memory (Memory Module Excluded)
PCI E Standard: PCI E 3.0PCI
E Slots: 1 x PCI E X16 Graphics Slot, 2 x
PCI E X1 SlotsStorage Interfaces: 4 x Serial ATA III Interfaces, 1 x M.
2 SlotsUSB Interfaces: 6 x USB 3.1 Gen 1 Ports (4 on the Rear Panel, 2 Accessed via Ribbon Cable from Motherboard USB Header); 6 x USB 2.0 1.1 Ports (2 on the Rear Panel, 4 Accessed via Ribbon Cable from Motherboard
USB Header)Video Interface: 1 x
DVI InterfacePower Connector: 1 x 8 Pin Power Connector, 1 x 24 Pin
Power ConnectorOther Interfaces: 1 x Mouses Port, 1 x Keyboard Port, 4 x USB 3.1 Gen 1 Ports, 2 x USB 2.0 Ports, 1 x RJ 45 Ethernet Port, 3 x Sound PortsMotherboard
Form Factor: M ATX
How to
Use: Install and use.
Packing List: 1 x Motherboard
Type:
MotherboardMaterial: PCB, MetalBattery
Type: 240mAh CR2032 Battery (Built in)
Motherboard Model: B365M
D2VX SIChipset: B365 High
Speed ChipsetSound Chip: Integrated For ALC887 7.1 Channel
Sound ChipNetwork Chip: Onboard for Gigabit Network ChipSupported
CPU Types: 9th and 8th Generation For Core i9 i7 i5 i3, For Pentium, For Celeron Series CPU Processors (CPU Excluded)
CPU Socket: For LGA 1151Memory
Type: 2 x DDR4 DIMM (Memory Module Excluded)
Maximum Memory Capacity: 32GB (Memory Module Excluded)
Memory Description: Supports Double Channel DDR4 2666 2400 2133MHz Memory (Memory Module Excluded)
PCI E Standard: PCI E 3.0PCI
E Slots: 1 x PCI E X16 Graphics Slot, 2 x
PCI E X1 SlotsStorage Interfaces: 4 x Serial ATA III Interfaces, 1 x M.
2 SlotsUSB Interfaces: 6 x USB 3.1 Gen 1 Ports (4 on the Rear Panel, 2 Accessed via Ribbon Cable from Motherboard USB Header); 6 x USB 2.0 1.1 Ports (2 on the Rear Panel, 4 Accessed via Ribbon Cable from Motherboard
USB Header)Video Interface: 1 x
DVI InterfacePower Connector: 1 x 8 Pin Power Connector, 1 x 24 Pin
Power ConnectorOther Interfaces: 1 x Mouses Port, 1 x Keyboard Port, 4 x USB 3.1 Gen 1 Ports, 2 x USB 2.0 Ports, 1 x RJ 45 Ethernet Port, 3 x Sound PortsMotherboard
Form Factor: M ATX
How to
Use: Install and use.
Packing List: 1 x Motherboard
