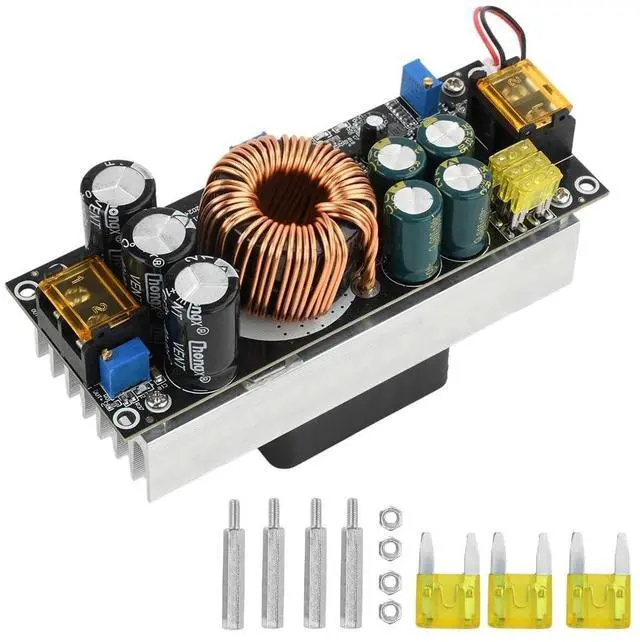

1800W DC Boost Converter,Aideepen 40A 14V-85V to 14-120V Boost Converter Voltage Regulator Car Step-up Power Supply Module DC Adjustable Voltage Converter
- Upgrade1: Adjustment of higher input and output parameters, circuit optimization, more stable output voltage, and tin window processing for high current circuits. An additional copper resistor has been added for output current detection, making excessive current more stable.
- Upgrade2: Added a switch MOS transistor that can quickly turn off the discharge circuit, preventing the risk of MOS transistor breakdown and short circuit; Add 3 20 MAP fuses, which can be replaced by oneself if burned out.

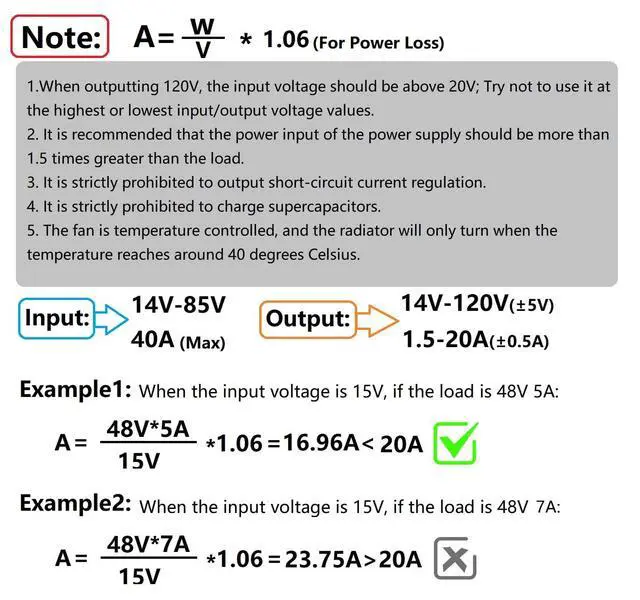

- Input voltage range: 14-85VOutput voltage range: 14-120V5V
- Input Current: 40AMax); Output Current: 1.5-20A0.5A
- FeaturesInput overcurrent protection; Short circuit protection; Input reverse connection protection; Low battery protection.
- Widely Applicationcan be used for high power solar street lamp driving, various LED lighting CV driving, vehicle-mounted and mobile device power, DIY adjustable CV CC power, solar power charging, and various batteries charging.
- Reminder Before te
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Upgrade1: Adjustment of higher input and output parameters, circuit optimization, more stable output voltage, and tin window processing for high current circuits. An additional copper resistor has been added for output current detection, making excessive current more stable.
^^ Upgrade2: Added a switch MOS transistor that can quickly turn off the discharge circuit, preventing the risk of MOS transistor breakdown and short circuit; Add 3 20 MAP fuses, which can be replaced by oneself if burned out.
^^ Input voltage range: 14-85VOutput
voltage range: 14-120V5V ^^
Input Current: 40AMax);
Output Current: 1.5 -20A 0.5A ^^ FeaturesInput overcurrent protection; Short circuit protection; Input reverse connection protection; Low battery protection. ^^ Widely Applicationcan be used for high power solar street lamp driving, various LED lighting CV driving, vehicle-mounted and mobile device power, DIY adjustable CV CC power, solar power charging, and various batteries charging. ^^ Reminder Before testing important projects, please conduct simulation testing to truly understand and avoid affecting the effectiveness of your important projects.
^^ Upgrade2: Added a switch MOS transistor that can quickly turn off the discharge circuit, preventing the risk of MOS transistor breakdown and short circuit; Add 3 20 MAP fuses, which can be replaced by oneself if burned out.
^^ Input voltage range: 14-85VOutput
voltage range: 14-120V5V ^^
Input Current: 40AMax);
Output Current: 1.5 -20A 0.5A ^^ FeaturesInput overcurrent protection; Short circuit protection; Input reverse connection protection; Low battery protection. ^^ Widely Applicationcan be used for high power solar street lamp driving, various LED lighting CV driving, vehicle-mounted and mobile device power, DIY adjustable CV CC power, solar power charging, and various batteries charging. ^^ Reminder Before testing important projects, please conduct simulation testing to truly understand and avoid affecting the effectiveness of your important projects.
