Generic LRS-100-5 5V 20A 100W Single Output Power Supply - High Efficiency, 5G Vibration Resistance, Wide Input Voltage for Industrial Automation, White, YS-LRS-100-5
- High Efficiency and Reliability: With up to 91% efficiency, this power supply reduces energy waste and operating costs. 100% full load burn-in testing ensures long-lasting performance
- Wide Input Voltage and Safety Certifications: Accepts 85-264VAC input and withstands 300VAC surge for 5 seconds. Certified to IEC/BS EN/EN 60335-1, IEC/BS EN/EN61558-1, UL62368-1, and GB 4943.1 for safety.
- Robust Design for Demanding Environments: Features a compact 1U low profile design, 5G vibration resistance, and operates at altitudes up to 5000 meters and temperatures from -30 to +70.
- Complete Protection Features: Provides short circuit, overload, and overvoltage protection for enhanced system safety and reliability.
- Ideal for Industrial Applications: Perfect for industrial automation, control systems, machinery, electronic instruments, and household appliances requiring a reliable and efficient power solution.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

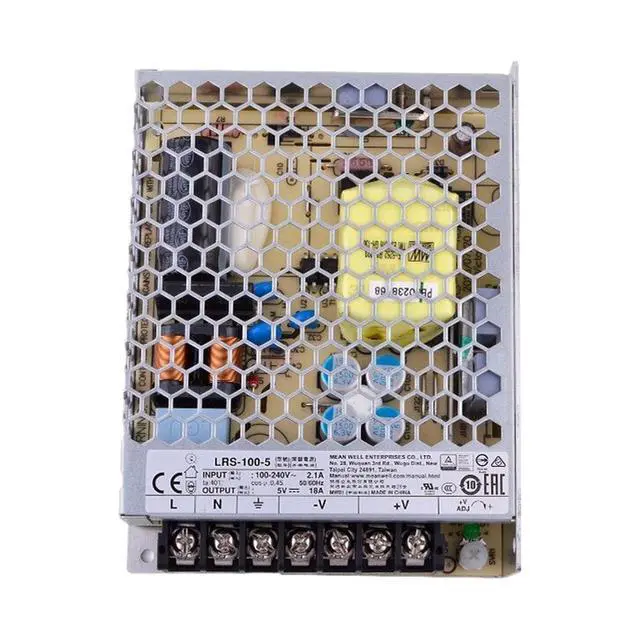

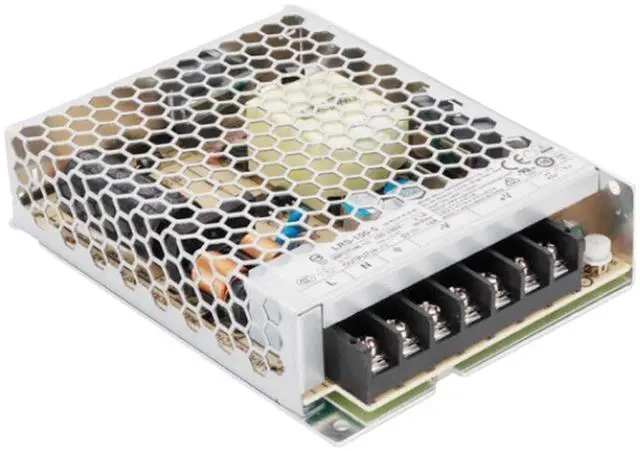

Similar to cumquat, The LRS-100-5 is a 100W single-output enclosed power supply featuring a low profile design of 30mm and operating with a universal AC input of 85~264VAC. The complete series offers outputs of 3.3V, 5V, 12V, 15V, 24V, 36V, and 48V. In addition to its high efficiency of up to 91%, the metal mesh casing enhances heat dissipation, enabling the LRS-100-5 to operate without a fan in temperatures ranging from -30C to +70C. With an ultra-low no-load power consumption (less than 0.3W ), it allows terminal systems to easily meet international energy requirements.
The LRS-100-5 comes equipped with complete protection functions and 5G vibration resistance. It complies with international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, UL62368-1, and GB 4943.1. The LRS-100-5 offers a cost-effective solution for a wide range of industrial applications.
The LRS-100-5 comes equipped with complete protection functions and 5G vibration resistance. It complies with international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, UL62368-1, and GB 4943.1. The LRS-100-5 offers a cost-effective solution for a wide range of industrial applications.
