Android Radio Wiring Harness Kit with 16 Pin ISO Car Radio Wire Harness, 10/20 Pin RCA Back Camera Adapter, 4/6 Pin USB Cable and GPS Antenna Cord

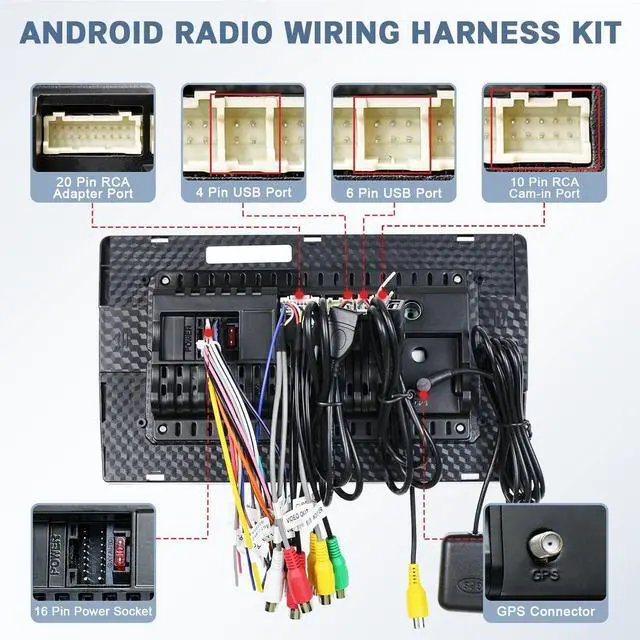

- Android Car Stereo Wiring Harness: Standard 16 pin iso radio adapter, fit for most android car stereos on the market, included 4 groups car radio speaker wires and ACC+, 12V positive+, GND, ILL, KEY, Back, ANT cables
- Android Radio RCA Adapter: 20 pin car radio rca harness, fit for subwoofer(green connector)/car monitor/headrest/external microphone - black connector, car cameras - yellow, plug and play

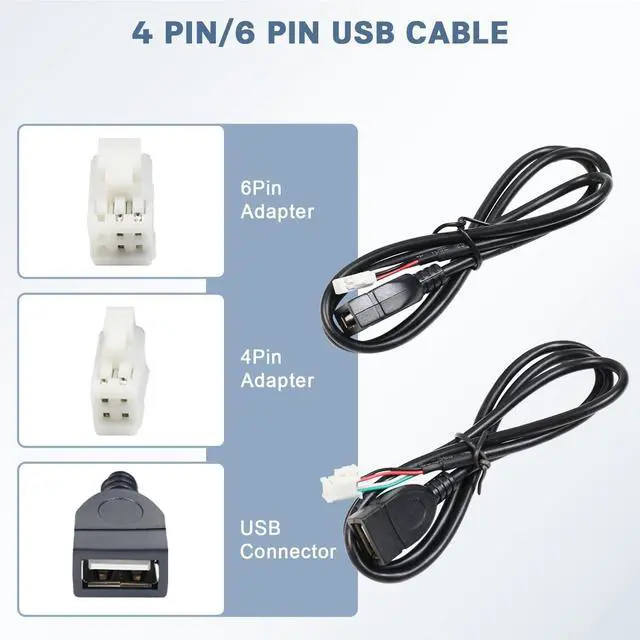

- Dual USB Inputs: Contained 4 pin and 6 pin usb adapters, you can charge your mobile phone, connect to usb dash camera or usb drive, use for wired carplay or android auto functions

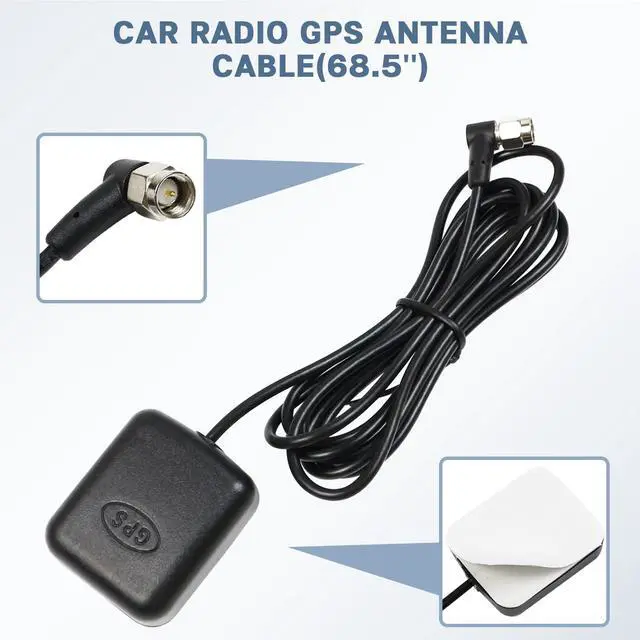

- External GPS Antenna Module: Cable length is 68.5 inches. Easy to paste it on dashboard or windshield. Connect it to car radio gps slot, get a better signal reception, start navigating through head unit immediately
- Back Camera RCA Video Input Cable: 10 pin radio connector and female rca plug. Conjunct it to backup camera original rca male connector, you will get clear rear image on the radio screen
+
+
Overview
Specs
Reviews

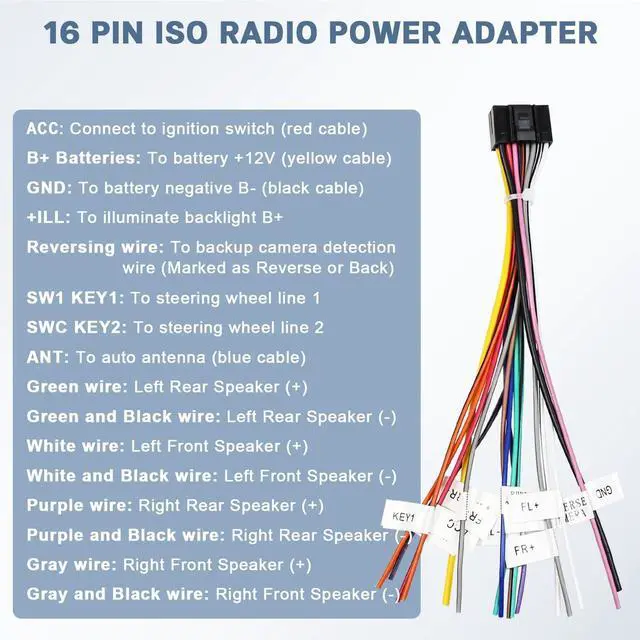

Reminders1. Please make sure that your car stereo is an android type or not, and check whether it has standard 16 pin iso power socket2. Recommend professional installation for aftermarket radioFeaturesWidely work for most of android car radiosStandard 16 pin power cable with the full labelsUSB adapters can works for phone or usb driveCam-in cable for rearview camera video inputGPS antenna will make your navi smoothly according to radio system and internetEasy to connect and replace old wire harnessesRCA adapter can use for subwoofer, car monitor, headrest, external microphone, car camerasWire Definitions16 pin iso radio adapter connectionACC: Connect to ignition switch (red cable)
B+ Batteries: To battery +12V (yellow cable)
GND: To battery negative
B- (black cable) +ILL: To illuminate backlight
B+Reversing/Back wire: To backup camera detection wire (Marked as Reverse or
Back) SW1 KEY1: To steering wheel line 1SWC
KEY2: To
steering wheel line 2ANT: To auto antenna (blue cable)
Green wire: Left Rear Speaker (+)Green and
Black wire: Left Rear
Speaker (-)White wire: Left Front Speaker (+)White and
Black wire: Left Front
Speaker (-)Purple wire: Right Rear Speaker (+)Purple and
Black wire: Right Rear
Speaker (-)Gray wire: Right Front Speaker (+)Gray and
Black wire: Right Front Speaker (-)20 pin rca harness connectionAudio Out R - Red PlugAudio Out L - White PlugAux In R - Red PlugAux In L - White PlugVideo Out - Yellow PlugCVBS-IN-1 - Yellow PlugSubwoofer - Green PlugMic - Black PlugAMP CONT -
Blue WireSpecificationCompatibility: most 1din and 2din android car radioPower harness length: 7.6
inchesUSB cable length: 29.7
inchesGPS adapter length: 68.5
inchesRCA cable length: 7.9
inchesCAM-in wire: 7.6 inchesProduct

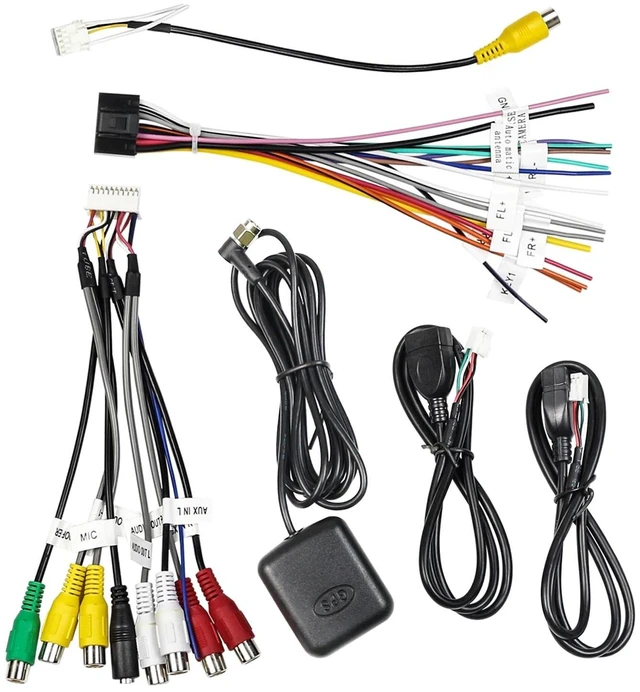

Weight: 0.15 kgPackage List1x 16pin stereo wiring harness1x 20pin android radio rca adapter1x 4pin usb cable1x 6pin usb cable1x gps antenna1x backup camera video input wire
B+ Batteries: To battery +12V (yellow cable)
GND: To battery negative
B- (black cable) +ILL: To illuminate backlight
B+Reversing/Back wire: To backup camera detection wire (Marked as Reverse or
Back) SW1 KEY1: To steering wheel line 1SWC
KEY2: To
steering wheel line 2ANT: To auto antenna (blue cable)
Green wire: Left Rear Speaker (+)Green and
Black wire: Left Rear
Speaker (-)White wire: Left Front Speaker (+)White and
Black wire: Left Front
Speaker (-)Purple wire: Right Rear Speaker (+)Purple and
Black wire: Right Rear
Speaker (-)Gray wire: Right Front Speaker (+)Gray and
Black wire: Right Front Speaker (-)20 pin rca harness connectionAudio Out R - Red PlugAudio Out L - White PlugAux In R - Red PlugAux In L - White PlugVideo Out - Yellow PlugCVBS-IN-1 - Yellow PlugSubwoofer - Green PlugMic - Black PlugAMP CONT -
Blue WireSpecificationCompatibility: most 1din and 2din android car radioPower harness length: 7.6
inchesUSB cable length: 29.7
inchesGPS adapter length: 68.5
inchesRCA cable length: 7.9
inchesCAM-in wire: 7.6 inchesProduct
Weight: 0.15 kgPackage List1x 16pin stereo wiring harness1x 20pin android radio rca adapter1x 4pin usb cable1x 6pin usb cable1x gps antenna1x backup camera video input wire
