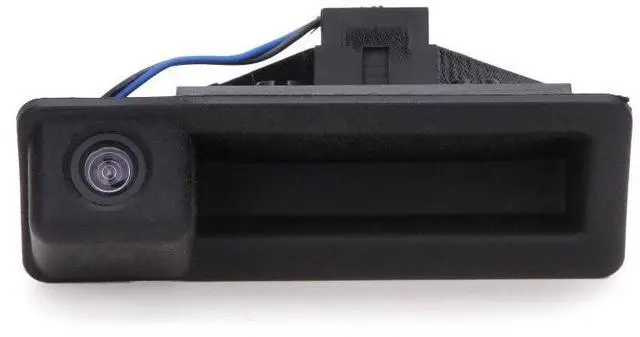

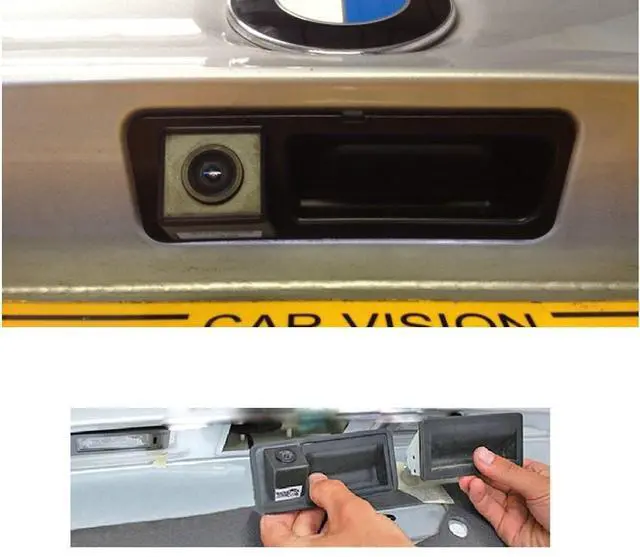

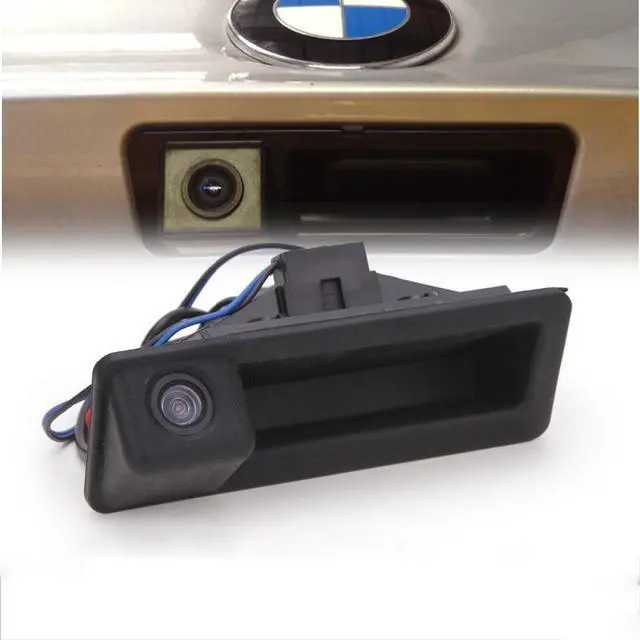

LIEBMAYA 170 Degree Car Trunk Handle Backup Camera Rear View HD Camera Parking Backup Camera for BMW E60 E61 E70 E71 E72 E82 E88 E84 E90 E91 E92 E93 X1 X5

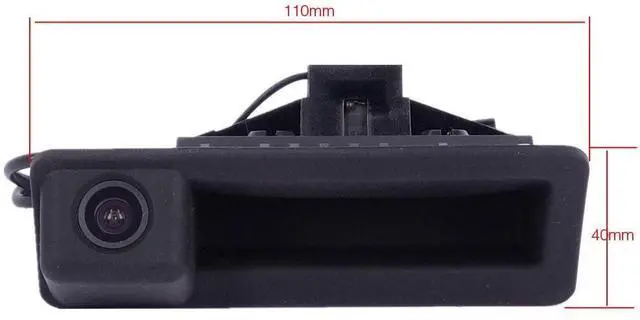

Please Note: 1. The Size of your Backup Camera handle should be 110mm x 40mm( 43.3I nch x 15.8I nch). Please simply measure it! 2. Please check that there is Chinch/RCA connectionon the radio, The yellow interface of our camera must be with,, CAMERA IN" interface of your navi or audio connected. It does not fit on original BMW Navi System as CIC and CCC Computer. 3. This Camera is with distance scale line as default. If no, please cut the both green cables to show the distance lines.
Features: -
Material: ABS + electronic components-
Sensor: CMOS sensor with night
Vision- Horizontal resolution (TVL): 480TVL-
Effective pixels: 728x512 pixels-
System: NTSC-
View angle: 120~170 degree-
Horizontal viewing angle: 135 degree-
IP67 Waterproof- Minimum illumination: 0.5 lux / F 1.2 - Standard AV signal output- Suitable for car 12V power-
Video cable: 6m
longCompatible with: for BMWE60 E61 - 5 seriesE90 E91 E92 E93 - 3 SeriesE70 - X5E71 E72 - X6E82 E88 - 1 SeriesE84 -
X1connecting line methods: Yellow
RCA plug: with the Navi radio or screenthe small "red" cable with the yellow
RCA plug: It is the power supply for the reverse cable on the radio. Without it, the radio does not know that the reverse is in and does not switch automatically to camera. But it is only necessary if there is no can bus. Can Bus normally detects the reverse even if the cable is not connected.
the black cable: Black should be groundBlack / red: on reverse light +the green cable: Distance scale Line( Yes/No) Switcher. the blue black cable with connector: With Switch of

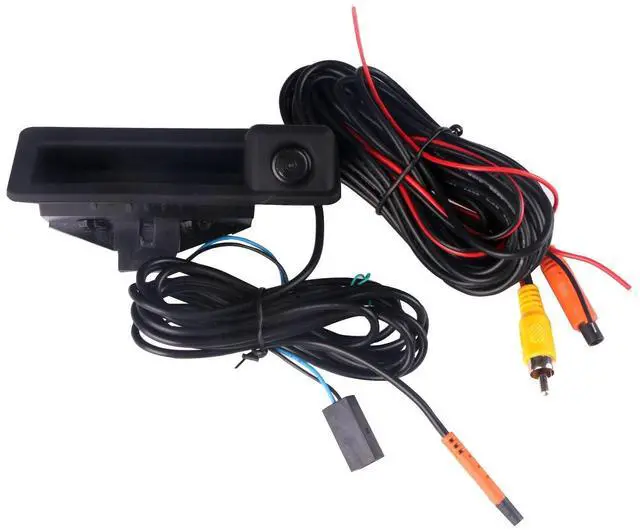

Trunk LidItem Includes: - 1 x handle Reversing Camera- 1 x Cable with 6 meters- 1 x User Manual
