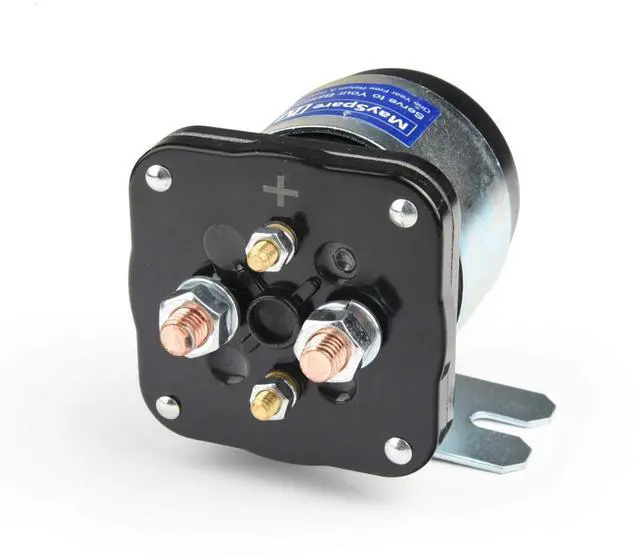

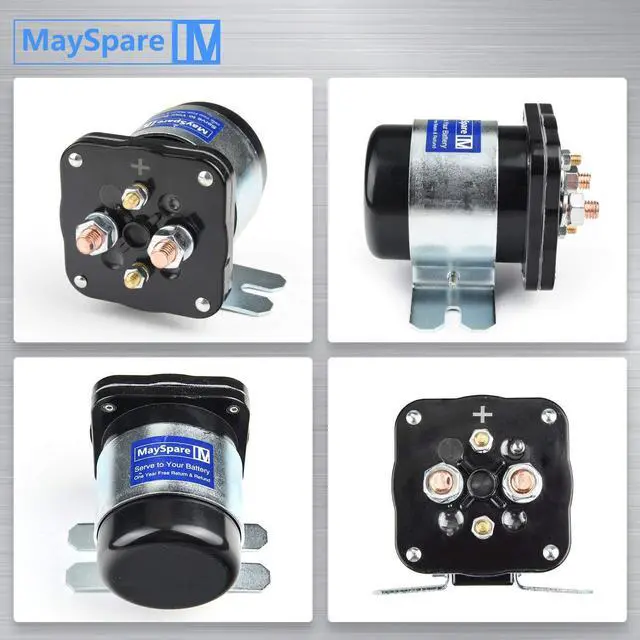

MaySpare 200 Amp Mobile Audio Continuous Relay and Battery Isolator High Current Relay 12VD for Cars, RVs, ATVs, UTVs, and Boats
- Function: An isolator is used to combine two batteries when a alternator is charging ( engine running) and isolate them when not charging ( engine off) so you can still start your vehicle

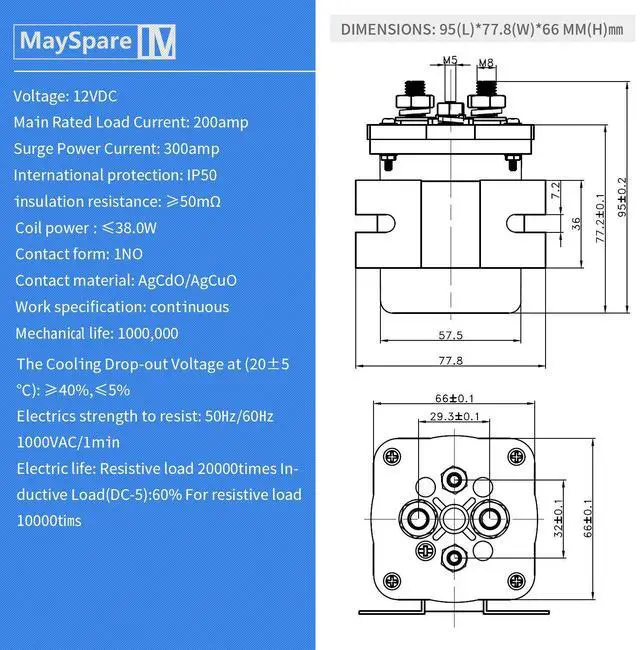

- Voltage: 12VDC/ Dimensions: 2-3/8"W x 2-3/8"D x 3-3/4"H/Power Handling: Continuous power handling of 200 amps/ Surge Power Handling: 300 amps
- Advantage: Does not create a voltage drop to the second battery like conventional isolators,reducing the natural consumption of batteries after power off, lengthens the life of the primary battery.

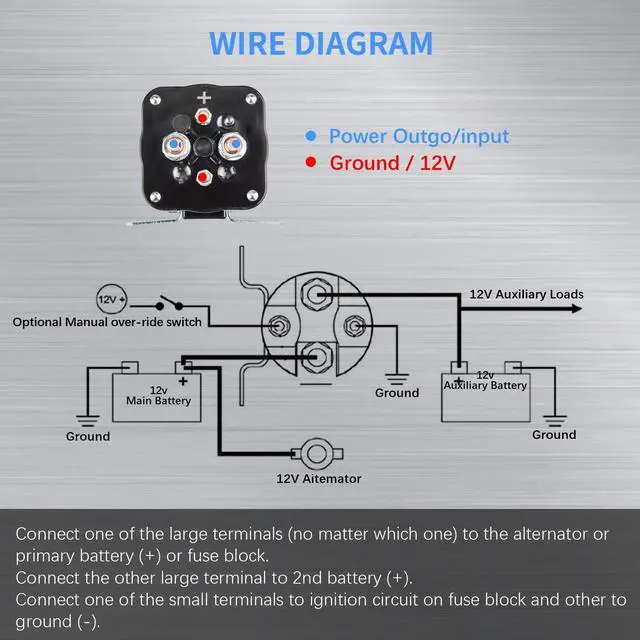

- Wrie Diagram : Connect the two small studs one to ground the other to an ignition on source from fuse box , the order on the large/ small studs does not matter
- handle high power demand, Provide better service, please contact us if you have any questions!
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Function: An isolator is used to combine two batteries when a alternator is charging ( engine running) and isolate them when not charging ( engine off) so you can still start your vehicle ^^
Voltage: 12VDC/
Dimensions: 2-3/8"W x 2-3/8"D x 3-3/4"H/Power
Handling: Continuous power handling of 200 amps/ Surge
Power Handling: 300 amps ^^
Advantage: Does not create a voltage drop to the second battery like conventional isolators, reducing the natural consumption of batteries after power off, lengthens the life of the primary battery.
^^ Wrie Diagram: Connect the two small studs one to ground the other to an ignition on source from fuse box, the order on the large/ small studs does not matter ^^ handle high power demand, Provide better service, please contact us if you have any questions!
Voltage: 12VDC/
Dimensions: 2-3/8"W x 2-3/8"D x 3-3/4"H/Power
Handling: Continuous power handling of 200 amps/ Surge
Power Handling: 300 amps ^^
Advantage: Does not create a voltage drop to the second battery like conventional isolators, reducing the natural consumption of batteries after power off, lengthens the life of the primary battery.
^^ Wrie Diagram: Connect the two small studs one to ground the other to an ignition on source from fuse box, the order on the large/ small studs does not matter ^^ handle high power demand, Provide better service, please contact us if you have any questions!
