ESP32 LoRa V3 Development Board SX1262 CP2102 0.96-inch OLED Display with 2pcs Antennas Integrated WiFi Bluetooth Dual Mode Type-C for Meshtastic, Arduin0 and IoT Development
- Powered by ESP32-S3 & SX1262, this board uniquely integrates LoRa, Wi-Fi, and Bluetooth in one device, enabling seamless communication across short and long ranges for any IoT scenario
- Ultimate Starter Kit: Its superior RF and system design ensures stable, out-of-the-box operation. Jumpstart projects immediately with beginner-friendly support for Arduino, MicroPython, and ESP-IDF
- Engine for Open-Source Innovation: The go-to hardware for major decentralized networks like Meshtastic. Perfect for building real-world solutions in smart farming, city monitoring, industrial control, and secure mesh networks
- Built to Endure & Protect: Features comprehensive safeguards: ESD/short-circuit protection, RF shielding, and a robust voltage regulator. The integrated battery management system supports safe, mobile deployments
- See Your Data in Real Time: Includes a 0.96-inch OLED display for instant debugging and status updates. Equipped with dedicated antennas and a CP2102 chip f
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description: WiFi LoRa 32 is a classic IoT dev-board, it has been loved by developers and makers. The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions. It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers.
MCU:
ESP32-S3FN8Frequency:
863~928MHzFLASH: 8M
byte (64M-bit)Processor: Tensilica LX6 dual coreMain control chip: ESP32LoRa
chip: SX1262USB
interface: USB Type C
Crystal oscillator: High precision temperature compensated crystal oscillatorLow power features in deep sleep: <10uAOLED
screen size: 0.96
-inchResolution ratio: 128*64Max.
TX Power: 211dBmMax.
Receiving sensitivity: -136dBm@SF12
BW=125KHzWi-Fi: 802.11 b/g/n, up
to 150MbpsBluetooth: Bluetooth 5 (LE)

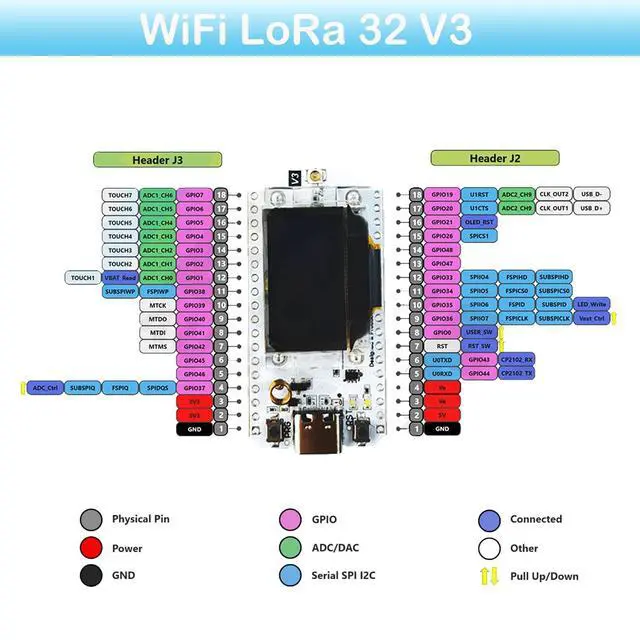

Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB

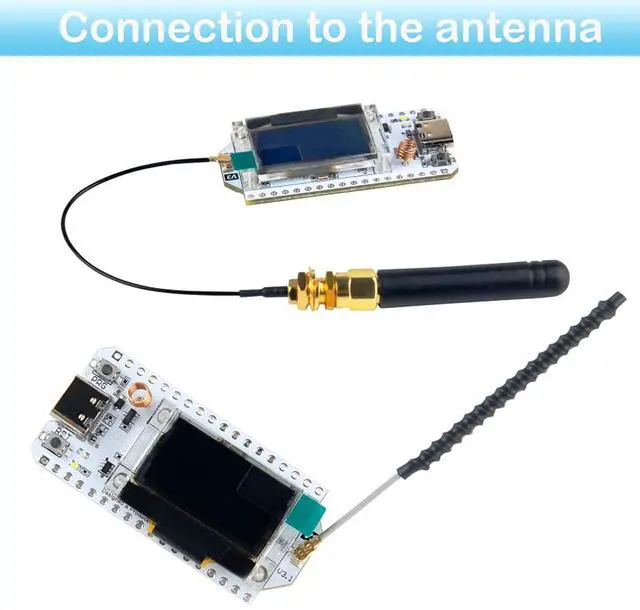

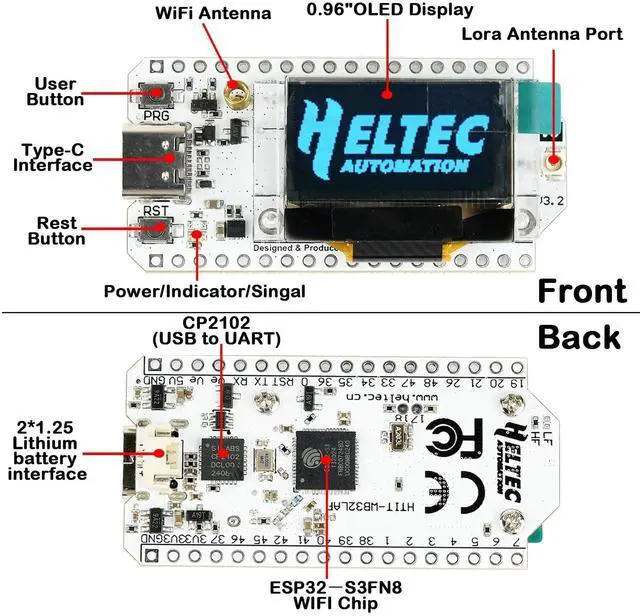

SiP FlashInterface: Type-C USB; 2* 1.25 lithium battery interface; LoRa ANT( 1.0 ); 2*18* 2.54 Header PinDescription of UF.

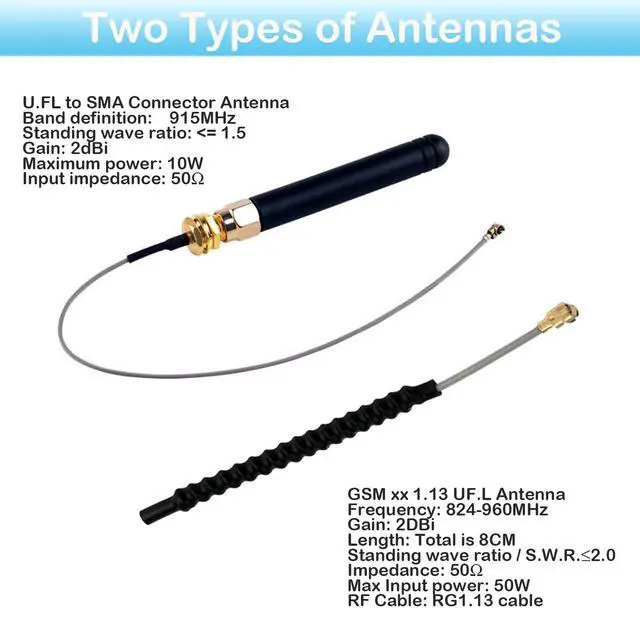

L Antenna:
Frequency:
824-960MHzGain:
2DBiLength: Total is 8CMStanding wave ratio / S. W. R.
2.0I mpedance: 50Max
Input power: 50WRF
Cable: RG 1.13 cablePackage

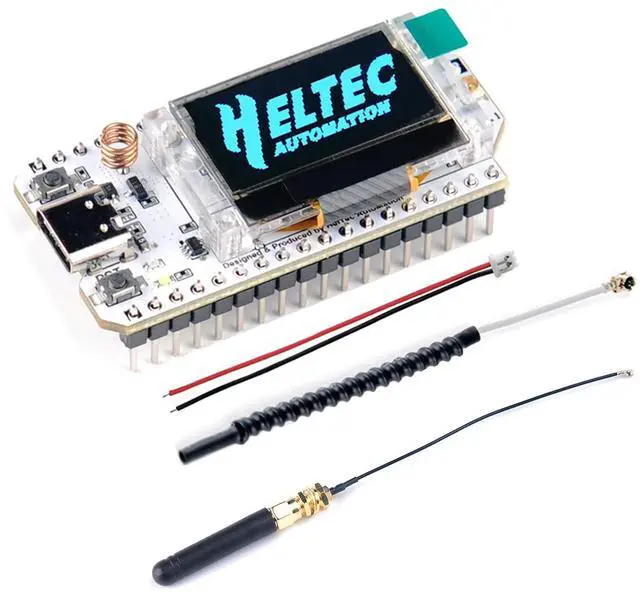

Included: 1 X LoRa V3 Node Development board2 X Pin header1 X Plastic Protect Case2 X Lora Antennas
MCU:
ESP32-S3FN8Frequency:
863~928MHzFLASH: 8M
byte (64M-bit)Processor: Tensilica LX6 dual coreMain control chip: ESP32LoRa
chip: SX1262USB
interface: USB Type C
Crystal oscillator: High precision temperature compensated crystal oscillatorLow power features in deep sleep: <10uAOLED
screen size: 0.96
-inchResolution ratio: 128*64Max.
TX Power: 211dBmMax.
Receiving sensitivity: -136dBm@SF12
BW=125KHzWi-Fi: 802.11 b/g/n, up
to 150MbpsBluetooth: Bluetooth 5 (LE)
Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB
SiP FlashInterface: Type-C USB; 2* 1.25 lithium battery interface; LoRa ANT( 1.0 ); 2*18* 2.54 Header PinDescription of UF.
L Antenna:
Frequency:
824-960MHzGain:
2DBiLength: Total is 8CMStanding wave ratio / S. W. R.
2.0I mpedance: 50Max
Input power: 50WRF
Cable: RG 1.13 cablePackage
Included: 1 X LoRa V3 Node Development board2 X Pin header1 X Plastic Protect Case2 X Lora Antennas
