Wishiot TF-Luna LiDAR Range Finder Sensor 0.2m-8m Single-Point Ranging Module UART/I2C 5V with 6Pin Terminal to Dupont Cable for Arduino/RPi Pico/Pixhawk/WiFi_Lora_32

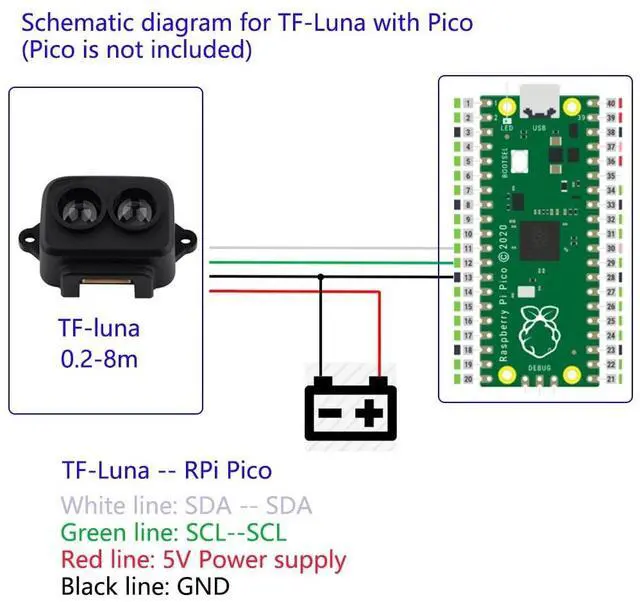

- 1, Model: TF-Luna, Operating range: 0.2-8m, Distance resolution: 1cm, Power comsumption: not over 0.35W, Frame rate: 1-250Hz, Frequency: 100Hz, FOV: 2 degree, Net weight: not over 5g, Communication: UART/I2C interface, Power supply: 5V. Compatible with Raspberry Pi Pico, Pixhawk and WiFi_Lora_32 0.96" oled display transceiver module.
- 2, TF-Luna is a single-point ranging LiDAR, based on TOF principle. It is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.
- 3, TF-Luna module comes with UART and I2C interface, default communication interface is UART, IIC can be realized by wiring pins, if you need to use I2C interface, please set it yourself. There are 3pcs cables comes with the lidar, 1.25mm-6Pin male to male connector wire, 1.25mm-6Pin male connector to male/female dupont cables, covers the cables for m
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

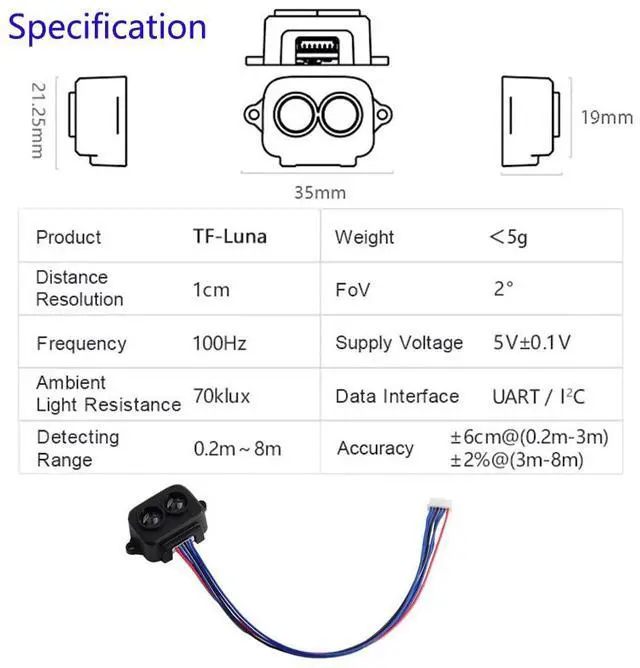

Specification:
Model: TF-LunaOperating
range: 0.2
m~8mSupply voltage: 5V
0.1VA verage current: 70mAPeak
current: 150mAAverage
power: 350mWCommunication
interface: UART/IIC, default UART, can set
IIC by wiring pinsFrame rate: 1~250Hz ( adjustable )
Communication level: TTL Level ( 3.3V )Default baud rate: 115200Data
bit: 8Stop
bit: 1Parity
check: NoneLight
source: VCSEL
Wavelength: 850nmOperating
temperature:
-20C~75CCertification: CE, FCC,
ROHS

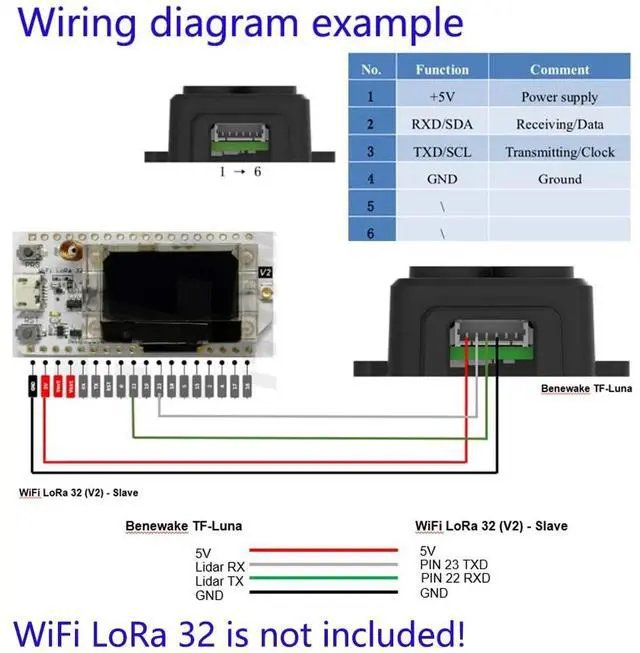

Note: If you use TF-Luna with WiFi_LoRa_32, make sure that your IDE has installed Heltec ESP32 Series Dev-boards in your Board Manager and have installed Heltec ESP21 Dev-Boards in your sketch.
Major Applications: Traffic MonitoringObstacle detectionLevel measurementSmart deviceSecurity and obstacle avoidanceDrone altitude holding and terrain followingMachine control and safety sensorsDistance measuring instrumentPackage

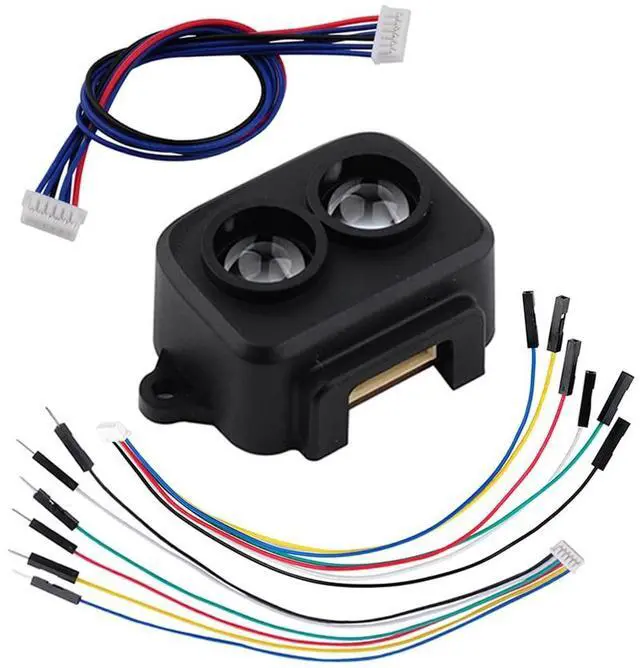

Included: 1 X TF-Luna LiDAR Range Finder Sensor Module1 X 1.25 mm-6Pin Male to Male connector wire1 X 1.25 mm-6Pin Male Connector to Male Dupont Cable1 X 1.25 mm-6Pin Male Terminal to Female Dupont Wire
Model: TF-LunaOperating
range: 0.2
m~8mSupply voltage: 5V
0.1VA verage current: 70mAPeak
current: 150mAAverage
power: 350mWCommunication
interface: UART/IIC, default UART, can set
IIC by wiring pinsFrame rate: 1~250Hz ( adjustable )
Communication level: TTL Level ( 3.3V )Default baud rate: 115200Data
bit: 8Stop
bit: 1Parity
check: NoneLight
source: VCSEL
Wavelength: 850nmOperating
temperature:
-20C~75CCertification: CE, FCC,
ROHS
Note: If you use TF-Luna with WiFi_LoRa_32, make sure that your IDE has installed Heltec ESP32 Series Dev-boards in your Board Manager and have installed Heltec ESP21 Dev-Boards in your sketch.
Major Applications: Traffic MonitoringObstacle detectionLevel measurementSmart deviceSecurity and obstacle avoidanceDrone altitude holding and terrain followingMachine control and safety sensorsDistance measuring instrumentPackage
Included: 1 X TF-Luna LiDAR Range Finder Sensor Module1 X 1.25 mm-6Pin Male to Male connector wire1 X 1.25 mm-6Pin Male Connector to Male Dupont Cable1 X 1.25 mm-6Pin Male Terminal to Female Dupont Wire
