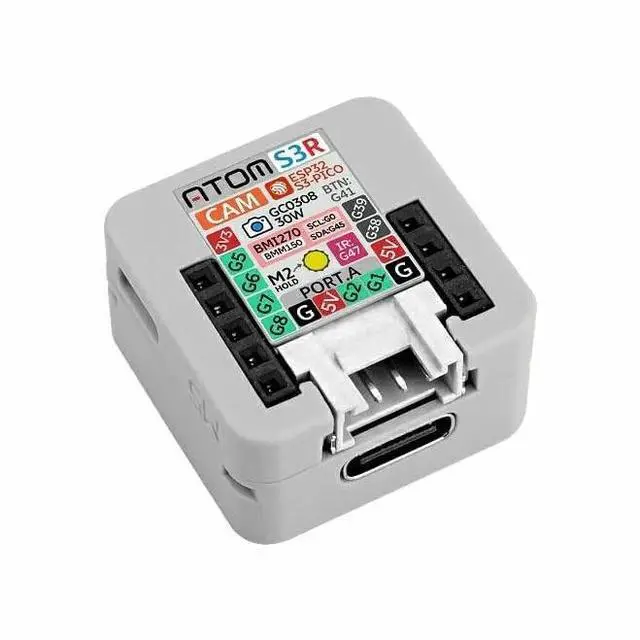

    M5Stack AtomS3R Camera Kit, Wi-Fi, ESP32-S3, 8MB PSRAM, 8MB Flash, Dual-Core 240MHz, 0.3MP Camera with IMU Sensor

    Be the first to review this product...
    • POWERFUL ESP32-S3 PROCESSOR: Integrated ESP32-S3-PICO-1-N8R8 SoC with dual-core Xtensa LX7 up to 240MHz, 8MB Flash and 8MB PSRAM for advanced IoT applications and smooth performance.
    • INTEGRATED 0.3 MP CAMERA: Features GC0308 camera sensor with 30 fps, F2.6 aperture, 57.6 field of view, and protective glass panel for clear image capture and dust protection with UVC support for driver-free USB operation.
    • 9-AXIS MOTION SENSING: Equipped with BMI270 6-axis IMU (0.05% acceleration and 0.05/s gyro accuracy) and BMM150 3-axis geomagnetic sensor (0.3 T accuracy) for precise motion tracking and orientation detection.
    • INFRARED TRANSMISSION: Built-in IR capability with 40.83 feet emission distance at 180 angle for wireless control applications and remote device communication.

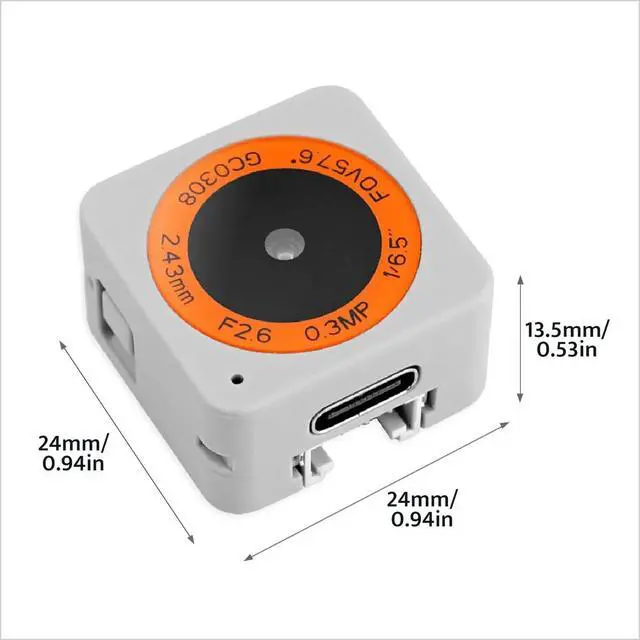

    • COMPACT AND EXPANDABLE DESIGN: Ultra-compact 0.94 x 0.94 x 0.53 inch form factor weighing only 0.26 ounces with 6 GPIO pins, USB Type-C port, HY2.0-4P expansion port, and 2.4 GHz Wi-Fi connectivity for ver
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

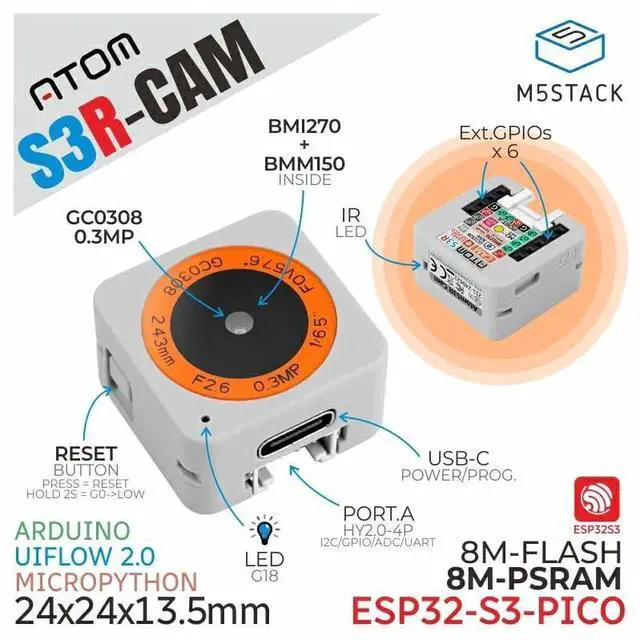

    The ATOMS3R Camera Kit is a compact IoT programmable controller measuring just 0.94 x 0.94 x 0.53 inches and weighing only 0.26 ounces. Powered by the ESP32-S3-PICO-1-N8R8 dual-core processor running up to 240MHz, this mini controller features 8MB Flash and 8MB PSRAM for robust performance. The integrated 0.3 MP GC0308 camera delivers 30 fps with a 57.6 -degree field of view, protected by a glass panel for enhanced image quality. The unit includes a comprehensive 9-axis sensor system combining a BMI270 6-axis IMU and BMM150 3-axis geomagnetic sensor for precise motion tracking. With 2.4 GHz Wi-Fi connectivity and infrared transmission capabilities reaching 40.9 feet, it's ideal for IoT monitoring and control applications.

    The factory firmware supports UVC, enabling driver-free USB camera functionality. Six GPIO pins (G5/G6/G7/G8/G38/G39) and a HY 2.0 -4P expansion port provide flexible connectivity options. The USB Type-C port handles both power supply and firmware downloads. Compatible with Arduino IDE, ESP-IDF, and PlatformIO development platforms, this versatile controller operates reliably in temperatures from 32 to 104 degrees Fahrenheit, making it perfect for educational projects and embedded applications.
