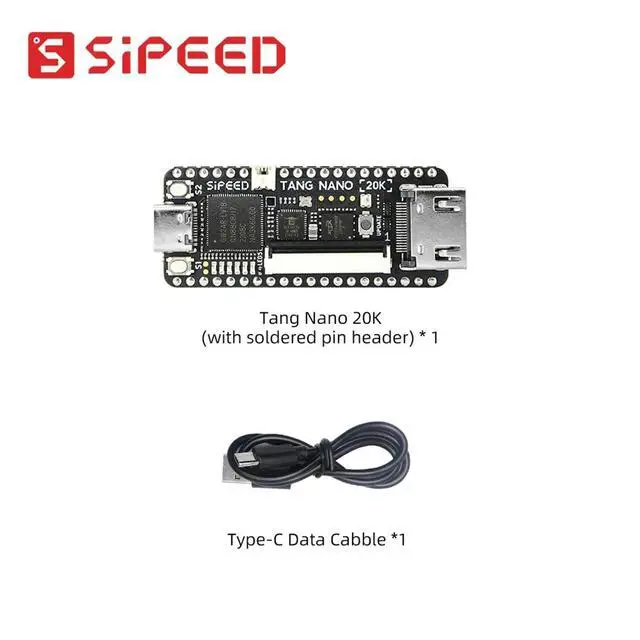

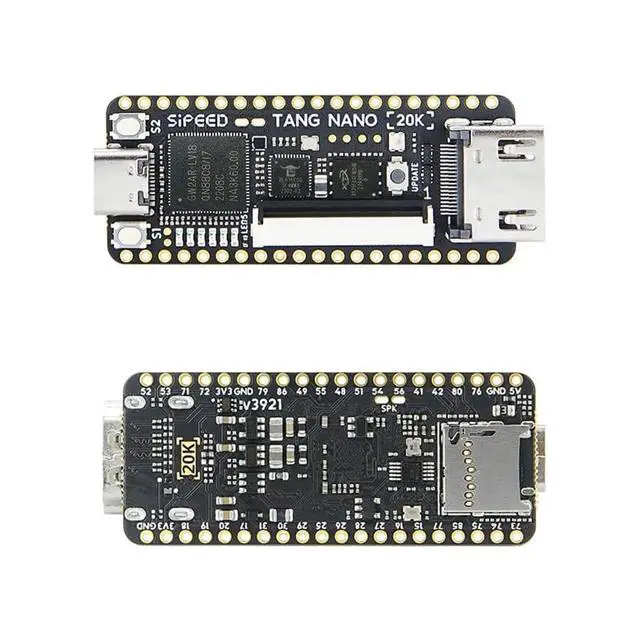

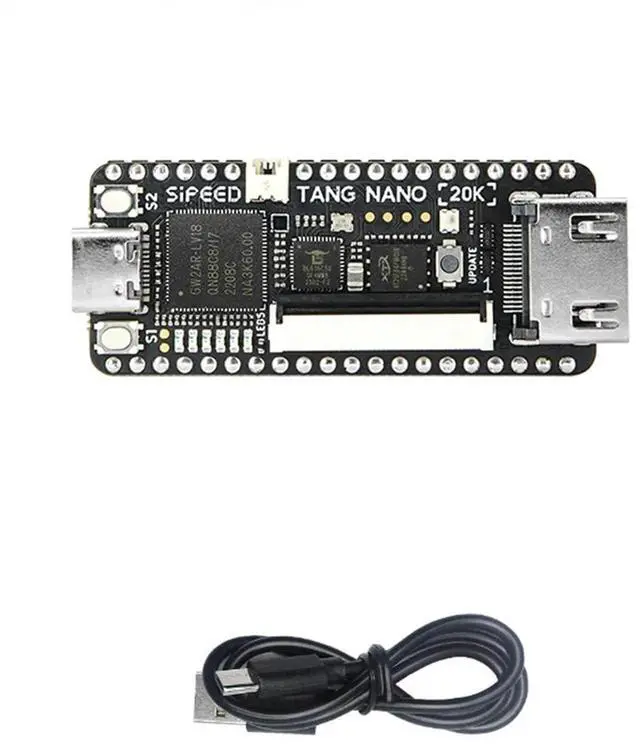

Sipeed Tang Nano 20K FPGA Development Board, Open Source RISCV Linux Retro Game Player with 64Mbits SDRAM 20K LUT4, Single Board Computer Support microSD RGB LCD LED JTAG HDMI Port (Already Welded)

  • [FPGA Chip] Sipeed Tang Nano 20K employs the GW2AR-18 QN88 FPGA chip, featuring 20,736 LUT4 logic units and 15,552 registers. It incorporates two internal PLLs and multiple DSP units supporting 18-bit x 18-bit multiplication for accelerated digital computation.
  • [Onboard Debugger] The BL616 chip on the Sipeed Tang Nano 20K development board provides JTAG download functionality for the FPGA, USB-to-serial communication with the FPGA, a virtual serial port for FPGA SPI communication, and a virtual serial port to control the MS5351 clock output.
  • [RISC-V Linux] Sipeed Tang Nano 20K development board runs the RISC-V Linux system, enabling seamless retro gaming experiences with nano tang.
  • [Application Scenarios] Sipeed Tang Nano 20K development board supports game console emulation, RGB display control, multi-screen output, 20K LUT4, and RISC-V soft core experimentation.
  • [Support] "wiki.sipeed.com/hardware/en/tang/tang-nano-20k/nano-20k.html".
+
+
Overview
Specs
Reviews

Any questions? Ask CelesteSM will help you find out quickly.

[FPGA Chip] Sipeed Tang Nano 20K employs the GW2AR-18 QN88 FPGA chip, featuring 20, 736 LUT4 logic units and 15, 552 registers. It incorporates two internal PLLs and multiple DSP units supporting 18-bit x 18-bit multiplication for accelerated digital computation. ^^ [Onboard Debugger] The BL616 chip on the Sipeed Tang Nano 20K development board provides JTAG download functionality for the FPGA, USB-to-serial communication with the FPGA, a virtual serial port for FPGA SPI communication, and a virtual serial port to control the MS5351 clock output. ^^ [RISC-V Linux] Sipeed Tang Nano 20K development board runs the RISC-V Linux system, enabling seamless retro gaming experiences with nano tang.

^^ [Application Scenarios] Sipeed Tang Nano 20K development board supports game console emulation, RGB display control, multi-screen output, 20K LUT4, and RISC-V soft core experimentation. ^^ [Support] "wiki. sipeed. com/hardware/en/tang/tang-nano-20k/nano-20k. html".
