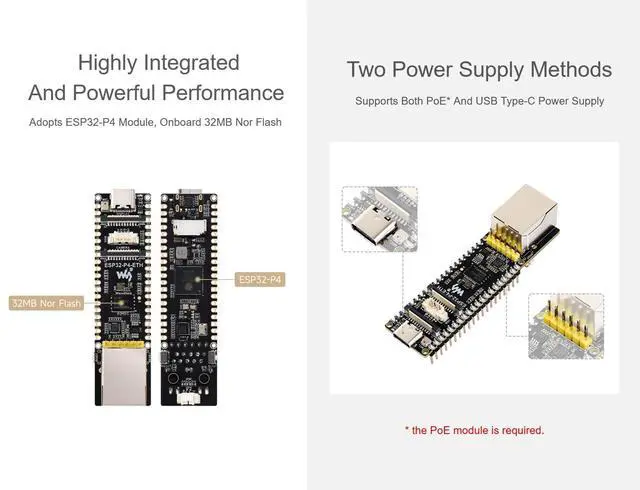

ESP32-P4-POE-ETH Development Board Adopts ESP32-P4, Supports PoE and USB Type-C Power Supply, with MIPI-CSI/DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF Card Slot, Microphone, Speaker Header, etc.

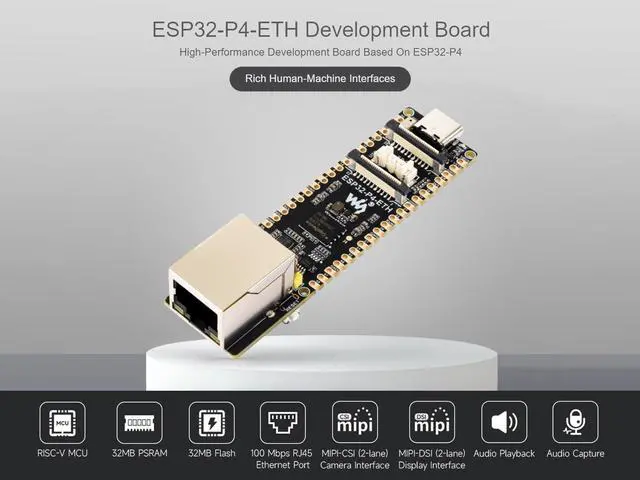

IntroductionESP32-P4-POE-ETH is a multimedia development board based on ESP32-P4. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, Ethernet port and onboard 40PIN GPIO header which is compatible with some Raspberry Pi Pico HATs, enabling a wider range of application adaptability. The ESP32-P4 adopts a dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI / DSI, H.

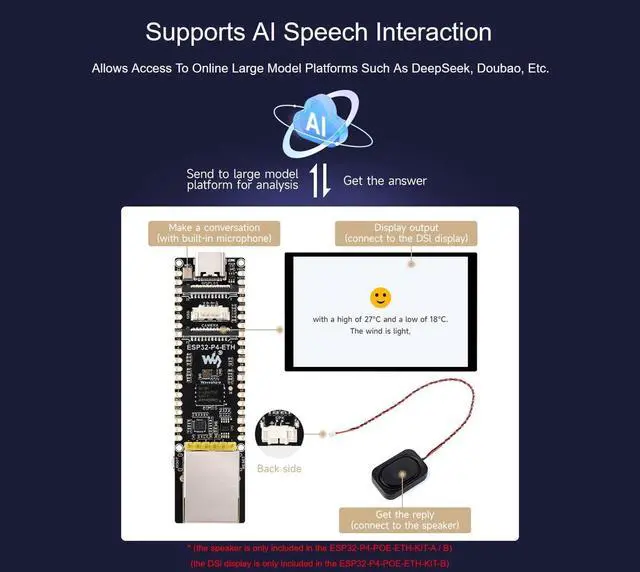

264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. ESP32-P4-ETH meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion. FeaturesHigh-performance MCU with RISC-V 32-bit dual-core and single-core processors128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCMPowerful image and voice processing capability. Provides image and voice processing interfaces including JPEG codecs, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP) and H. 264 video encoder32MB PSRAM in the chip's package, onboard 32MB Nor FlashCommonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header, etc.

Adapting 2*20 GPIO headers with 27 x remaining programmable

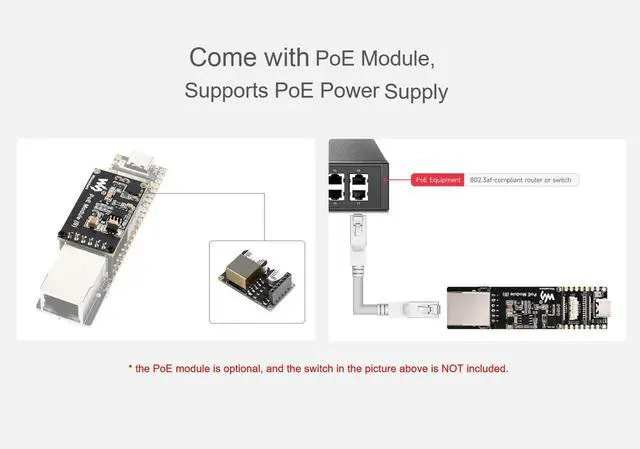

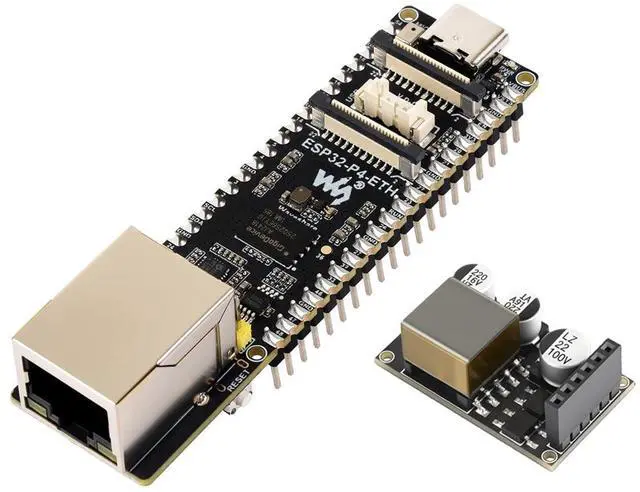

GPIOsSecurity features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege SeparationPackage ContentESP32-P4-ETH-M 1PoE module 1Screws pack 1Note: Online Dev Resources and Tutorials to help you easily get started. Please feel free to contact us with any questions.
