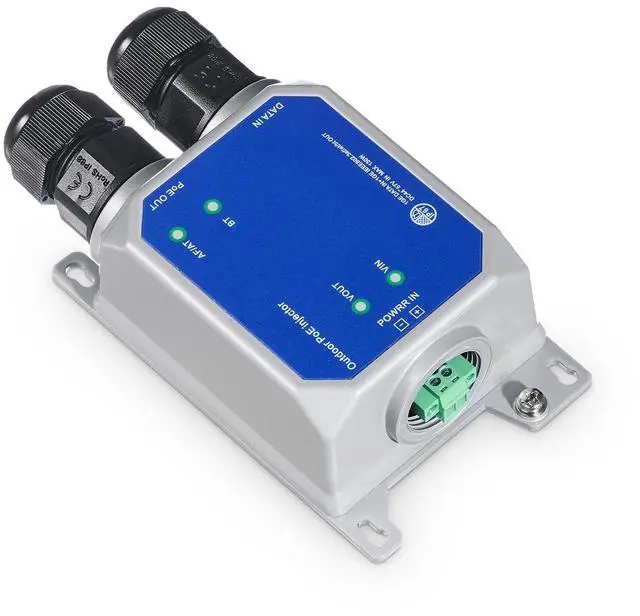

MokerLink IP67 Outdoor 10 Gigabit PoE Injector, 10/100M/1G/2.5G/10Gbps, DC48-57V in Max 120W, IEEE 802.3 af/at/bt PoE Out Max 90W, Wall Mount Metal Waterproof

10

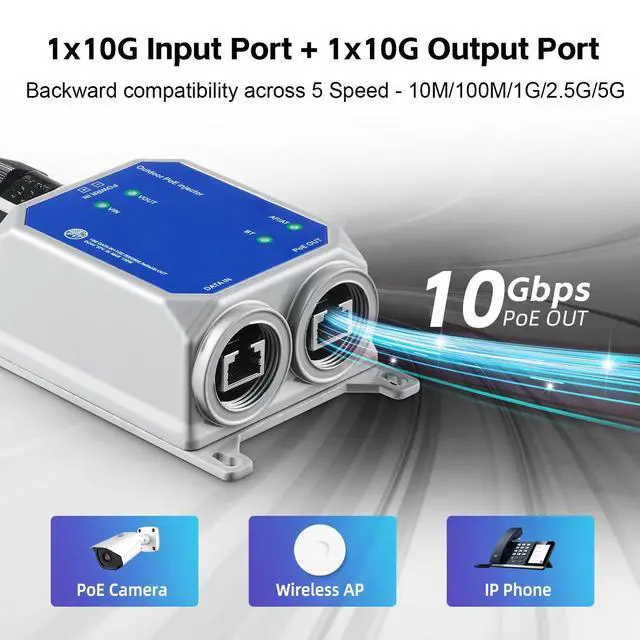

Gigabit Ports: Include 1 Data In, 1 PoE Out, auto adaptive 10/100M/1G/ 2.5G /10Gbps speed. 100BASE-TX, Cat5 or later
UTP (150 meter); 1000BASE-TX: Cat6 or later UTP (150 meter); 2500BASE-TXCat6 or later UTP (100 meter); 5000BASE-TXCat6 or later UTP (80 meter); 10000BASE-TXCat7 or later UTP (50 meter) ^^ IP67

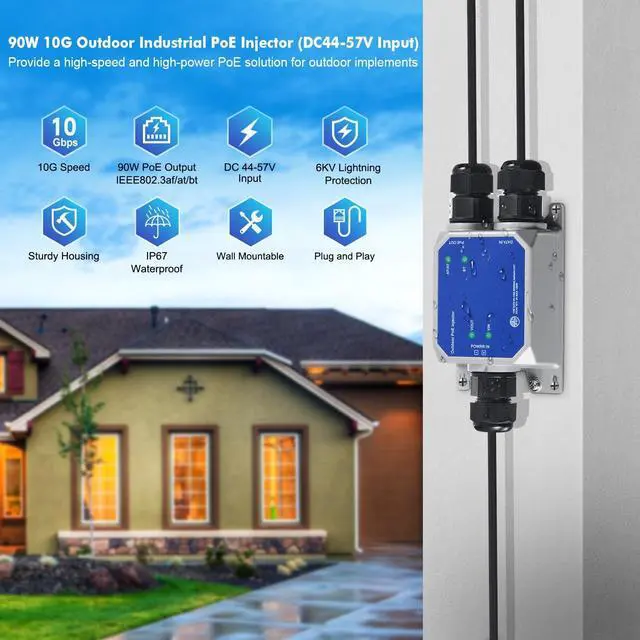

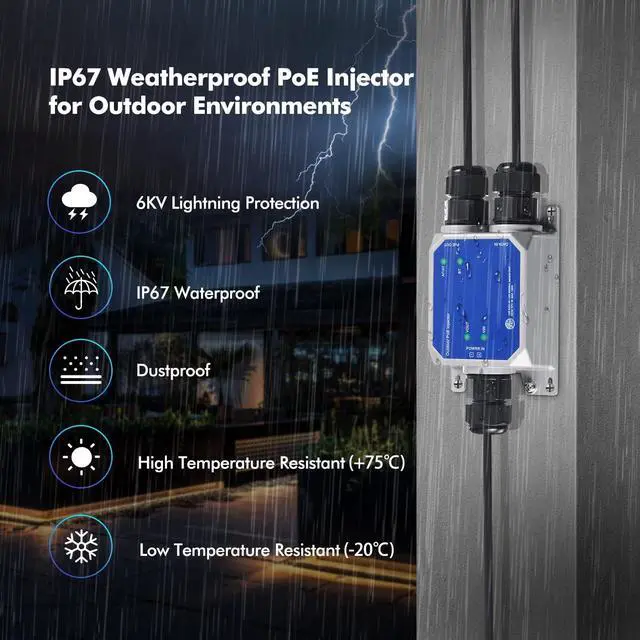

Outdoor Weatherproof: Rugged industrial grade metal housing, cable interface are all protected in the shell, with waterproof cap, which has better waterproof, dustproof and snowproof effect, and is more suitable for outdoor and indoor environments, such as warehouses, computer rooms, garages, attics, etc. **Pass the network cable through the waterproof cap and then make RJ45 connection** ^^

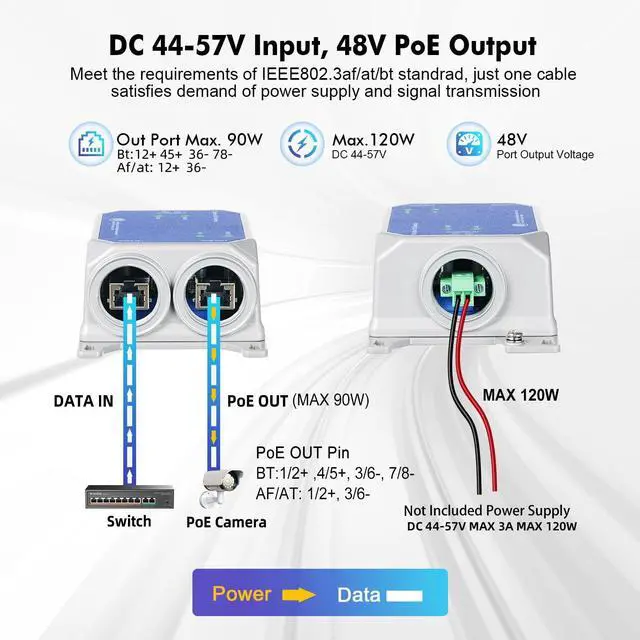

IEEE 802.3 af/at/bt: PoE out port support this standard PoE, Out Max 90W IEEE 802.3 af/at/bt, Input Max 120W DC48-57V with phoenix terminal (Please note the positive and negative poles). PoE out Voltage 44-57 Vdc.
PoE pin: 1/2 (+), 4/5 (+), 3/6 (-), 7/8 (-). **If the input DC is less than 48V, it will not be able to output 48V POE network voltage** ^^
Unmanaged Plug & Play: Support power detection function, automatically detect devices, just plug in the ethernet cable, connect directly to the device, without configuration.
^^ Easy Installation: LED indicator, Meta case, support wall mount, small size, save space, suitable for more positions. Powered by DC48V, convert non-poe ports to poe ports to power poe devices for the network
