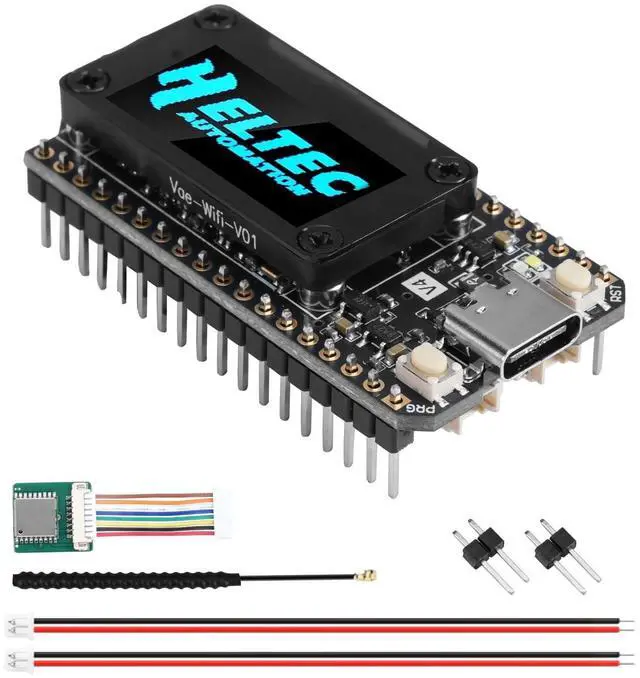

AYWHP ESP32 LoRa V4 Development Board for Meshtastic, Lora V4 WiFi Bluetooth Module with GPS 0.96 OLED Display SX1262 Chip ESP32-S3R2 MCU 16M Flash Compatible with Arduino IoT Meshtastic Devices

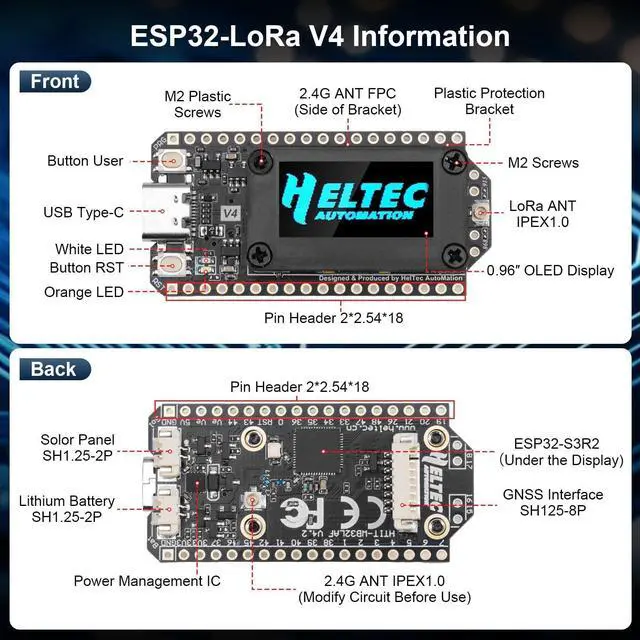

- ESP32-S3 LoRa Board for Meshtastic DevicesThe upgraded LoRa32-Heltec V4 features the ESP32-S3R2 chip with 2MB PSRAM and 16MB Flash, delivering excellent performance for Meshtastic networks, LoRa ESP32 nodes and advanced IoT applications.
- 27dBm Long Range LoRaEquipped with the SX1262 LoRa transceiver, ESP32 LoRa V4 offering up to 27dBm transmit power and -137dBm sensitivity for reliable Meshtastic devices communication in urban, rural and outdoor environments.

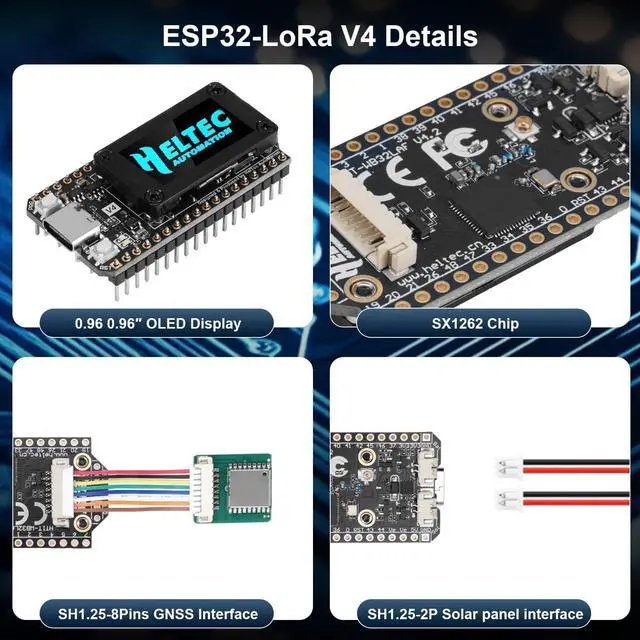

- Built-in 0.96" OLED DisplayESP32 LoRa V4 module built-in SSD1315 OLED display (12864) enables instant visualization of Meshtastic status, node data and system information without additional hardware.
- Ultra-Low Power DesignESP32 LoRa V4 module features ultra-low sleep current below 20A, supports solar input via SH1.25 connector, and includes a dedicated GNSS port for external GPS modules.
- Compatible with Arduino & Heltec V3Pin-to-pin compatible with Heltec LoRa 32 V3, supporting Arduino IDE and PlatformIO
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
ESP32-S3 LoRa Board for Meshtastic DevicesThe upgraded LoRa32-Heltec V4 features the ESP32-S3R2 chip with 2MB PSRAM and 16MB Flash, delivering excellent performance for Meshtastic networks, LoRa ESP32 nodes and advanced IoT applications. ^^ 27dBm Long Range LoRaEquipped with the SX1262 LoRa transceiver, ESP32 LoRa V4 offering up to 27dBm transmit power and -137dBm sensitivity for reliable Meshtastic devices communication in urban, rural and outdoor environments. ^^ Built-in 0.96" OLED DisplayESP32 LoRa V4 module built-in SSD1315 OLED display (12864) enables instant visualization of Meshtastic status, node data and system information without additional hardware.
^^ Ultra-Low Power DesignESP32 LoRa V4 module features ultra-low sleep current below 20A, supports solar input via SH 1.25 connector, and includes a dedicated GNSS port for external GPS modules. ^^ Compatible with Arduino & Heltec V3Pin-to-pin compatible with Heltec LoRa 32 V3, supporting Arduino IDE and PlatformIO, ESP32 LoRa V4 ideal for Meshtastic devices, LoRaWAN, industrial IoT and smart monitoring systems.
^^ Ultra-Low Power DesignESP32 LoRa V4 module features ultra-low sleep current below 20A, supports solar input via SH 1.25 connector, and includes a dedicated GNSS port for external GPS modules. ^^ Compatible with Arduino & Heltec V3Pin-to-pin compatible with Heltec LoRa 32 V3, supporting Arduino IDE and PlatformIO, ESP32 LoRa V4 ideal for Meshtastic devices, LoRaWAN, industrial IoT and smart monitoring systems.
