$44.99
Meet Your Seller

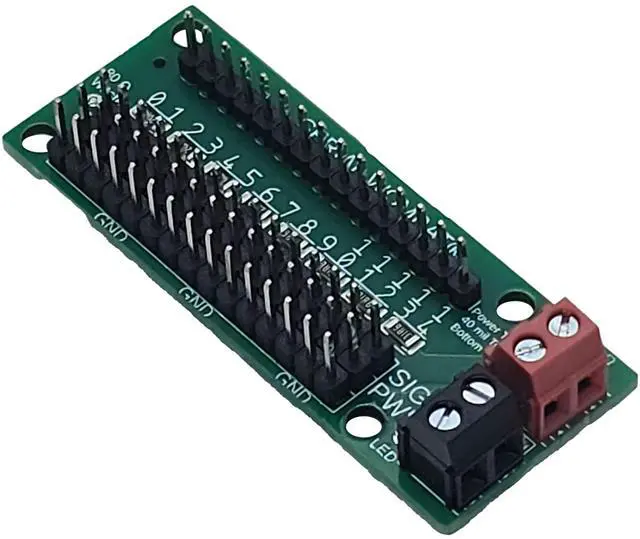

Servo Connector Breakout Board for Single Board Computers Serial Wombat PCB0039 with LED 5-Pack
- Connector board only - No onboard electronics. Signal generation is performed by the single board computer (not included)
- Allows easy connection of up to 15 hobby servos to a Single board computer such as a Serial Wombat chip, Arduino or Raspberry Pi
- On board power indicator LED can be enabled by soldering a solder jumper. On board waste resistors can be enabled by soldering solder jumpers.

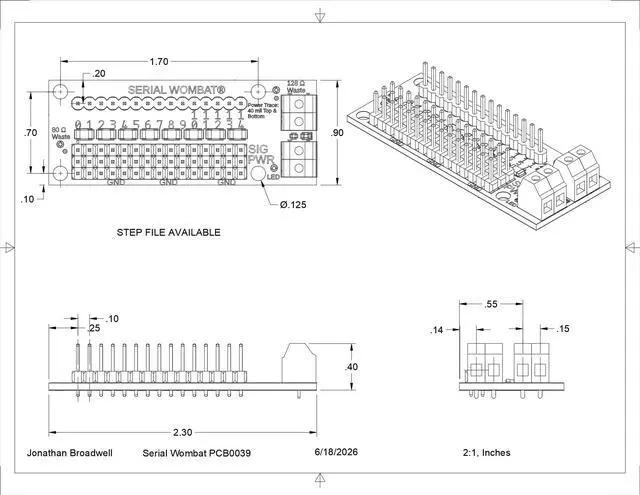

- Fully assembled. Mounting holes and dimensions printed on the rear silkscreen allow easy integration into a project
- Can be used for other kinds of breakouts where power bus is shared but individual signal lines are required, such as arrays of potentiometers, switches, etc.
- Same physical layout and connections as Serial Wombat PCB0014
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This board contains no electronics. It is designed connect up to 15 Servos to a Single Board computer by breaking out the servo power and ground connections to screw down terminals and providing 0.1" header pins for connection via ribbon cable or jumper wires. An optional power LED can be enabed by soldering a jumper. Waste resistors can be enabled to provide a constant current pull from the terminals via solder jumpers. These waste resistors are useful when powering from a USB battery which shuts off if no current is flowing. This board is fully compatible with Serial Wombat PCB0014.
Dimensions and connections are the same, but with the LED and waste resistor improvements.
Dimensions and connections are the same, but with the LED and waste resistor improvements.
