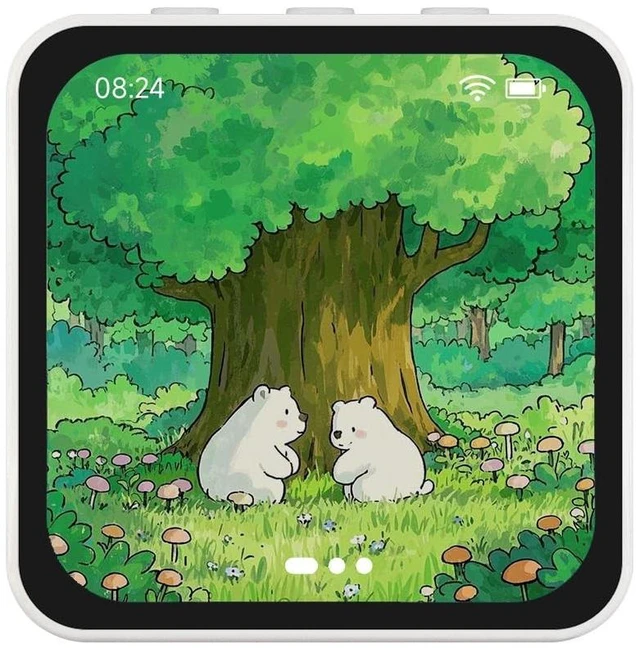

ESP32-S3 Development Board with 2.16inch AMOLED Touch Screen, 480 480 Pixels 16.7M Color Display, Supports 2.4GHz Wi-Fi and BLE 5, Equipped with Dual Microphones Array, 6-Axis IMU, etc.

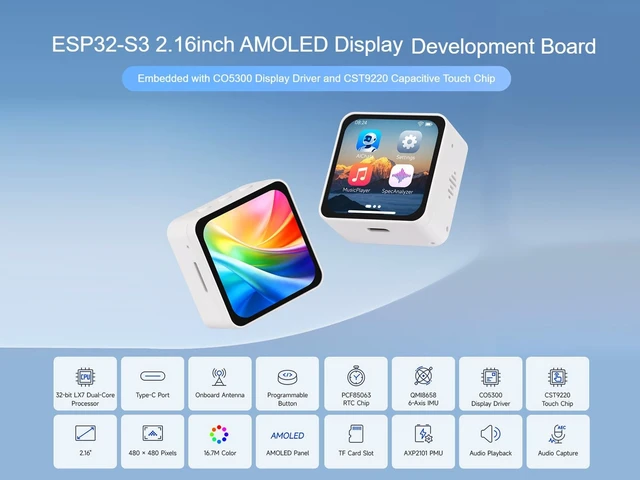

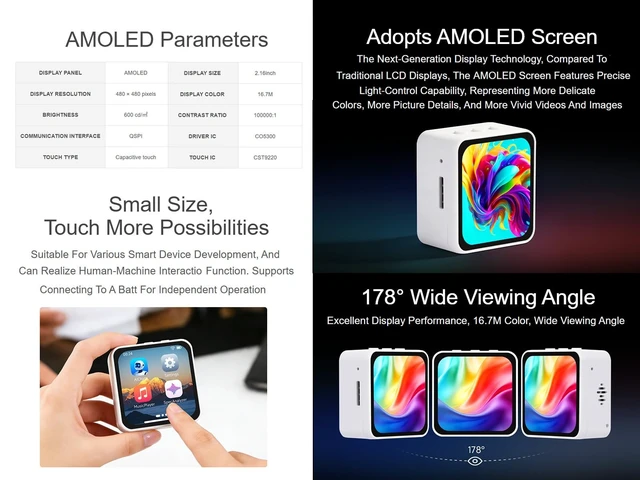

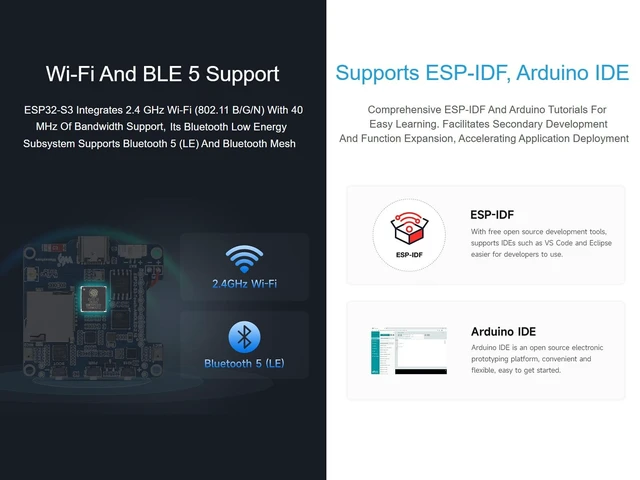

IntroductionESP32-S3-Touch-AMOLED- 2.16 is a high-performance, highly integrated microcontroller development board. Tiny size with onboard 2.16 inch capacitive AMOLED display, highly integrated power management chip, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, low power audio codec, echo cancellation circuit, and so on, which makes it easy for you to develop and integrate into the products quickly. FeaturesEquipped with high-performance ESP32-S3R8 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GH z Wi-Fi ( 802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt-in 512KB Static RAM, 384KB ROM, with onboard 8MB PSRAM and external 16MB flashType-C port, easier to useOnboard 2.16 inch AMOLED capacitive touch display for clear color picture display, 480 480 resolution, 16.7M colorAdopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.

Built-in CO5300 display driver and CST9220 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resourcesEquipped with dual microphones array with noise reduction and echo cancellation circuit, suitable for accurate speech recognition and near/far-field wake-upOnboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PWR and BOOT programmable buttons for easy custom function developmentOnboard 3.7V MX 1.25 Lithium Batt headerAdopts AXP2101 IC for efficient power management, supports multiple voltage outputs, Batt charging, Batt management, and Batt life optimization, etc.

Package ContentESP32-S3-Touch-AMOLED- 2.16 host x1PC insulating sheet x1Note: Online Dev Resources and Tutorials to help you easily get started. Please feel free to contact us with any questions
