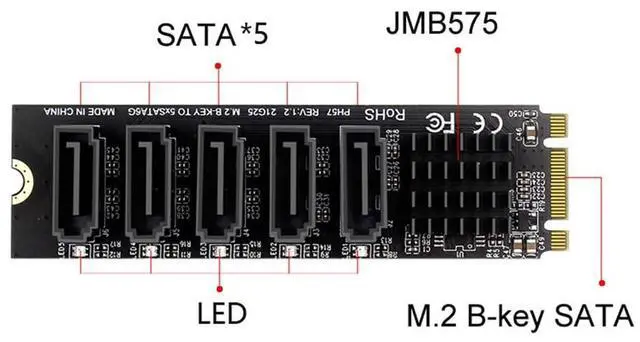

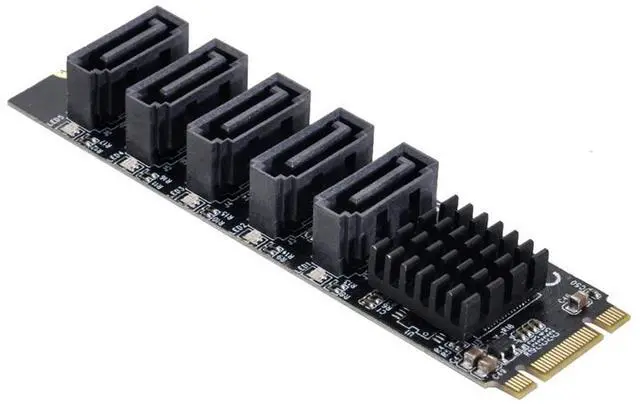

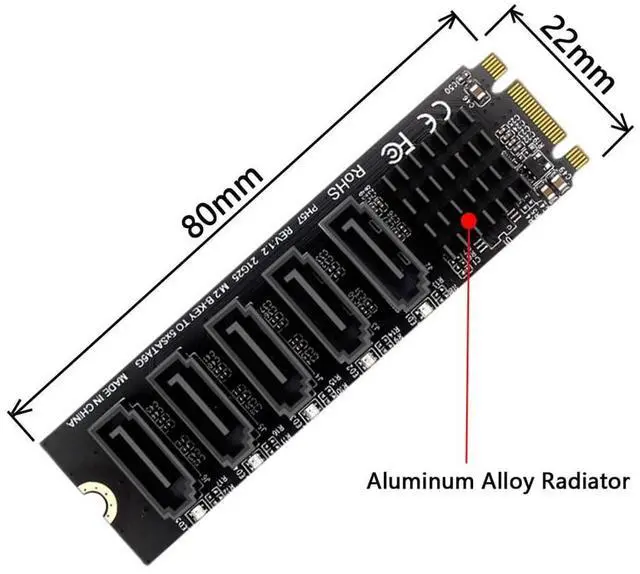

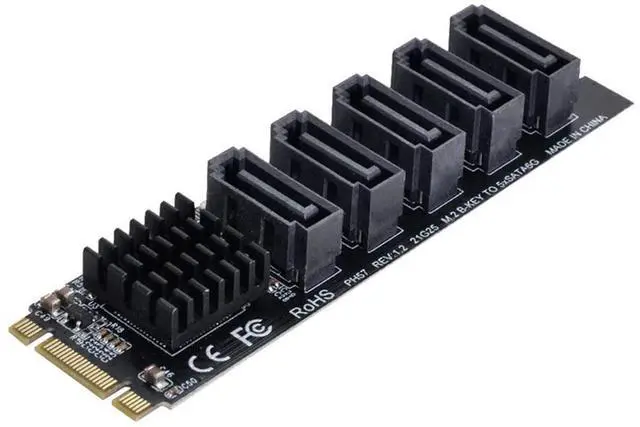

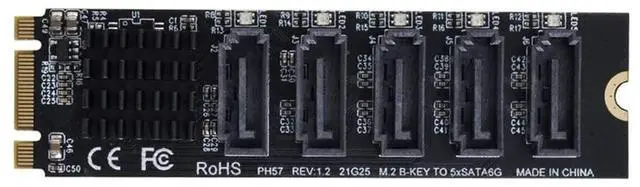

xiwai NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Select JMB575
- NGFF Key B+M to SATA 3.0 6Gbps 5 Ports Adapter Converter Port Select JMB575 JMB575 is a single chip solution. It integrated 5 independent SATA channels and a micro-processor.
- With proper setting, the chip can be configured as 1 to 5 ports SATA 6Gbps Port.
- JMB575 supports cascaded mode which enables maximum 5 drives connected to one host.
- Key Features · Comply with Serial ATA Port Multi Spec. Revision 1.2 · Comply with Serial ATA Port Select Spec. Revision 1.0
- Support 5 port SATA 6Gbps interface · Supports BIST and loopback mode
- Support command-based and FIS-based switching · Support PM aware and non-PM aware host
- Main control chip: JMB575
- Interface: 5 * SATA3.0 interface Applicable slot: NGFF Key B+M
+
+
