Xiwai Oculink SFF-8612 8611 to U.2 Kit M-Key to NVME PCIe SSD and NGFF to SATA Adapter for Mainboard

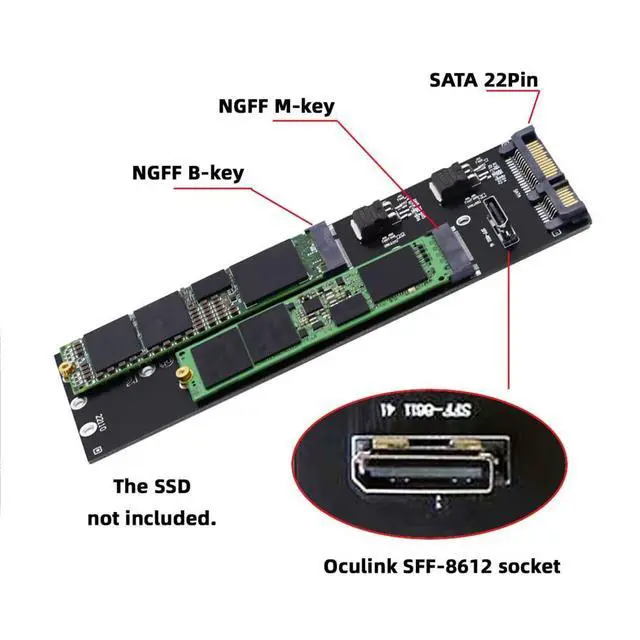

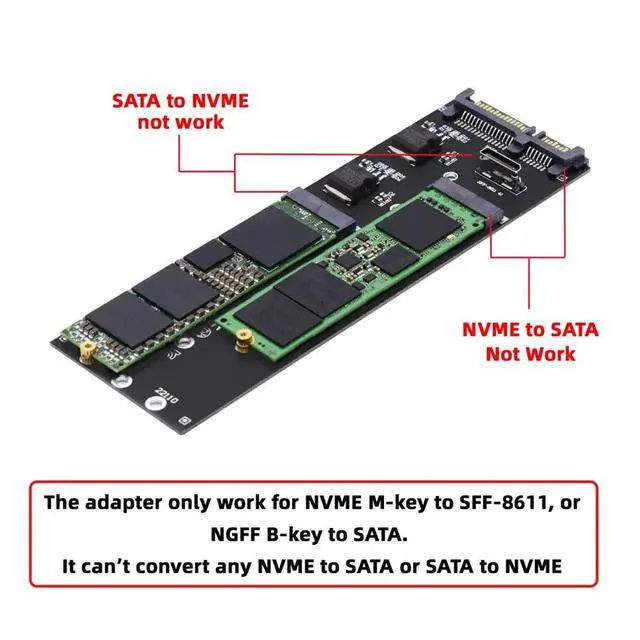

Oculink SFF-8612 8611 to U. 2 Kit M-Key to NVME PCIe SSD and NGFF to SATA Adapter for Mainboard Oculink 4x connectors are internal and external small form factor PCI-E connectors and cables optimized for the client and market. ^^ Supports M. 2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA The card can not work for NVME M-key SSD to SATA host, it can't work for NGFF B-key SD to oculink host either. ^^ It can only work for NVME M-key SSD to oculink or NGFF B-key SD to SATA.

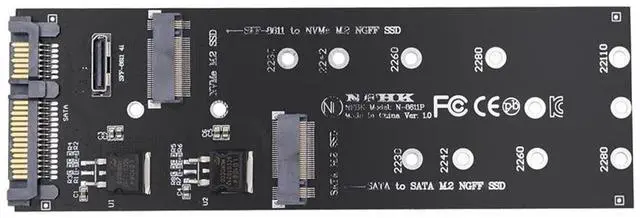

Hyper Kit Storage controller, Ultra PCI-E Card (PCIe 3.0 x4), The card work for PCI-E SSD. (Not work for SAS or Slimeline SAS HD) ^^ This U. 2 M. 2 converter enables two different usage applications. 1. One M. 2 PCIe SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5 inch HDD. The converter can be installed into the system internally through the SFF-8611/8612 oculink interface. ^^ 2. One M. 2 SATA SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5 inch HDD.

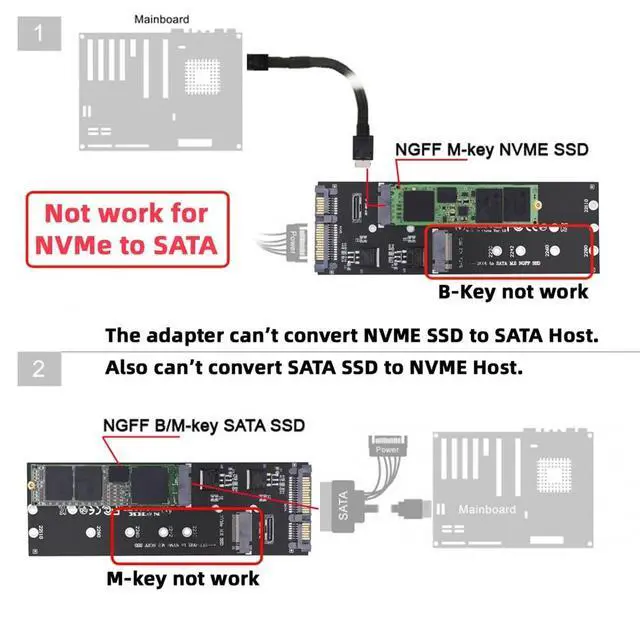

The converter can be installed into the system internally through the SATA 22pin interface. 3. It can't convert NVME to SATA, also can't covert NGFF/SATA to Oculink.
