Xiwai 20Gbps Type-C USB3.2 Gen2 USB4 to M-Key M.2 NVMe NGFF SATA 2242/2230mm SSD Enclosure PCBA Adapter RTL9220 Chipset

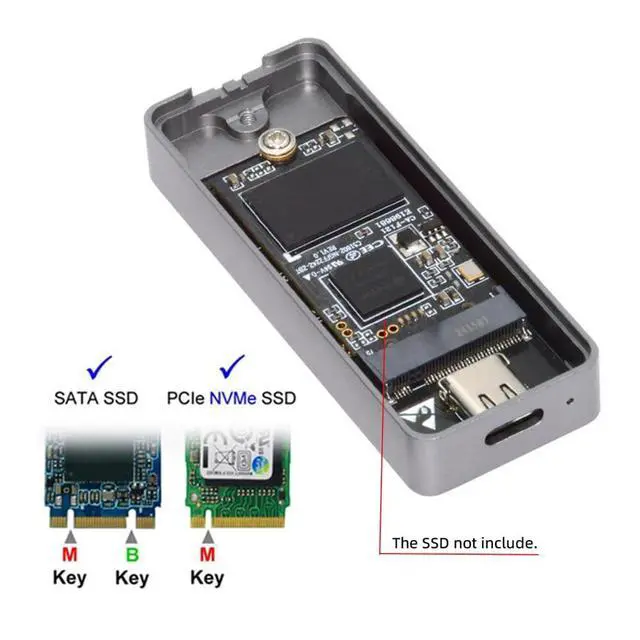

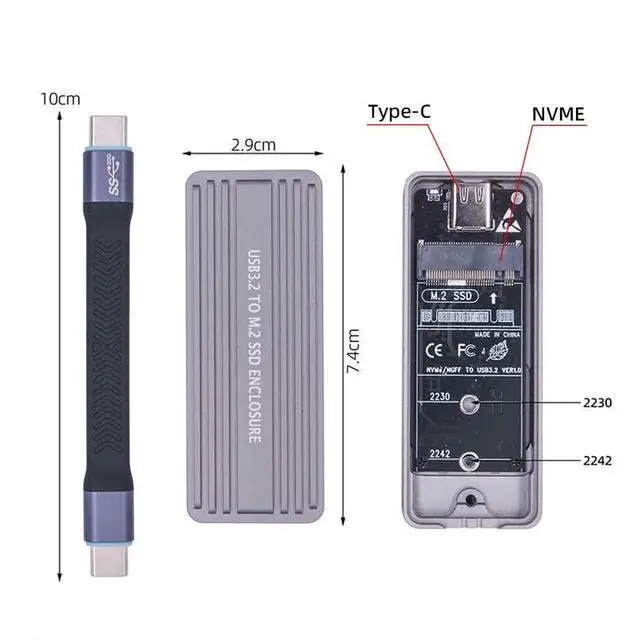

- The item included one Enclosure,Cable,Screwdriver. (The SSD not include.). Fit for 2230/2242mm NGFF/NVME M.2 SSD.(The NGFF SSD is not included)
- The RTL9220 chipset is a USB bridge that combines a USB device with both a PCIe controller and a SATA controller. Via the PEDET interface of M.2 mechanical, it can auto switch USB-to-PCIe mode, or USB-to-SATA mode.

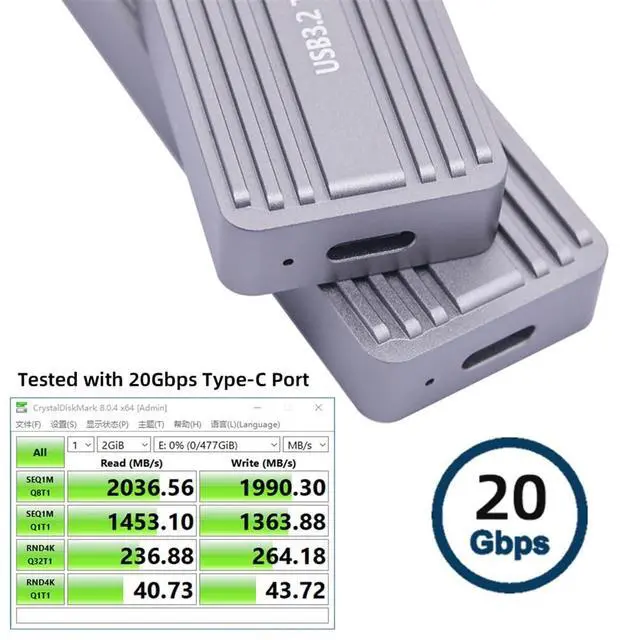

- In USB-to-PCIe mode, the RTL9220 supports PCIe Gen3 x2. For PCIe, it provides up to USB3.2 Gen2x2 (20Gbps) bandwidth.The PCIe host supports NVM Express.
- In USB-to-SATA mode, the RTL9220 supports SATA host in Gen3 speed. For SATA, it provides up to 6Gbps bandwidth.
- It supports a dynamically switching power state with NVMe/SATA/USB power management for power saving mode.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The item included one Enclosure, Cable, Screwdriver. (The SSD not include. ). Fit for 2230/2242mm NGFF/NVME M. 2 SSD. (The NGFF SSD is not included) ^^ The RTL9220 chipset is a USB bridge that combines a USB device with both a PCIe controller and a SATA controller. Via the PEDET interface of M. 2 mechanical, it can auto switch USB-to-PCIe mode, or USB-to-SATA mode. ^^ In USB-to-PCIe mode, the RTL9220 supports PCIe Gen3 x2. For PCIe, it provides up to USB 3.2 Gen2x2 (20Gbps) bandwidth.
The PCIe host supports NVM Express. ^^ In USB-to-SATA mode, the RTL9220 supports SATA host in Gen3 speed. For SATA, it provides up to 6Gbps bandwidth. ^^ It supports a dynamically switching power state with NVMe/SATA/USB power management for power saving mode.
The PCIe host supports NVM Express. ^^ In USB-to-SATA mode, the RTL9220 supports SATA host in Gen3 speed. For SATA, it provides up to 6Gbps bandwidth. ^^ It supports a dynamically switching power state with NVMe/SATA/USB power management for power saving mode.
