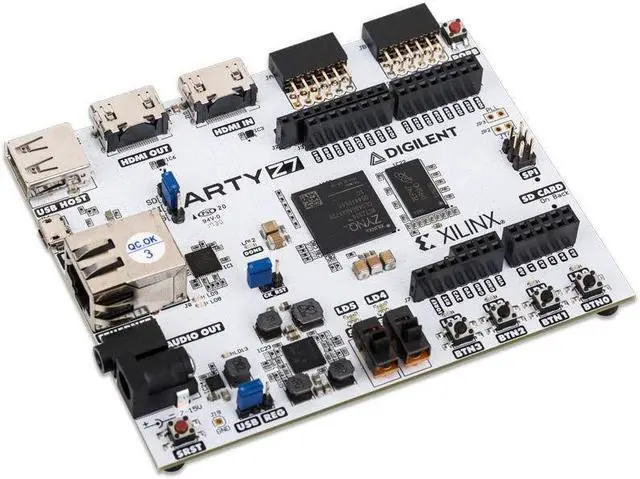

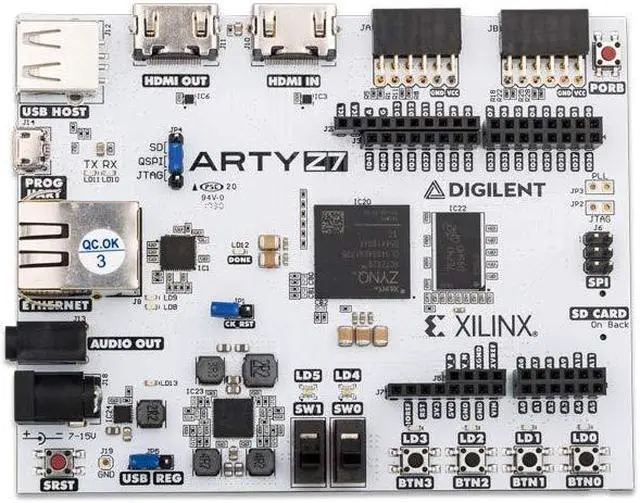

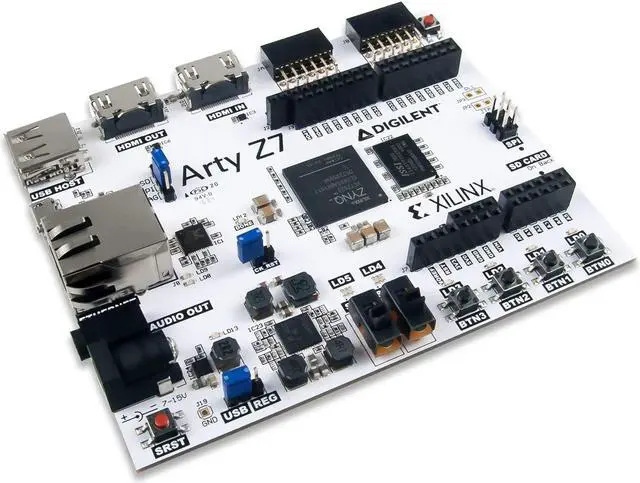

Digilent Arty Z7: AP SoC Zynq-7000 Development Board for Makers and Hobbyists (Art Z7-10)

The Digilent Arty Z7 is a ready-to-use development platform designed around the Zynq-7000 All Programmable System-on-Chip (AP SoC) from Xilinx. The Zynq-7000 architecture tightly integrates a dual-core, 650 MHz ARM Cortex-A9 processor with Xilinx 7-series Field Programmable Gate Array (FPGA) logic. This pairing grants the ability to surround a powerful processor with a unique set of software defined peripherals and controllers, tailored by you for whatever application is being conquered. The design process is very straightforward and provides a systematic path between defining your custom peripheral set and bringing it's functionality up to a Linux OS running on the processor.

Digilent provides a number of materials and resources for the Arty Z7 that will get you up and running with this process quickly.

Arty Z7-10 FPGA part: XC7Z010-1CLG400C 1
MSPS On-chip ADC: Yes
Processor: Dual ARM Cortex A9 Look-up Tables (LUTs): 17, 600
Flip-flops: 35, 200
Block RAM: 270
KB Clock Management Tiles: 2 Available Shield I/O: 26
Arty Z7-20 FPGA part: XC7Z020-1CLG400C 1
MSPS On-chip ADC: Yes
Processor: Dual ARM Cortex A9 Look-up Tables (LUTs): 53, 200
Flip-flops: 106, 400
Block RAM: 630
KB Clock Management Tiles: 4
Available Shield I/O: 49
