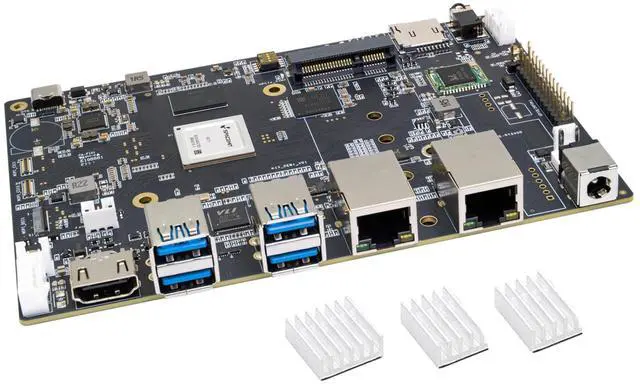

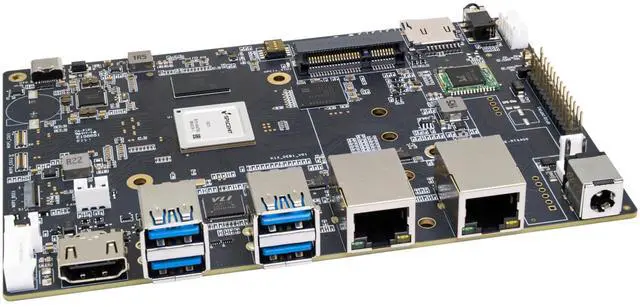

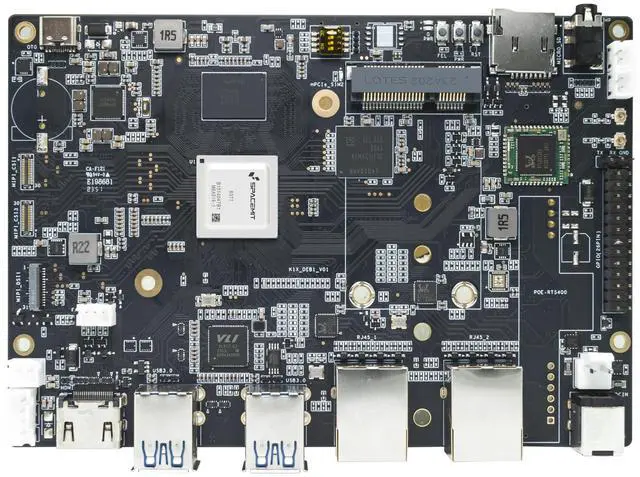

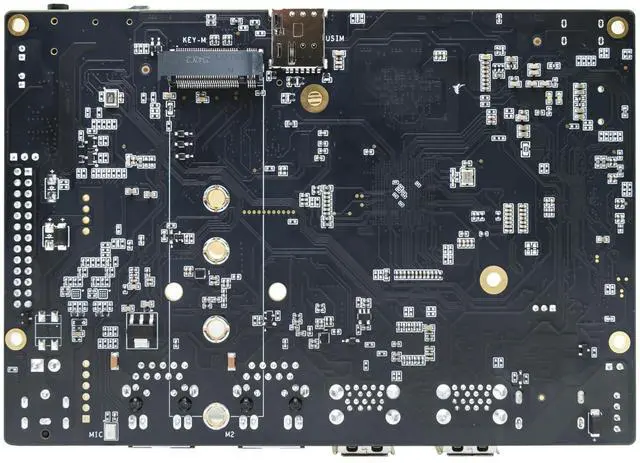

Banana Pi BPI-F3 8-Core RISC-V K1 Chip SBC, 2.0TOPS AI Performance CPU Single Board Computer, with 2X GbE Ethernet for AI Edge Computing, NAS Network Storage and Laptop Alternatives (16+128GB Bundle1)
- [Fully Upgraded CPU Version] Banana Pi BPI-F3 RISC-V AI linux single baord computer is powered by SpacemiT 8-core RISC-V chip with integrated high-performance 2.0TOPs AI CPU, and the single-core general-purpose computing power is equivalent to 1.3 times of Cortex-A55. It supports 32-bit LPDDR4 2GB/4GB/8GB/16GB RAM, 8/16/32/128GB eMMC flash, 4M SPI NOR and 32M SPI NAD on board, and it also supports wireless dual-band 2.4G/5G WiFi and Bluetooth 4.2.

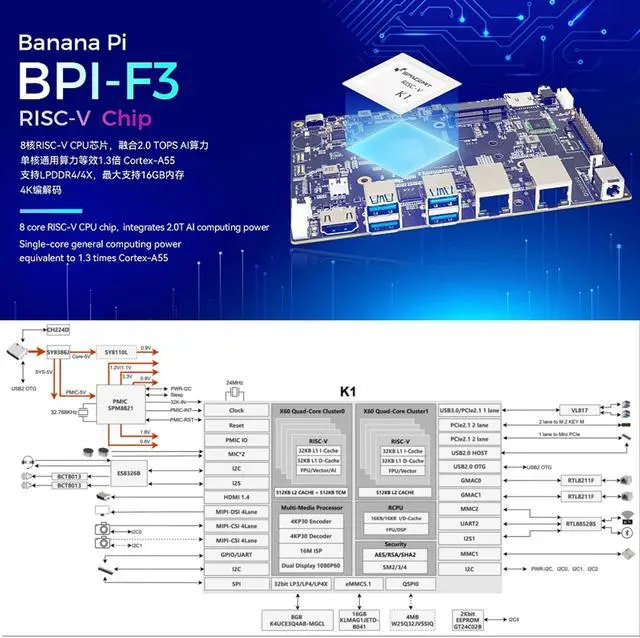

- [SpacemiT K1 RISC-V CPU] Based on the RISC-V open instruction set architecture, it is an energy-saving and versatile AI processor platform that supports open source ecological computing capabilities. It provides 50KDMIPS CPU computing power and 2.0TOPS AI computing power. The computing power efficiency is 20% higher than ARM A55. It supports RVA22 Profile and 256bit RVV 1.0 standard RISC-V CPU, and integrates PCIe, USB, GMAC, SPI and other interfaces.
- [Support 4K Video Display] Banana Pi BPI-F3 K1 RISC-V Single Board Computer
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
-Specification-
CPU: SpacemiT K1 8 core RISC-V chip
AI: 2.0T ops from RlSC-V Core
Memory: 16GB LPDDR4 (Supports up to 8G LPDDR4)
Storage: 128GB eMMC flash. optional 4M SPI NOR, 32M SPI NAND
SD card: MicroSD card slot (Greater than 256MB)
Wireless Network: 2.4G /5G WiFi and Bluetooth 4.2
Ethernet: 2x GbE Ethernet port(supports PoE with add-on PoE HAT)
HDMI: 1x full-size HDMI digital Audio output(HDMI 1.4, up to 1080p@60fps )
Audio: Speaker, Mic, Earphone
Camera: MIPI-CSI, Dual-shot support
USB: 4x USB 3.0 Type-A HOST, 1x USB 2.0 Type-C OTG
PCIe: PCIE 2.1 2lane * 2.
PCIEB 2lane connect M. 2 KEY M ( Support JMB582 expansion card to SATA )
PCIEC 1lane connect MINI PCIE
GPIO: 26-pin header
Buttons: Reset, Power and Burn
IR: IR-Rx
LED: Power Status
Power: DC in and TYPE-C in
Size: 148x100 mm
Weight: 200g
-OS Support-
Linux: Bianbu
Armbian
-Package Content-
Show as picture
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message monica#smartfire. cn (f----@) skype: monica_9122.
Please leave the message in our forum by forum. youyeetoo. com/.
CPU: SpacemiT K1 8 core RISC-V chip
AI: 2.0T ops from RlSC-V Core
Memory: 16GB LPDDR4 (Supports up to 8G LPDDR4)
Storage: 128GB eMMC flash. optional 4M SPI NOR, 32M SPI NAND
SD card: MicroSD card slot (Greater than 256MB)
Wireless Network: 2.4G /5G WiFi and Bluetooth 4.2
Ethernet: 2x GbE Ethernet port(supports PoE with add-on PoE HAT)
HDMI: 1x full-size HDMI digital Audio output(HDMI 1.4, up to 1080p@60fps )
Audio: Speaker, Mic, Earphone
Camera: MIPI-CSI, Dual-shot support
USB: 4x USB 3.0 Type-A HOST, 1x USB 2.0 Type-C OTG
PCIe: PCIE 2.1 2lane * 2.
PCIEB 2lane connect M. 2 KEY M ( Support JMB582 expansion card to SATA )
PCIEC 1lane connect MINI PCIE
GPIO: 26-pin header
Buttons: Reset, Power and Burn
IR: IR-Rx
LED: Power Status
Power: DC in and TYPE-C in
Size: 148x100 mm
Weight: 200g
-OS Support-
Linux: Bianbu
Armbian
-Package Content-
Show as picture
-Technical Support-
Please click "WayPonDEV" and ask a question.
Please leave the message monica#smartfire. cn (f----@) skype: monica_9122.
Please leave the message in our forum by forum. youyeetoo. com/.
